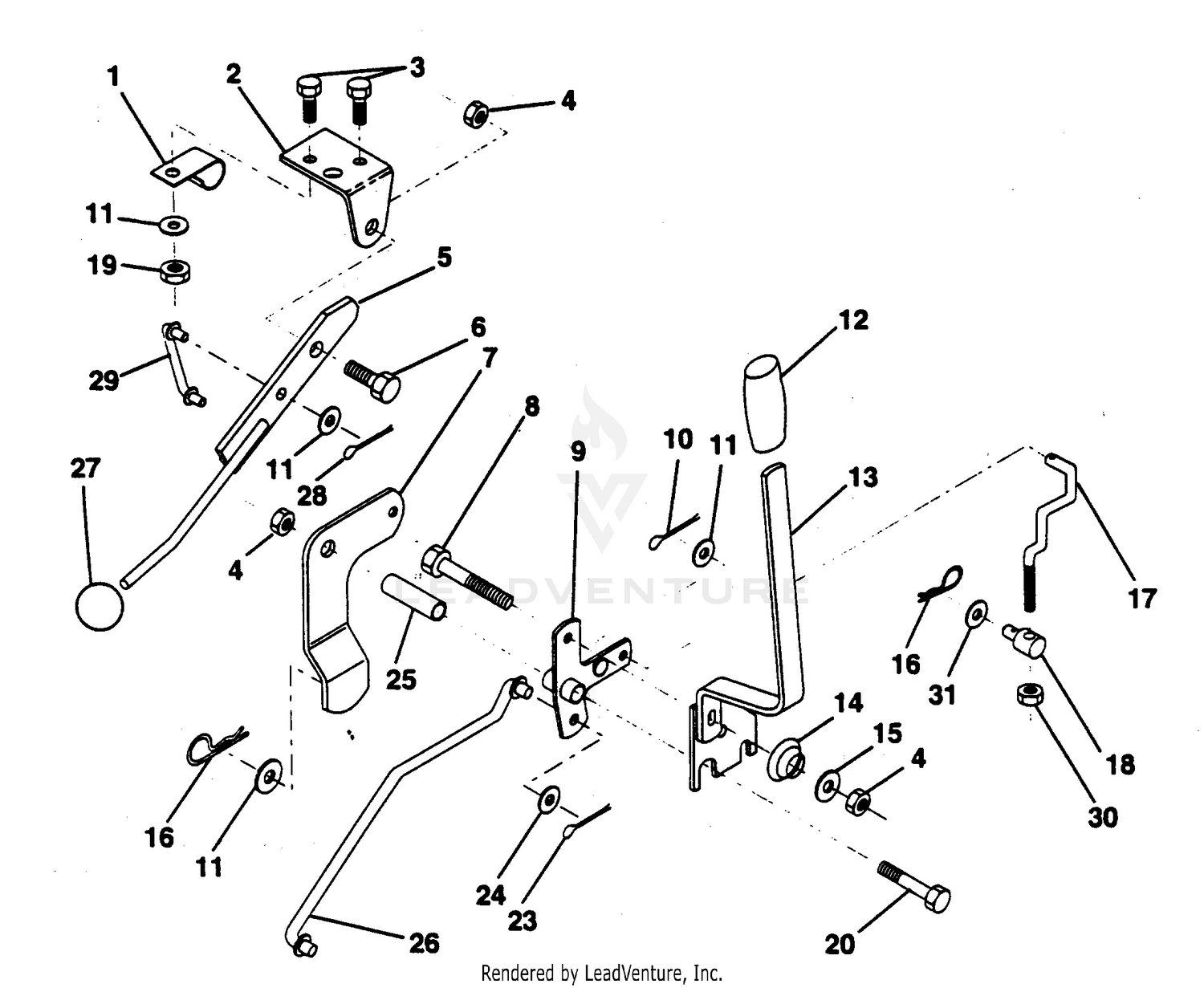

| Ref | Part Number | Description |
|---|
| 1 |
532126470 |
Clip, Insulated Price: $3.99 |
| 1 |
99-2412-03 |
ROD AND CLAMP ASM Price: $599.97 |
| 2 |
323-9 |
SCREW-HH Price: $1.29 |
| 2 |
532122018 |
Bracket, Mower Clutch Price: $2.38 |
| 3 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 3 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 874780408. Price: $1.99 |
| 4 |
71-4740-03 |
RH TIE ROD END ASM This part replaces 71-4740. Price: $163.79 |
| 4 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 5 |
532145187 |
Assembly, Clutch Lever This part replaces 532123417. Price: $5.69 |
| 6 |
532106451 |
Bolt, Shoulder Price: $2.99 |
| 7 |
532135371 |
Assembly, Mower Clutch Arm Price: $7.93 |
| 8 |
874760636 |
Bolt, Hex 3/8-16 UNC x 2-1/4 Price: $2.99 |
| 9 |
532121930 |
Assembly, Bellcrank Lift Price: $10.99 |
| 10 |
876020412 |
Pin, Cotter 1/8 x 3/4 Price: $3.99 |
| 11 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 12 |
532131861 |
Grip, Handle Price: $3.99 |
| 13 |
532139352 |
Assembly, Lift Handle Price: $15.88 |
| 14 |
532123496 |
Spring, Compression Price: $2.99 |
| 15 |
734117201 |
WASHER This part replaces 819131212. Price: $1.99 |
| 16 |
532004921 |
Retainer Spring This part replaces 532124961. Price: $3.99 |
| 17 |
532127359 |
Link, Front Lift Price: $15.99 |
| 18 |
532142028 |
Trunnion Adj 94 This part replaces 532133205. Price: $2.99 |
| 19 |
873680400 |
Nut, Crownlock 1/4-20 Price: $2.69 |
| 20 |
874760644 |
Bolt, Fin. Hex 3/8-16 UNC x 2-3/4 Price: $3.99 |
| 23 |
876020416 |
Pin, Cotter 1/8 x 1 Price: $3.99 |
| 24 |
532052160 |
Washer This part replaces 819171612. Price: $3.99 |
| 25 |
532121933 |
Tube, Spacer Price: $4.28 |
| 26 |
532141470 |
Rod, Mower Lift Price: $14.65 |
| 27 |
532106932 |
Knob Price: $2.99 |
| 28 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 29 |
532131655 |
Link, Mower Clutch Price: $4.99 |
| 30 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
