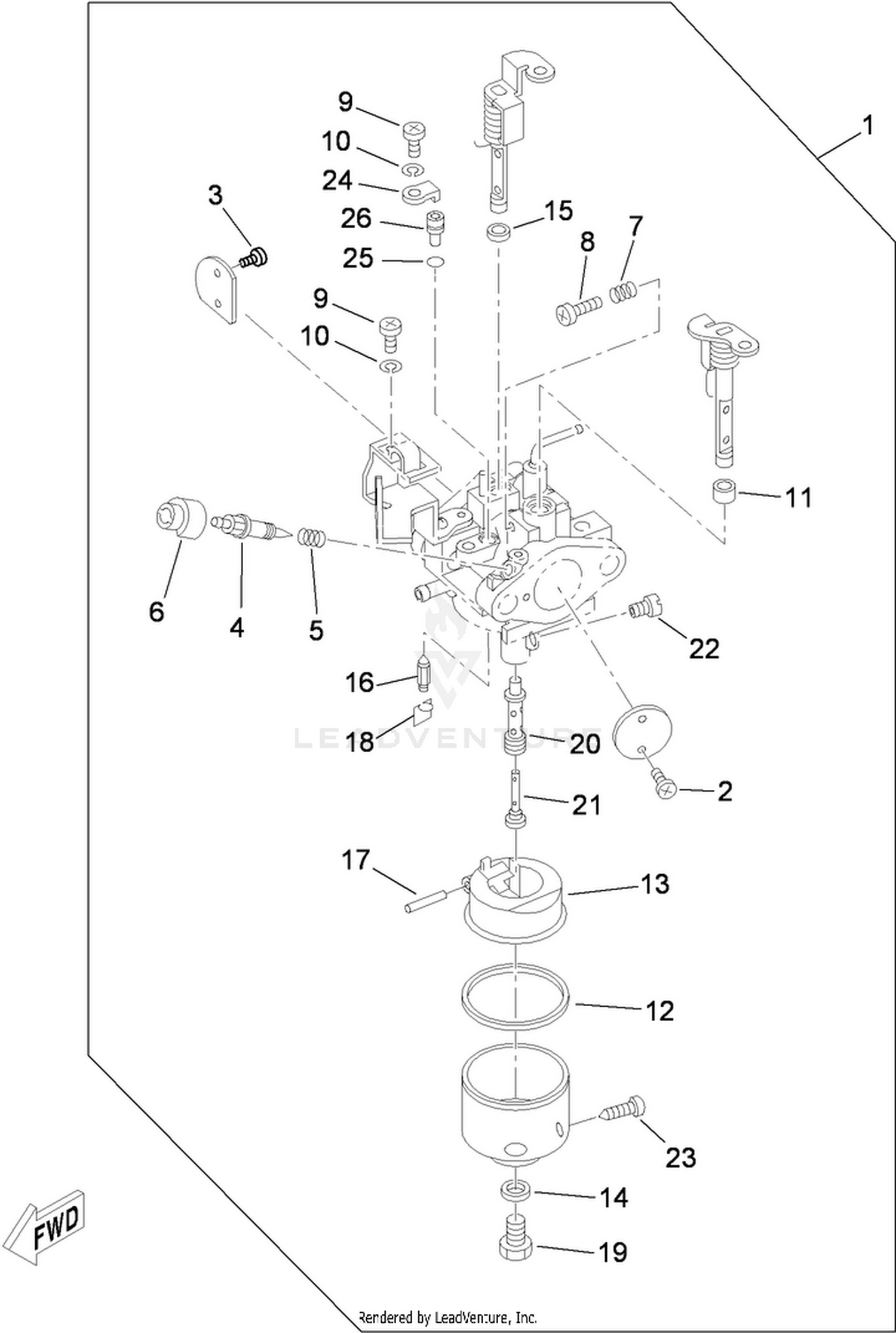

Carburetor Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-5647 | CARBURETOR ASM Price: $463.46 |
| 2 | 120-5648 | SCREW Price: $5.05 |
| 3 | 120-5649 | SCREW-ROD Price: $13.12 |
| 4 | 120-5650 | SCREW-ADJUSTING, PILOT Price: $60.44 |
| 5 | 120-5651 | SPRING Price: $19.10 |
| 6 | 120-5652 | CAP Price: $17.35 |
| 7 | 120-5653 | SPRING Price: $8.38 |
| 8 | 120-5654 | SCREW-THROTTLE Price: $7.28 |
| 9 | 120-5655 | SCREW-SPH Price: $7.21 |
| 10 | 120-5656 | WASHER-SPRING Price: $1.95 |
| 11 | 120-5657 | WASHER Price: $64.22 |
| 12 | 120-5658 | GASKET-CHAMBER, FLOAT Price: $22.35 |
| 13 | 120-5659 | FLOAT Price: $23.60 |
| 14 | 120-5660 | GASKET Price: $15.61 |
| 15 | 120-5661 | SEAL Price: $2.59 |
| 16 | 120-5662 | NEEDLE ASM Price: $59.85 |
| 17 | 120-5663 | PIN-FLOAT Price: $34.27 |
| 18 | 120-5664 | CLIP Price: $30.49 |
| 19 | 120-5665 | BOLT-HOLDING Price: $7.28 |
| 20 | 120-5666 | NOZZLE-MAIN Price: $54.41 |
| 21 | 120-5667 | PIPE-BLEED, MAIN Price: $46.04 |
| 22 | 120-5668 | JET-MAIN (115) Price: $35.48 |
| 23 | 120-5669 | PLUG-DRAIN Price: $16.53 |
| 24 | 120-5670 | PLATE Price: $7.06 |
| 25 | 120-5671 | O-RING Price: $29.42 |
