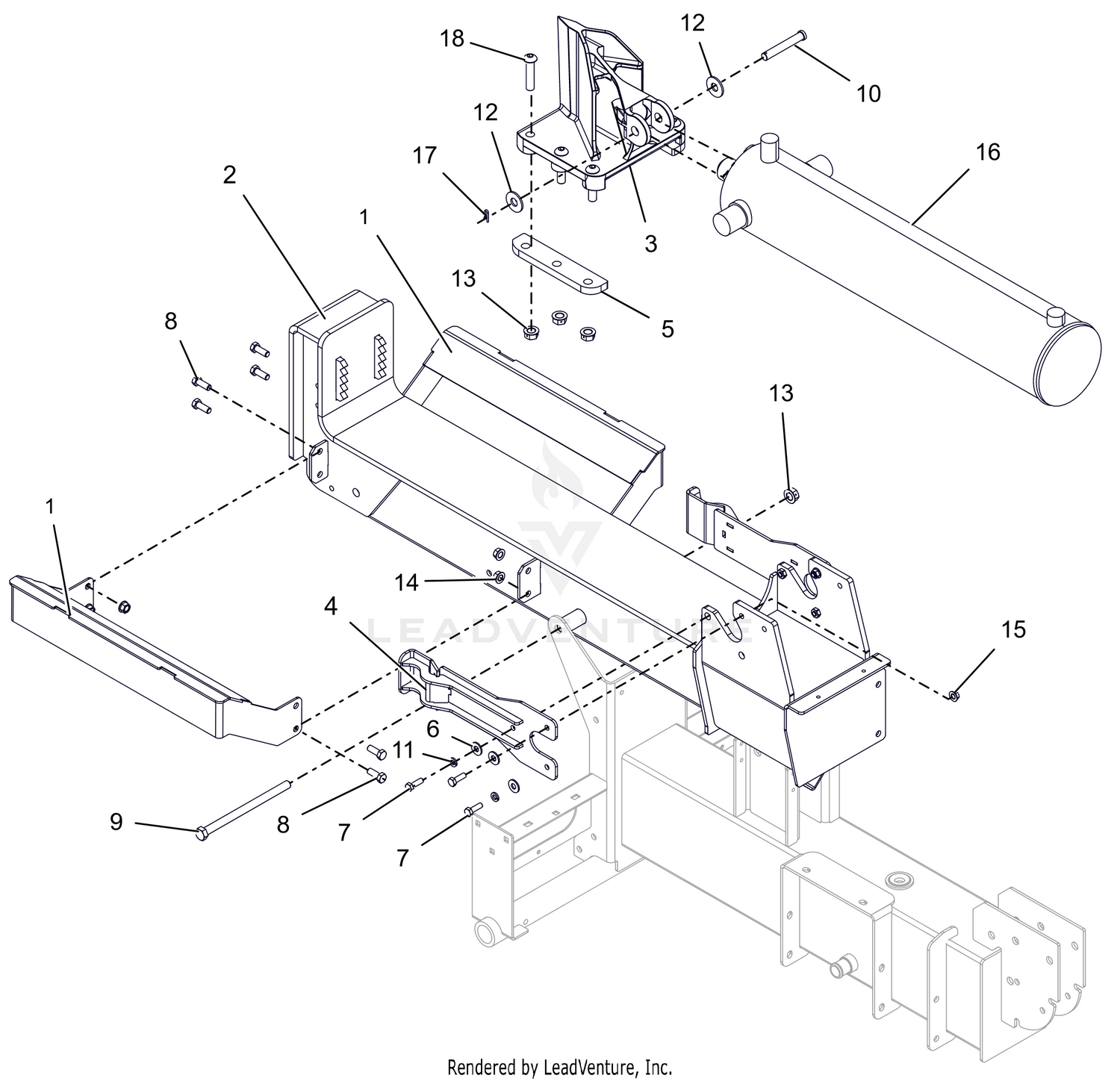

| Ref | Part Number | Description |
|---|
| 1 |
04590851 |
WLDMT, CRADLE, LOG SPLITTER Price: $132.95 |
| 1 |
69-9560-01 |
HOUSING-CONTROL Price: $199.96 |
| 2 |
04740951 |
WLDMT, BEAM - 27/34T SPLITTER Price: $448.95 |
| 2 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 3 |
04981700 |
WEDGE-LOG SPLITTER-MACHINED Price: $388.95 |
| 3 |
80-9330 |
AUDIO ALARM ASM Price: $137.61 |
| 4 |
04861459 |
WLDMT, PLATE - STRIPPER Price: $112.45 |
| 4 |
323-4 |
SCREW-HH Price: $1.02 |
| 5 |
05024251 |
RETAINER-WEDGE Price: $20.45 |
| 5 |
98-1487 |
DECAL-FUSES Price: $19.86 |
| 6 |
06401023 |
WSHR,FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 6 |
69-6260 |
MAGNET Price: $58.32 |
| 7 |
05901701 |
BLT,HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 7 |
32105-12 |
SCREW Price: $2.19 |
| 8 |
05901711 |
BLT,HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 8 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 9 |
05902023 |
BLT, HEX .50-13X7.50 G5 ZCC This part replaces 05978200. Price: $7.45 |
| 10 |
01215000 |
PIN-CLEVIS .500 X 3.250 Price: $2.95 |
| 11 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC This part replaces 06307400. Price: $0.45 |
| 11 |
3290-133 |
SCREW Price: $1.19 |
| 12 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 12 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 13 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC This part replaces 06530008. Price: $0.95 |
| 13 |
69-7040 |
HOLDER-CUP Price: $57.78 |
| 14 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 14 |
321-3 |
SCREW-HH Price: $0.28 |
| 15 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 15 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 16 |
51700700 |
CYLINDER, 5' W/DECALS Price: $873.95 |
| 16 |
71-2430-03 |
REAR PLATE ASM Price: $54.89 |
| 17 |
06944800 |
CLIP, SPRING Price: $0.95 |
| 17 |
71-4130 |
SUPPORT-CONTROL Price: $347.75 |
| 18 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 19 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 21 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 22 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 23 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 24 |
67-7160 |
BLOCK-FUSE Price: $18.75 |
| 25 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 26 |
69-8210-03 |
SUPPORT-COVER Price: $47.02 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 32 |
95-0832 |
DECAL-SERVICE Price: $70.38 |
| 32 |
99-4416 |
DECAL-SERVICE Price: $41.31 |
| 33 |
109355 |
FUSE-BLADE, 15 AMP This part replaces 218-581. Price: $3.09 |
| 34 |
92-8661 |
TAB Price: $4.04 |
| 35 |
3229-8 |
SCREW-CARR Price: $2.99 |
| 36 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 37 |
85-4491 |
LIGHT-INDICATOR (INCLUDES LAMP) Price: $173.84 |
| 38 |
219-19 |
LAMP-GREEN Price: $47.43 |
| 39 |
3220-24 |
NUT-HEX Price: $0.96 |
| 40 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
