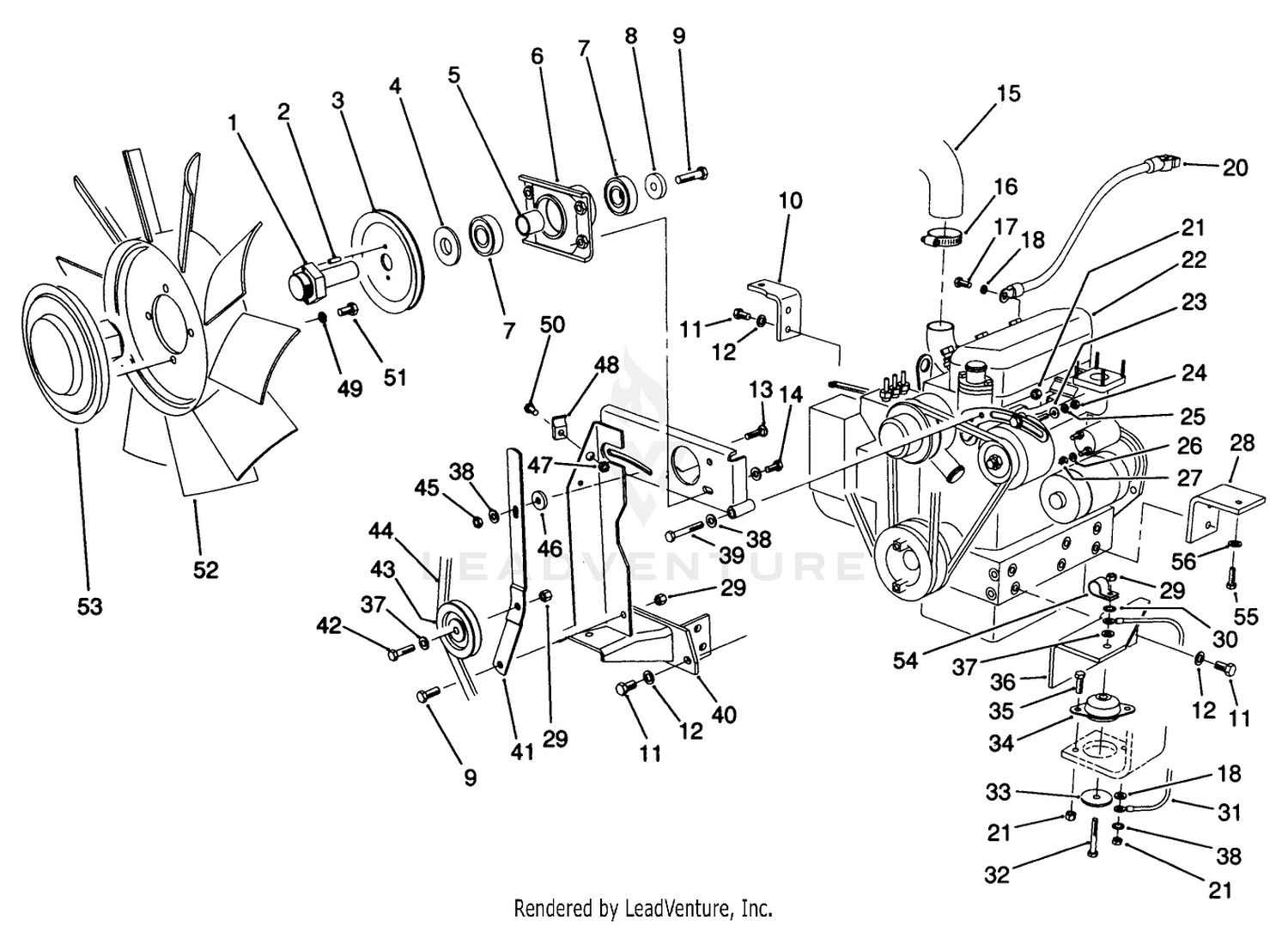

| Ref | Part Number | Description |
|---|
| 1 |
75-6380 |
SHAFT-FAN Price: $141.82 |
| 2 |
32121-2 |
PIN-ROLL, SLOTTED Price: $0.25 |
| 3 |
75-6390 |
FAN PULLEY Price: $50.20 |
| 4 |
47-0110 |
SPACER-SPINDLE Price: $1.42 |
| 5 |
75-5310 |
SPACER-BEARING Price: $4.41 |
| 6 |
75-4450 |
HUB Price: $205.03 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 8 |
67-1630 |
SPACER Price: $28.84 |
| 9 |
323-6 |
SCREW-HH Price: $0.66 |
| 10 |
71-2910-03 |
RH REAR ENGINE ANGLE This part replaces 71-2910. Price: $22.46 |
| 11 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 12 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
75-2460 |
HOSE - AIR CLEANER Price: $64.22 |
| 16 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 17 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 18 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 20 |
75-1360 |
DISCONTINUED Price: Call Us |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
75-0900 |
DISCONTINUED XREF Price: Call Us |
| 23 |
5-3637 |
SPACER Price: $2.23 |
| 24 |
48-7880 |
NUT-HEX This part replaces 43-5970. Price: $0.25 |
| 25 |
43-5920 |
WASHER-LOCK, SPRING Price: $0.25 |
| 26 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 27 |
57-6390 |
NUT-JAM Price: $0.89 |
| 28 |
75-2830 |
L/H REAR ENG BRKT *B Price: $22.38 |
| 29 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 30 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 31 |
70-8220 |
GROUND CABLE Price: $12.98 |
| 32 |
323-11 |
SCREW-HH Price: $1.08 |
| 33 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 34 |
63-7140 |
MOUNT-SHOCK, ENGINE Price: $54.67 |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 36 |
66-2320-03 |
LH FRONT MOUNT ASM This part replaces 66-2320. Price: $62.36 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 38 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 39 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 40 |
75-4220 |
DISCONTINUED Price: Call Us |
| 41 |
63-6720-03 |
IDLER LEVER This part replaces 63-6720. Price: $66.34 |
| 42 |
323-8 |
SCREW-HH Price: $1.20 |
| 43 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 44 |
75-1380 |
V-BELT, FAN Price: $40.41 |
| 45 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 46 |
27-9560 |
SPACER Price: $3.87 |
| 47 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 48 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 49 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 50 |
321-4 |
SCREW-HH Price: $0.99 |
| 51 |
322-2 |
SCREW-HH Price: $0.69 |
| 52 |
75-3780 |
FAN-ENGINE Price: $367.12 |
| 53 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 54 |
2412-126 |
R-CLAMP Price: $2.51 |
| 55 |
323-9 |
SCREW-HH Price: $1.29 |
