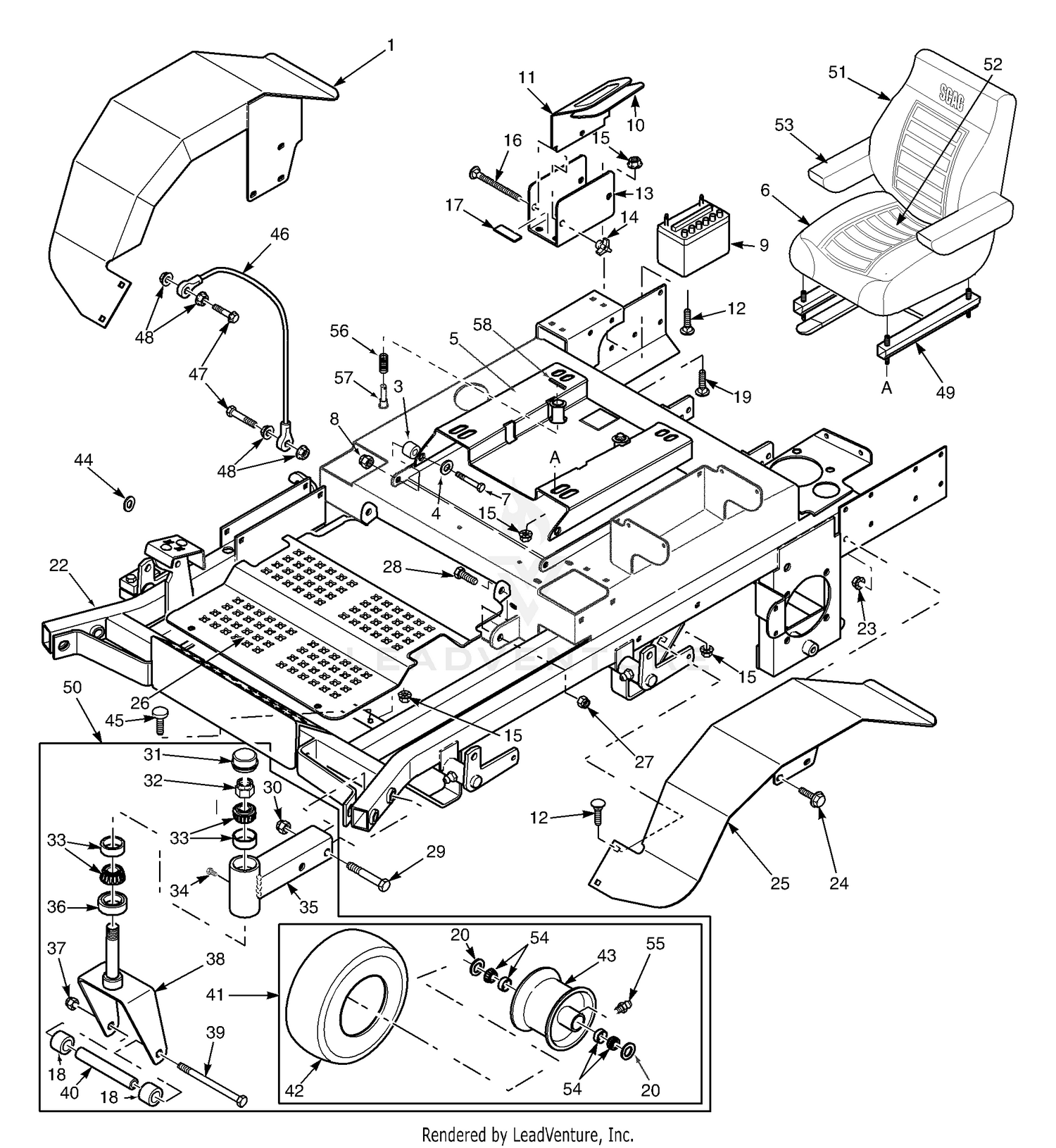

| Ref | Part Number | Description |
|---|
| 1 |
451481 |
Fender Weldment, RH Price: Call Us |
| 2 |
04001-09 |
Bolt, Hex Head, 5/16-18 x 1, Zinc Price: Call Us |
| 3 |
43606 |
Spacer Price: Call Us |
| 4 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 5 |
451448 |
Seat Plate Weldment Price: Call Us |
| 6 |
482597 |
Seat Assembly w/armrest Price: Call Us |
| 7 |
04001-45 |
Bolt, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 8 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 9 |
48015 |
Battery Price: Call Us |
| 10 |
48903 |
Pad, Battery Cover Price: Call Us |
| 11 |
421274 |
Cover, Battery Price: Call Us |
| 12 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 13 |
423308 |
Plate, Battery Box Price: Call Us |
| 14 |
04029-01 |
Wing Nut, 1/4-20 x 3/4" Price: Call Us |
| 15 |
04019-03 |
Nut, Hex Serrated Flange 5/16-18 Price: Call Us |
| 16 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 17 |
48661 |
Rubber Pad Price: Call Us |
| 18 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 19 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 20 |
482622 |
Seal Price: Call Us |
| 21 |
04021-09 |
Lock Nut, 3/8-16, Elast. Stop Price: Call Us |
| 22 |
461991 |
Main Frame This part replaces 461520. Price: Call Us |
| 23 |
04019-04 |
Nut, Hex Serrated Flange 3/8-16 Price: Call Us |
| 24 |
04017-27 |
Screw, Hex Serrated Flange 3/8-16 x 1" Price: Call Us |
| 25 |
451480 |
Fender Weldment, LH Price: Call Us |
| 26 |
423489 |
Foot Plate Price: Call Us |
| 27 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 28 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 29 |
04001-125 |
Bolt, Hex Head 5/8-11 x 4" Price: Call Us |
| 30 |
04021-13 |
Nut, Hex Elastic Stop 5/8-11 Price: Call Us |
| 31 |
481559 |
Cap, Grease Price: Call Us |
| 32 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 33 |
481657 |
Bearing W/Race Price: Call Us |
| 34 |
482028-01 |
Plug, 1/4-28 THD Form Price: Call Us |
| 35 |
451449 |
Extension Weldment, Caster 52A (LH) Price: Call Us |
| 36 |
481025 |
Seal, 2.00 OD. x 1.625 Bore Price: Call Us |
| 37 |
04021-07 |
Nut, Hex Elastic Stop 1/2-13 Price: Call Us |
| 38 |
45934 |
Yoke Weldment, Caster (52A) Price: Call Us |
| 39 |
04001-134 |
Bolt, Hex Head 1/2-13 x 7-1/2" (52A) Price: Call Us |
| 40 |
43581 |
Sleeve, Caster Wheel (52A) Price: Call Us |
| 42 |
481613 |
Tire, 13 x 5.00 4-Ply (52A) Price: Call Us |
| 44 |
04041-07 |
Flatwasher, 3/8"-.391 x .938 x .105 Price: Call Us |
| 45 |
481284 |
Bumper, Rubber Price: Call Us |
| 46 |
48566 |
Cable, Seat Stop Price: Call Us |
| 47 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 48 |
04019-02 |
Nut, Hex Serrated Flange 1/4-20 Price: Call Us |
| 49 |
482502 |
Seat Adjustment, Track Set Price: Call Us |
| 51 |
482614 |
Back Cushion Cover Price: Call Us |
| 52 |
482615 |
Seat Cushion Cover Price: Call Us |
| 53 |
482618 |
Arm Rest, Right Hand Price: Call Us |
| 54 |
482621 |
Bearing w/ Race Price: Call Us |
| 55 |
48114-07 |
Grease Fitting Price: Call Us |
| 56 |
481389 |
Spring, Seat Price: Call Us |
| 57 |
43462 |
Pin Retainer, Spring Price: Call Us |
| 43583 |
Sleeve, |
Caster Wheel (61A, 72A) Price: Call Us 43583 |
| 451416 |
Yoke |
Weldment, Caster (61A & 72A) Price: Call Us 451416 |
| 451450 |
Extension |
Weldment, Caster 52A (RH) & 61A (LH) Price: Call Us 451450 |
| 451451 |
Extension |
Weldment, Caster 61A (RH) Price: Call Us 451451 |
| 451452 |
Extension |
Weldment, Caster 72A (LH) Price: Call Us 451452 |
| 451453 |
Extension |
Weldment, Caster 72A (RH) Price: Call Us 451453 |
| 482616 |
Arm |
Rest Cover Price: Call Us 482616 |
| 482617 |
Arm |
Rest, Left Hand Price: Call Us 482617 |
