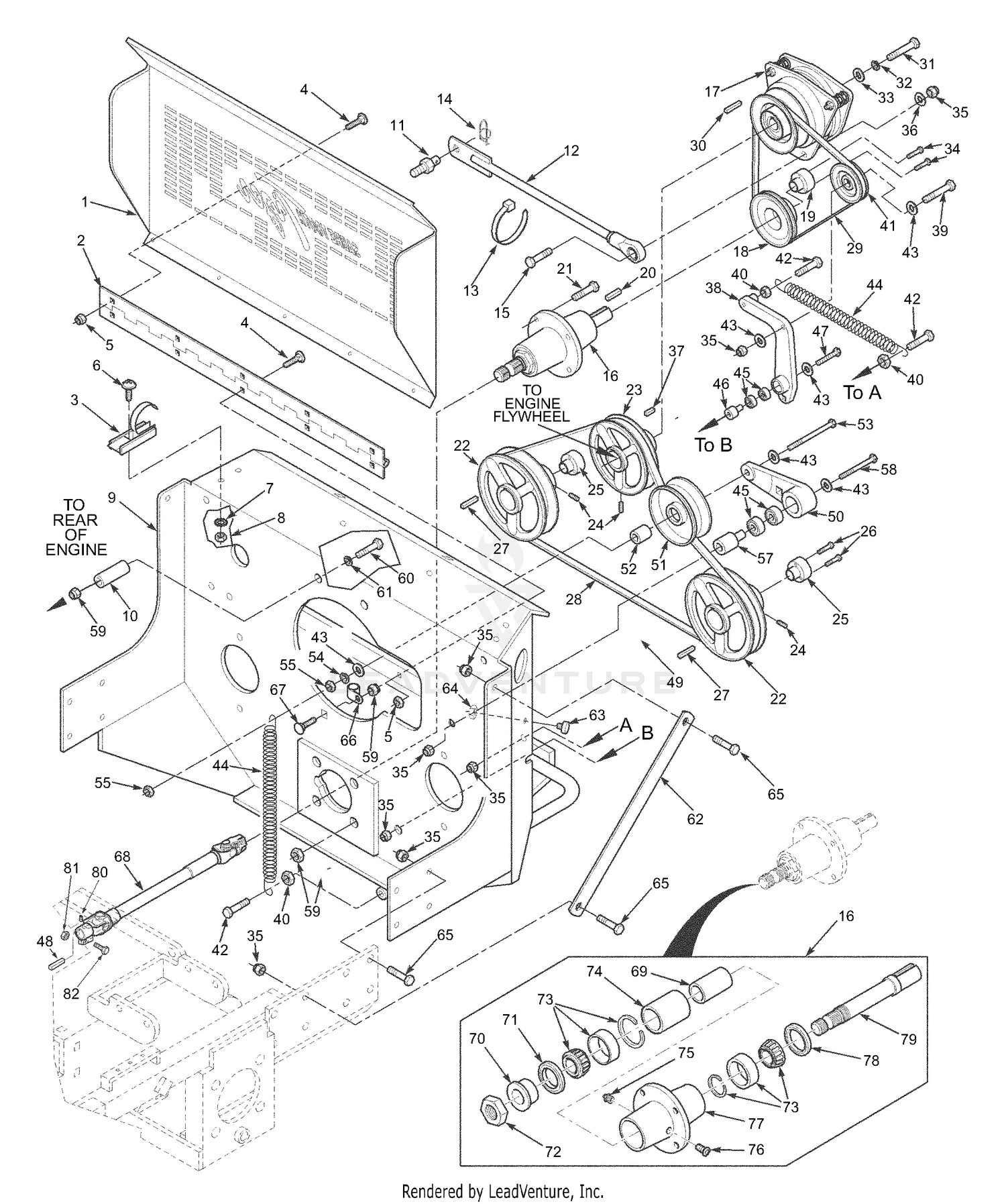

| Ref | Part Number | Description |
|---|
| 1 |
423464 |
Belt Guard, Rear Price: Call Us |
| 2 |
481531 |
Hinge, Rear Belt Guard Price: Call Us |
| 3 |
481309 |
Latch, Hood Price: Call Us |
| 4 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 5 |
04019-02 |
Nut, Serr. Flg. 1/4-20 Price: Call Us |
| 6 |
04010-01 |
Screw, #10-32 x .5, Phillips Head Price: Call Us |
| 7 |
04031-01 |
Lock Washer, #10 Price: Call Us |
| 8 |
04020-01 |
Nut, #10-32 Price: Call Us |
| 9 |
451457 |
Weldment, Pump Mounting Price: Call Us |
| 10 |
43506 |
Spacer, Engine Price: Call Us |
| 11 |
43507 |
Stud, Anti-Rotation Price: Call Us |
| 12 |
482433 |
Linkage Assembly, Anti-Rotation Price: Call Us |
| 13 |
48028-05 |
Tie, Cable Price: Call Us |
| 14 |
04069-01 |
Pin, Rue Price: Call Us |
| 15 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 16 |
461697 |
Spindle Assembly, Deck Drive This part replaces 46977. Price: Call Us |
| 17 |
461827 |
CLUTCH UPGRADE PKG, STT-BSD GT5 This part replaces 461613. Price: Call Us |
| 18 |
481398 |
Pulley, 6.35" dia. Tapered Bore Price: Call Us |
| 19 |
481536 |
Hub, Tapered 1" dia. Price: Call Us |
| 20 |
04063-06 |
Key, 1/4 x 1/4 x 1.5" Price: Call Us |
| 21 |
04001-10 |
Bolt, Hex Head 5/16-18 x 1.25" Price: Call Us |
| 22 |
482752 |
Pulley, 6.25 OD Tapered Bore This part replaces 481883. Price: Call Us |
| 23 |
482791 |
Pulley, 5.45" OD This part replaces 481788. Price: Call Us |
| 24 |
04012-04 |
Set Screw, 5/16-18 x .375" Price: Call Us |
| 25 |
481884 |
Hub, Tapered 17mm Bore Price: Call Us |
| 26 |
04001-01 |
Bolt, Hex Head 1/4-20 x .75" Price: Call Us |
| 27 |
04063-27 |
Key, 5mm x 5mm x 30mm Price: Call Us |
| 28 |
481461 |
Belt, Pump Drive Price: Call Us |
| 29 |
481460 |
Belt, Deck Drive Price: Call Us |
| 30 |
04063-11 |
Key, 1/4 x 1/4 x 2.5" Price: Call Us |
| 31 |
04001-101 |
Bolt, Hex Head 7/16-20 x 2.5" Price: Call Us |
| 32 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 33 |
04041-28 |
Flat Washer 7/16 x .469 x 1.75 x .25" Price: Call Us |
| 34 |
04001-109 |
Bolt, Hex Head 1/4-20 x 1.375" Price: Call Us |
| 35 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 36 |
04041-07 |
Flat Washer 3/8, .391 x .938 x .105" Price: Call Us |
| 37 |
04063-20 |
Key, 1/4 x 1/4 x 1.00" Price: Call Us |
| 38 |
461079 |
Idler Arm Price: Call Us |
| 39 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2.25" Price: Call Us |
| 40 |
04019-04 |
Nut, Serr. Flg. 3/8-16 Price: Call Us |
| 41 |
48181 |
Pulley, PTO Idler Price: Call Us |
| 42 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1.5" Grade 8 Price: Call Us |
| 43 |
04043-04 |
Flat Washer 3/8" Grade 8 Price: Call Us |
| 44 |
481522 |
Spring Price: Call Us |
| 45 |
48224 |
Bearing Price: Call Us |
| 46 |
43576 |
Pivot, Idler - Short Price: Call Us |
| 47 |
04001-145 |
Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us |
| 48 |
04063-20 |
Key, 1/4 x 1/4 x 1" Price: Call Us |
| 49 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1.00" Price: Call Us |
| 50 |
461015 |
Idler Arm Price: Call Us |
| 51 |
483211 |
Idler Pulley, Wheel Drive This part replaces 48198. Price: Call Us |
| 52 |
43277 |
Spacer Price: Call Us |
| 53 |
04001-138 |
Bolt, Hex Head 3/8-16 x 3.75" Grade 8 Price: Call Us |
| 54 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 55 |
04020-04 |
Nut 3/8-16 Price: Call Us |
| 56 |
04021-05 |
Nut, Elastic 3/8-16 Price: Call Us |
| 57 |
43604 |
Pivot, Idler - Long Price: Call Us |
| 58 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 59 |
04021-10 |
Nut, Elastic 5/16-18 Price: Call Us |
| 60 |
04001-49 |
Bolt, Hex Head 5/16-18 x 3.00" Price: Call Us |
| 61 |
04030-03 |
Lock Washer 5/16" Price: Call Us |
| 62 |
422684 |
Brace, Engine Mounting Plate Price: Call Us |
| 63 |
481284 |
Bumper, Rubber Price: Call Us |
| 64 |
04019-03 |
Nut, Serr. Flg. 5/16-18 Price: Call Us |
| 65 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1.00" Price: Call Us |
| 66 |
48030-09 |
Clamp, Wire Price: Call Us |
| 67 |
04003-12 |
Bolt, Carr. 5/16-18 x .75" Price: Call Us |
| 68 |
482438 |
Driveshaft Price: Call Us |
| 69 |
43296 |
Spacer, Inside Price: Call Us |
| 70 |
43297 |
Bushing Price: Call Us |
| 71 |
481025 |
Seal, 2.00 OD x 1.625 Bore Price: Call Us |
| 72 |
481035 |
Nut, 1.06-18 Price: Call Us |
| 73 |
481022 |
Roller Bearing Assembly Price: Call Us |
| 74 |
43312 |
Spacer, Outside Price: Call Us |
| 75 |
48114-04 |
Grease Fitting 1/4-28 Self Tapping Price: Call Us |
| 76 |
48677 |
Relief Fitting Price: Call Us |
| 77 |
43644 |
Spindle Housing This part replaces 43294. Price: Call Us |
| 78 |
481024 |
Seal, 2.00 OD x 1.5 Bore Price: Call Us |
| 79 |
43534 |
Shaft, Spindle Price: Call Us |
| 80 |
04012-08 |
Screw, Set 3/8-16 x 3/8" Price: Call Us |
| 81 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
