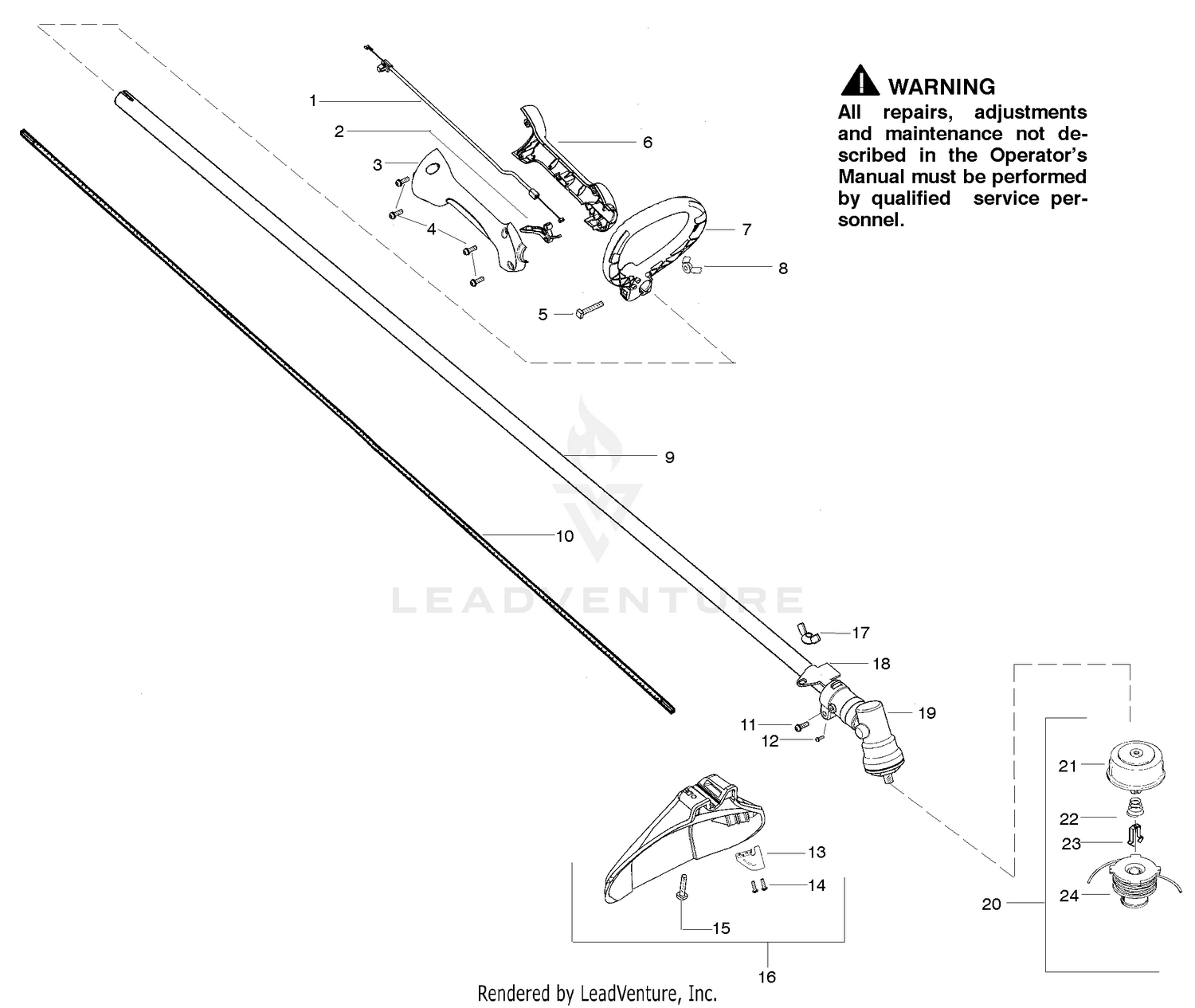

| Ref | Part Number | Description |
|---|
| 1 |
530057991 |
Assy-Throttle Cable Price: $8.99 |
| 1 |
99-8352 |
SWITCH-BACKLAP, MASTER Price: $91.81 |
| 2 |
104-1496 |
HINGE-PIN Price: $13.22 |
| 2 |
530058000 |
Trigger Price: $2.99 |
| 3 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 3 |
530057582 |
Throttle Hsg. (Right) Price: $7.99 |
| 4 |
530015880 |
Screw-Throttle Hsg. Price: $1.99 |
| 4 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 5 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 5 |
530015821 |
Bolt-Handle/Shield Price: $1.99 |
| 6 |
112-6561 |
WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84 |
| 6 |
530057581 |
Throttle Hsg. (Left) Price: $7.99 |
| 7 |
530057587 |
Handle-Assist Price: $6.99 |
| 8 |
104-9296 |
DECAL-CONTROL Price: $27.94 |
| 8 |
530401992 |
Wingnut This part replaces 530016152. Price: $2.99 |
| 9 |
530071661 |
Assy-Drive Shaft Hsg. Price: $23.99 |
| 9 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 10 |
104-9251-03 |
PLATE-INSTRUMENT Price: $95.17 |
| 10 |
530096075 |
Shaft- Flex Price: $6.99 |
| 11 |
233-42 |
KNOB Price: $12.88 |
| 11 |
530016014 |
Screw Price: $1.99 |
| 12 |
530016224 |
Screw- Alignment Price: $1.99 |
| 12 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 13 |
106-4167 |
JOYSTICK BRACKET ASM Price: $202.74 |
| 13 |
530052285 |
Line Limiter Price: $1.99 |
| 14 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 15 |
530015820 |
Bolt Price: $1.99 |
| 17 |
530401992 |
Wingnut This part replaces 530016152. Price: $2.99 |
| 18 |
530096067 |
Bracket-Shield Price: $2.99 |
| 19 |
530096068 |
Assy-Gearbox Price: $34.99 |
| 21 |
3218-3 |
NUT-JAM Price: $0.25 |
| 21 |
530095772 |
Assy-Hub Price: Call Us |
| 22 |
32128-33 |
NUT-HF Price: $0.25 |
| 22 |
530053241 |
Spring-Compression Price: $1.99 |
| 23 |
530401957 |
Clip-Retainer-Head Price: $1.99 |
| 24 |
952711551 |
Accy- Spool w/Line Price: Call Us |
| 26 |
105-7508 |
LEVER-JOYSTICK Price: $53.02 |
| 27 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 28 |
93-7974-03 |
PLATE-BOX, BATTERY Price: $87.76 |
| 29 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 30 |
93-7595 |
BATTERY BOX ASM Price: $83.58 |
| 32 |
105-0114 |
CABLE-BATTERY, POSITIVE Price: $70.97 |
| 33 |
105-0115 |
CABLE-BATTERY, NEGATIVE Price: $70.33 |
| 34 |
93-7968 |
PAD-FOAM Price: $33.52 |
| 35 |
3339-175 |
STRAPPING-WEB This part replaces 94-1445. Price: $18.99 |
| 36 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 37 |
93-7276 |
DECAL-DANGER Price: $15.13 |
