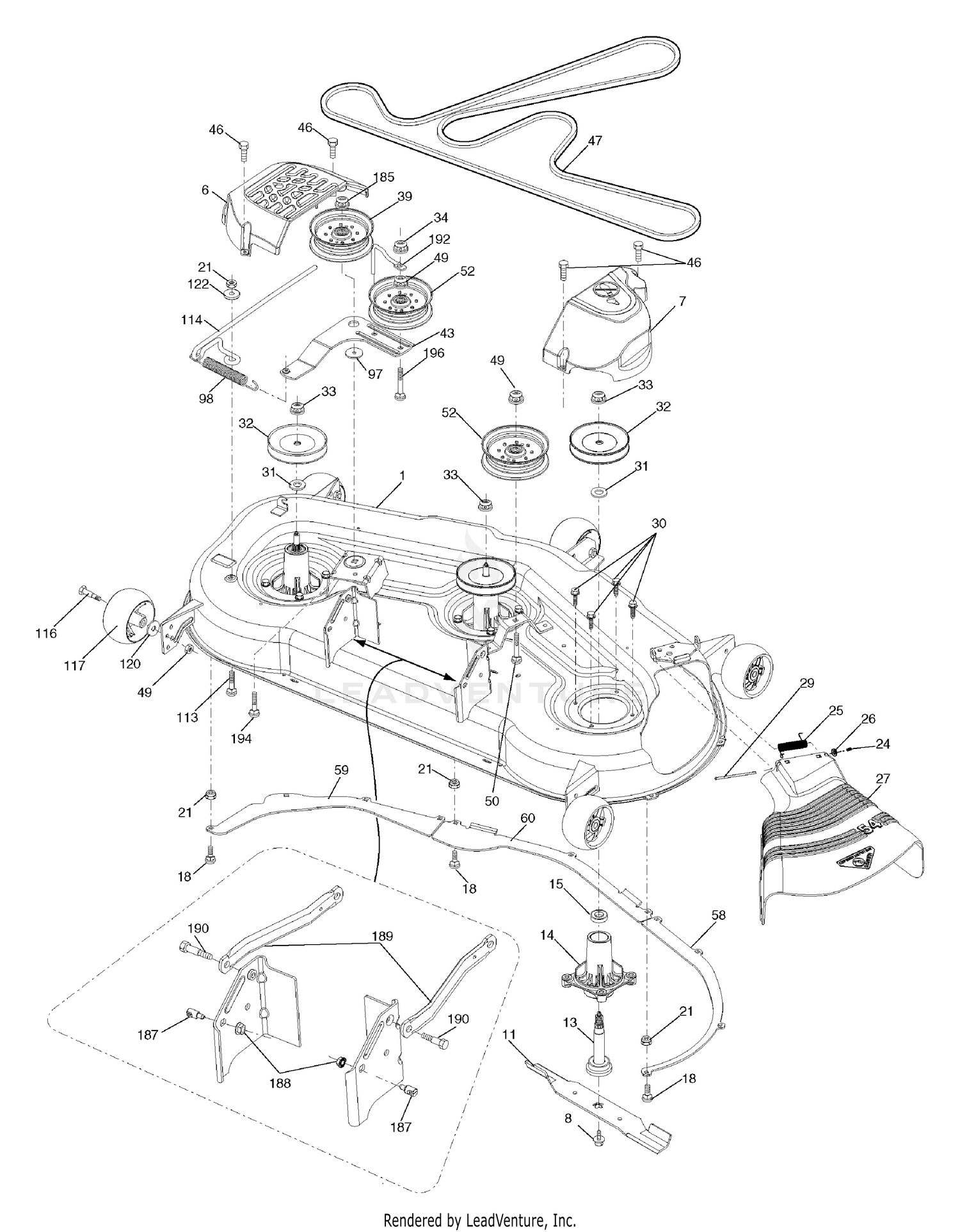

| Ref | Part Number | Description |
|---|
| 1 |
195632X421 |
Deck Weldment Mower Price: Call Us |
| 6 |
196066 |
Cover Mandrel LH Price: Call Us |
| 6 |
99-9079 |
WASHER-FLAT Price: $11.18 |
| 7 |
197181 |
Cover Mandrel RH Price: Call Us |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 11 |
187256 |
Blade Bagging Price: Call Us |
| 13 |
187291 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 18 |
72140505 |
Bolt 5/16-18 x 5/8 Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 24 |
105304X |
Cap Sleeve Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
187257X428 |
Deflector Shield Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Flg. Top Lock Price: Call Us |
| 33 |
99-9080 |
VALVE-EXHAUST Price: $59.67 |
| 34 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 34 |
99-9081 |
VALVE-INTAKE Price: $56.81 |
| 35 |
99-9640 |
SPRING-VALVE This part replaces 99-9082. Price: $10.49 |
| 38A |
99-9083 |
SCREW-HEX Price: $11.18 |
| 39 |
196104 |
Pulley, Idler, Stationary Price: Call Us |
| 40 |
99-9084 |
RETAINER-VALVE Price: $12.35 |
| 42 |
99-9086 |
KEEPER-VALVE (SET) Price: $15.80 |
| 42A |
99-9086 |
KEEPER-VALVE (SET) This part replaces 99-9087. Price: $15.80 |
| 43 |
196065 |
Arm, Idler Price: Call Us |
| 44C |
99-9085 |
SCREW-METRIC Price: $13.68 |
| 45 |
99-9088 |
TAPPET-VALVE Price: $35.85 |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
196103 |
V-Belt, Mower Price: Call Us |
| 49 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 50 |
72110616 |
Bolt Rdhd Sqnk 3/8-16 unc x 2 Price: Call Us |
| 52 |
196106 |
Pulley Idler Clutching Price: Call Us |
| 58 |
187342 |
Baffle Right Price: Call Us |
| 59 |
187344 |
Baffle Left Price: Call Us |
| 60 |
187607 |
Baffle Center Price: Call Us |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
196105 |
Spring Drive Price: Call Us |
| 113 |
72110508 |
Bolt Rdhd Sqnk 5/16-18 x 3/4 Price: Call Us |
| 114 |
187556 |
Rod Tension Relief Price: Call Us |
| 116 |
193406 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 120 |
19132012 |
Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us |
| 122 |
187557 |
Bushing Tension Relief Price: Call Us |
| 154B |
99-9091 |
NUT-HEX, METRIC Price: $11.18 |
| 185 |
73900700 |
Nut Lock Flange 7/16-14 Gr. 5 Price: Call Us |
| 187 |
195161 |
Stud Fastener w/"D" Anti-Rotation Price: Call Us |
| 188 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 189 |
195185 |
Arm Susp. Mower Rear Price: Call Us |
| 190 |
196539 |
Bolt Shoulder Price: Call Us |
| 192 |
198468 |
Keeper Belt Idler Price: Call Us |
| 192 |
99-9092 |
ADJUSTER-ARM, ROCKER Price: $11.28 |
| 194 |
72140716 |
Bolt Carr Sqnk 3/8-16 x 2-1/4 Price: Call Us |
| 230 |
99-9093 |
WASHER-SPACER Price: $12.54 |
| 238 |
99-9094 |
CAP-VALVE Price: $8.96 |
| 377 |
99-9095 |
KEY-WOODRUFF Price: $4.73 |
| 553 |
99-9096 |
SEAT-SPRING, VALVE Price: $15.16 |
| 554 |
99-9097 |
SHAFT-CAM Price: $495.88 |
| 615A |
99-9099 |
RETAINER Price: $13.62 |
| 741 |
99-9641 |
GEAR-CAM Price: $180.86 |
| 868 |
99-9102 |
SEAL-VALVE Price: $12.76 |
| 1014 |
99-9090 |
SCREW-METRIC Price: $15.03 |
| 1026 |
99-9103 |
ROD-PUSH Price: $26.63 |
| 1029 |
99-9104 |
ARM-ROCKER Price: $100.53 |
| 1030 |
99-9106 |
SHAFT-ARM, ROCKER Price: $79.37 |
| 1031 |
99-9107 |
SUPPORT-ARM, ROCKER Price: $37.38 |
| 1060 |
99-9108 |
SPRING-SHAFT, ROCKER Price: $6.67 |
| 187254 |
High |
Lift Price: Call Us 187254 |
| 187255 |
Blade |
Mulching Price: Call Us 187255 |
| 187292 |
Mandrel |
Asm. Service Price: Call Us 187292 |
