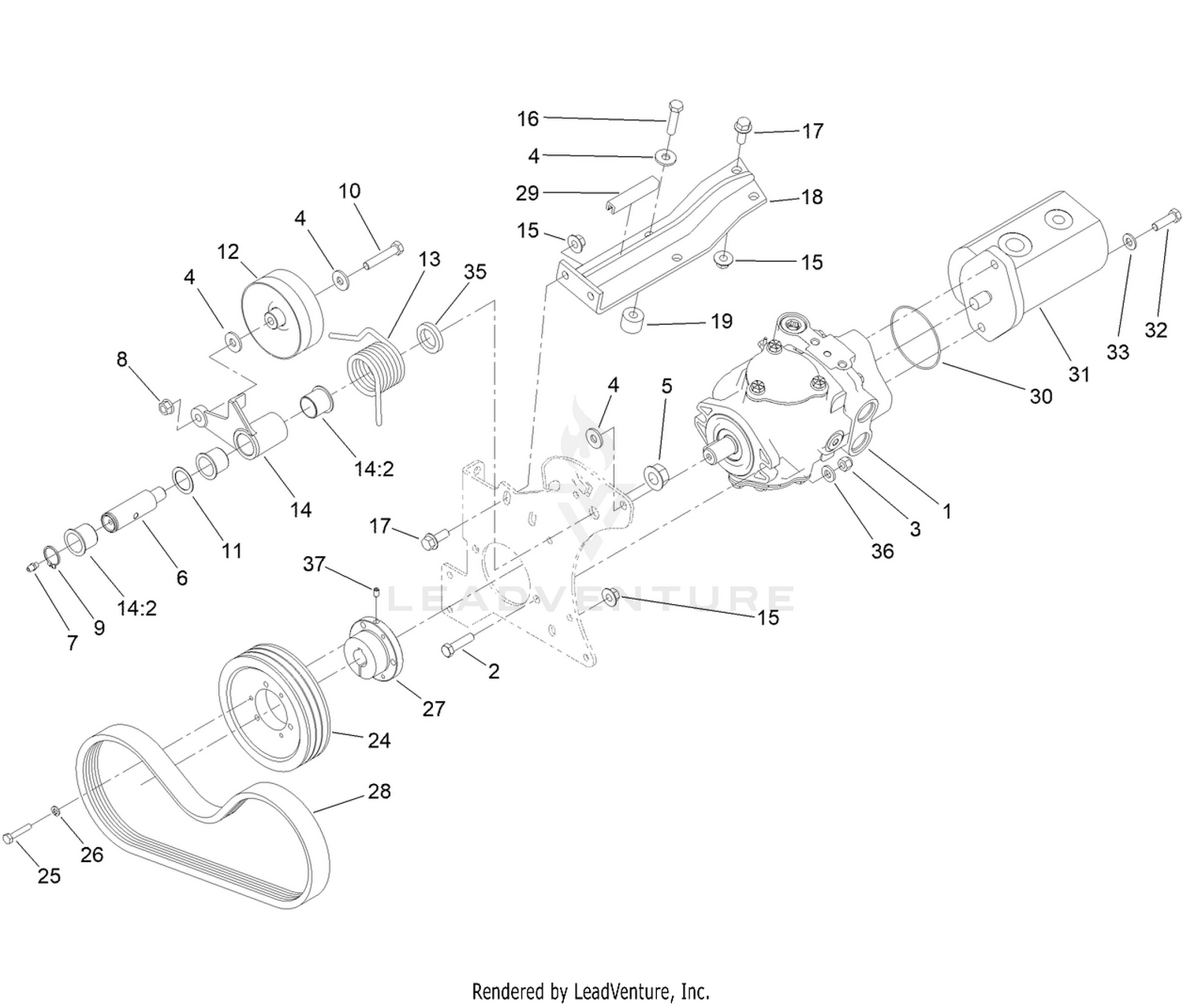

| Ref | Part Number | Description |
|---|
| 1 |
104-4890 |
PISTON PUMP ASM Price: $2,386.28 |
| 2 |
323-8 |
SCREW-HH Price: $1.20 |
| 3 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 4 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 5 |
32128-54 |
NUT-HF Price: $5.25 |
| 6 |
99-3624 |
SHAFT-PIVOT, IDLER Price: $67.19 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 8 |
32128-21 |
NUT-HF Price: $0.39 |
| 9 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 10 |
323-10 |
SCREW-HH Price: $0.89 |
| 11 |
74-1810 |
WASHER Price: $0.39 |
| 12 |
139-6031 |
PULLEY-IDLER This part replaces 107-7834. Price: $121.38 |
| 13 |
115-3488 |
SPRING-TORSION Price: $19.96 |
| 14 |
137-1653 |
IDLER ARM ASM Price: $37.07 |
| 15 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 16 |
323-19 |
SCREW-HH Price: $1.70 |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 18 |
99-3436-0P |
SUPPORT-PUMP This part replaces 99-3436-03. Price: $150.02 |
| 19 |
99-3440 |
SPACER Price: $6.78 |
| 24 |
120-3350 |
PULLEY-3V Price: $232.72 |
| 25 |
32-1140 |
DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 26 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 27 |
100-4813 |
BUSHING-LOCK, TAPER Price: $37.51 |
| 28 |
120-3351 |
BELT-3V Price: $65.90 |
| 29 |
70-2041 |
TRIM Price: $5.30 |
| 30 |
353-949 |
O-RING Price: $3.49 |
| 31 |
108-9036 |
HYD GEAR PUMP ASM Price: $1,277.80 |
| 32 |
323-7 |
SCREW-HH Price: $0.65 |
| 33 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 35 |
99-3625 |
SPACER-ARM, IDLER Price: $9.01 |
| 36 |
100-4852 |
WASHER-HARDENED Price: $4.63 |
