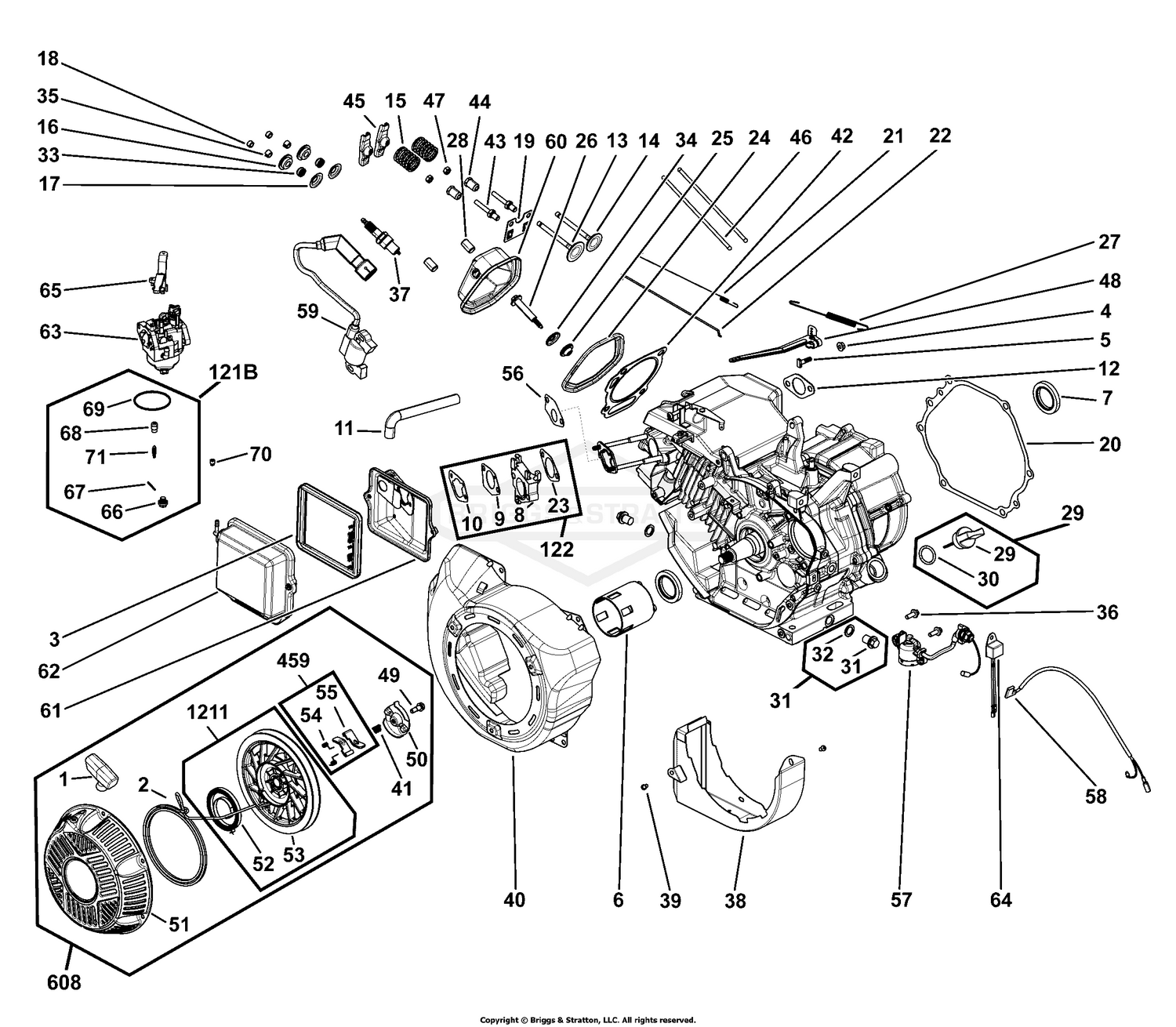

| Ref | Part Number | Description |
|---|
| 1 |
691915 |
GRIP, Starter Rope Price: $5.72 |
| 2 |
693389 |
ROPE, Starter Price: $8.64 |
| 3 |
491588S |
FILTER, A/C Cartridge Price: $6.39 |
| 4 |
690939 |
NUT Price: $2.71 |
| 5 |
797230 |
BOLT Price: $3.36 |
| 6 |
797746 |
CUP, Flywheel Price: $10.10 |
| 7 |
797766 |
SEAL, Oil Price: $9.09 |
| 8 |
799961 |
SPACER, Carburetor Price: $11.53 |
| 9 |
797755 |
GASKET, Intake Price: $3.70 |
| 10 |
797756 |
GASKET, Air Cleaner Price: $5.04 |
| 11 |
797768 |
TUBE, Breather Price: $11.06 |
| 12 |
797770 |
GASKET, Exhaust Price: $5.72 |
| 13 |
594256 |
VALVE, Intake Price: $16.24 |
| 14 |
797778 |
VALVE, Exhaust This part replaces 594257. Price: $38.83 |
| 15 |
797780 |
SPRING, Valve Price: $5.87 |
| 16 |
797781 |
RETAINER, Valve Price: $5.64 |
| 17 |
797782 |
RETAINER, Valve Price: $5.52 |
| 18 |
797784 |
CAP, Valve Price: $8.11 |
| 19 |
797787 |
GUIDE, Push Rod Price: $12.94 |
| 20 |
797789 |
GASKET, Crankcase Price: $26.39 |
| 21 |
797809 |
SPRING, Governor Link Price: $9.64 |
| 22 |
797810 |
LINK, Mechanical Governor Price: $7.52 |
| 23 |
797845 |
GASKET, Intake Price: $3.70 |
| 24 |
797846 |
GASKET, Rocker Cover Price: $8.41 |
| 25 |
797847 |
WASHER, Sealing Price: $6.51 |
| 26 |
797848 |
SCREW Price: $4.70 |
| 27 |
797843 |
SPRING, Governor Price: $6.23 |
| 28 |
797792 |
PIN, Locating Price: $5.17 |
| 30 |
797763 |
SEAL, O-Ring Price: $5.19 |
| 32 |
797794 |
WASHER Price: $4.03 |
| 33 |
797854 |
SEAL, Valve Price: $10.89 |
| 34 |
797847 |
WASHER, Sealing Price: $6.51 |
| 35 |
797783 |
KEEPER, Valve Price: $13.17 |
| 36 |
798975 |
SCREW Price: $3.14 |
| 37 |
798615 |
PLUG, Spark Price: $6.36 |
| 38 |
798839 |
SHIELD, Crankcase Price: $42.36 |
| 39 |
798840 |
SCREW Price: $2.72 |
| 40 |
799968 |
HOUSING, Blower Price: $81.20 |
| 41 |
799669 |
SPRING, Friction Price: $5.40 |
| 42 |
799534 |
GASKET, Cylinder Head Price: $14.14 |
| 45 |
591087 |
ARM, Rocker Price: $18.59 |
| 46 |
799966 |
ROD, Push Price: $9.88 |
| 49 |
799972 |
SCREW Price: $3.02 |
| 50 |
799973 |
PLATE, Pawl Friction Price: $7.40 |
| 51 |
799974 |
HOUSING, Rewind Starter Price: $60.66 |
| 56 |
592652 |
GASKET, Intake Price: $3.70 |
| 57 |
797771 |
SENSOR, Oil Price: $54.71 |
| 58 |
797856 |
HARNESS, Wiring Price: $14.82 |
| 59 |
798616 |
ARMATURE, Magneto Price: $66.28 |
| 62 |
590958 |
COVER, Air Cleaner Price: $30.59 |
| 64 |
84004388 |
MODULE, Oil Sensor Price: $50.01 |
| 65 |
797759 |
LEVER, Choke Price: $9.88 |
| 70 |
592928 |
JET, Main Price: $16.94 |
| 122 |
799961 |
SPACER, Carburetor Price: $11.53 |
| 459 |
799976 |
PAWL, Ratchet Price: $6.28 |
| 608 |
797747 |
STARTER, Rewind Price: $112.07 |
