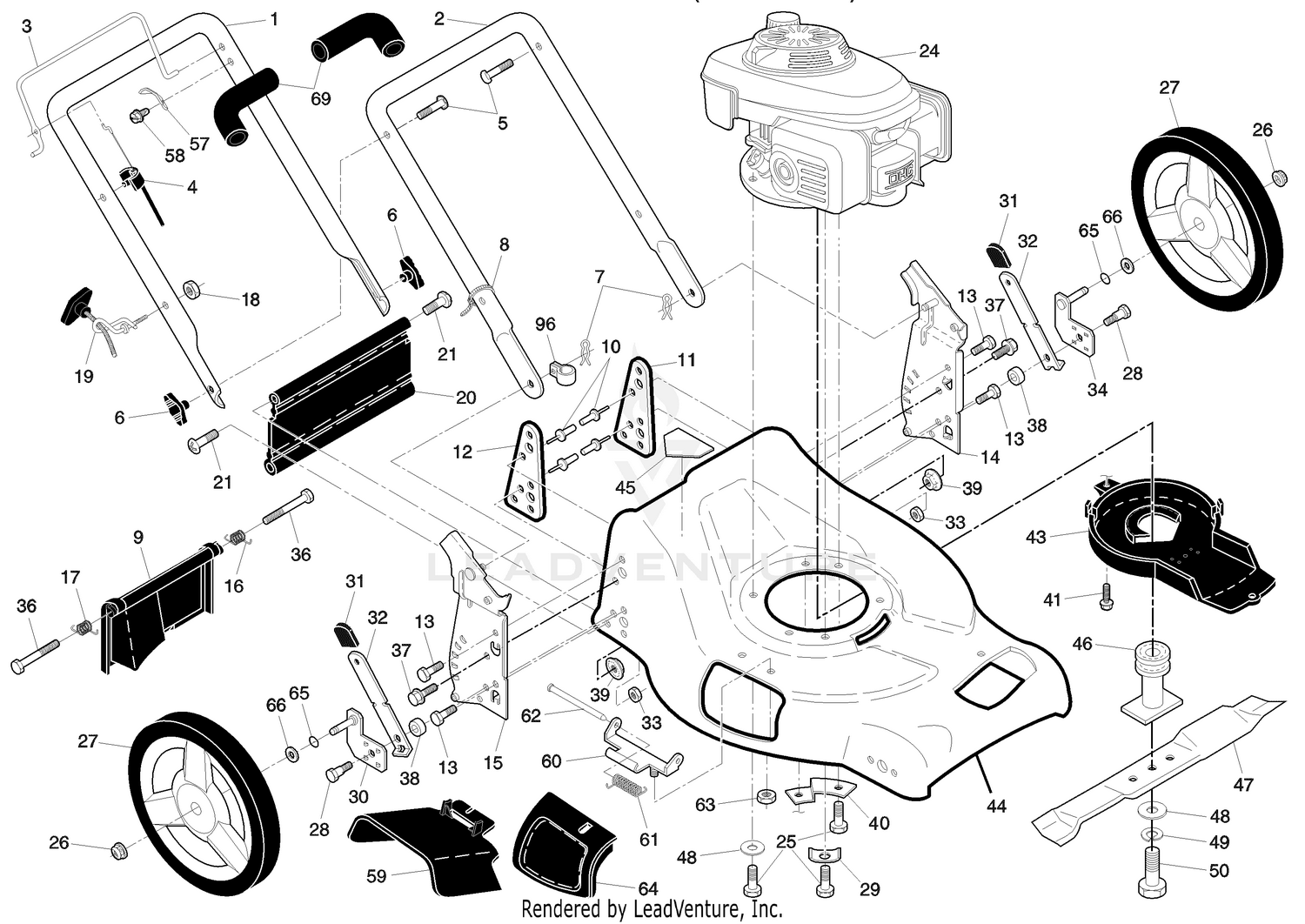

| Ref | Part Number | Description |
|---|
| 1 |
532427658 |
HANDLE.ASM.GRY.W/GRIP This part replaces 532196403. Price: $37.99 |
| 1 |
98-9462 |
ELEMENT-PUMP Price: $282.73 |
| 2 |
532175245 |
HANDLE.LOWER.21.FWGD.BLACK This part replaces 532153418. Price: $19.99 |
| 2 |
98-9423 |
O-RING Price: $6.07 |
| 3 |
532197019 |
BAIL.DSTRT.FL.AW.CREAS.ORANGE Price: $14.99 |
| 3 |
98-9443 |
PIN-JOINT Price: $13.13 |
| 4 |
532183567 |
CABLE.ENGINE BRAKE.MZR Price: $14.99 |
| 4 |
98-9434 |
FLANGE-SLEEVE Price: $17.25 |
| 5 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 5 |
98-9421 |
VALVE-DELIVERY Price: $116.98 |
| 6 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191856. Price: $7.99 |
| 6 |
98-9424 |
SPRING-VALVE, DELIVERY Price: $21.66 |
| 7 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 7 |
98-9425 |
GASKET-VALVE, DELIVERY Price: $10.58 |
| 8 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 8 |
98-9447 |
O-RING Price: $18.23 |
| 9 |
532401812 |
DOOR.REAR.PLASTIC.21.FWGD This part replaces 532406985. Price: $29.99 |
| 9 |
98-9652 |
HOLDER-VALVE, DELIVERY Price: $111.74 |
| 10 |
532128415 |
RIVET BLIND Price: $3.99 |
| 10 |
98-9452 |
SCREW Price: $7.23 |
| 11 |
532406573 |
BRACKET.SUPPORT.LH.21.FWGD This part replaces 532410540. Price: $5.99 |
| 11 |
98-9422 |
TAPPET ASM Price: $275.51 |
| 12 |
532410542 |
BRACKET.SUPRT.RH.21.FWGD Price: $5.99 |
| 12 |
98-9433 |
SHIM Price: $2.13 |
| 13 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 13 |
98-9429 |
SEAT-SPRING, LOWER Price: $50.60 |
| 14 |
532434513 |
BRACKET.ASM.HNDL.LT.21.FGD.HW This part replaces 532196037. Price: $11.99 |
| 14 |
98-9428 |
SPRING-PLUNGER Price: $32.36 |
| 15 |
532434512 |
BRACKET.ASM.HNDL.RT.21.FGD.HW This part replaces 532196036. Price: $11.99 |
| 15 |
98-9427 |
SEAT-SPRING, UPPER Price: $16.02 |
| 16 |
532405417 |
SPRING.REAR.DOOR.EZ.21.LT Price: $7.99 |
| 16 |
98-9432 |
SLEEVE-CONTROL Price: $107.77 |
| 17 |
532405418 |
SPRING.REAR.DOOR.EZ.21.RT Price: $3.99 |
| 17 |
98-9466 |
PLUG Price: $12.54 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 18 |
98-9451 |
GASKET Price: $1.92 |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 19 |
98-9445 |
GASKET Price: $1.84 |
| 20 |
532413159 |
SKIRT.REAR.21 FWGD.BLACK This part replaces 532189005. Price: $14.99 |
| 20 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 21 |
532088652 |
HINGE SCREW Price: $3.99 |
| 21 |
98-9446 |
GASKET Price: $2.50 |
| 22 |
98-9430 |
SCREW Price: $19.45 |
| 23 |
98-9643 |
INJECTION PUMP ASM This part replaces 98-9463. Price: $2,551.99 |
| 24 |
98-9465 |
PLATE Price: $9.73 |
| 25 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 25 |
98-9442 |
SCREW Price: $26.58 |
| 26 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 26 |
98-9426 |
PIN-GUIDE, TAPPET Price: $7.65 |
| 27 |
585911001 |
WHEEL.12X1.75.CF H3SPK.RAD3.BB This part replaces 532410815. Price: $22.99 |
| 28 |
532160828 |
SHOULDER BOLT Price: $3.99 |
| 29 |
532125078 |
WASHER.ENGINE.BZP Price: $4.99 |
| 30 |
532402571 |
ARM.ASM.AXLE.H/W,RR.BZ Price: $7.99 |
| 31 |
532185574 |
SELECTOR KNOB Price: $5.99 |
| 32 |
532190157 |
SPRING.SELECTOR.21.FWG.ZINC Price: $4.99 |
| 33 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 34 |
532402572 |
ARM.ASM.AXLE.H/W.LR.BZ Price: $8.99 |
| 36 |
532184193 |
BOLT Price: $4.99 |
| 37 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 38 |
819112206 |
WASHER.FLAT.34X1.38X22 Price: $4.99 |
| 39 |
596039201 |
GSPW Hardware This part replaces 532198541. Price: $2.99 |
| 40 |
532188839 |
BRACKET.DEBRIS.SHIELD.BZP This part replaces 532190939. Price: $4.99 |
| 41 |
532192325 |
SCREW.HEX.WSH Price: $4.99 |
| 43 |
532443950 |
KIT.BLADE.ADAPTOR.BELT.GUIDE. This part replaces 532405844. Price: $49.99 |
| 45 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 46 |
532443950 |
KIT.BLADE.ADAPTOR.BELT.GUIDE. This part replaces 532194037. Price: $49.99 |
| 47 |
532189028 |
BLADE.21.PUSH/RWGD/FWG Price: $19.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 57 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 58 |
532750634 |
SCREW Price: $2.99 |
| 59 |
532175071 |
DISCHARGE DEFLECTOR This part replaces 532185582. Price: $17.99 |
| 60 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 61 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 62 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 63 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 64 |
532185576 |
DOOR.MULCH.21.REAR.FWGD Price: $11.99 |
| 65 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 66 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 69 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
