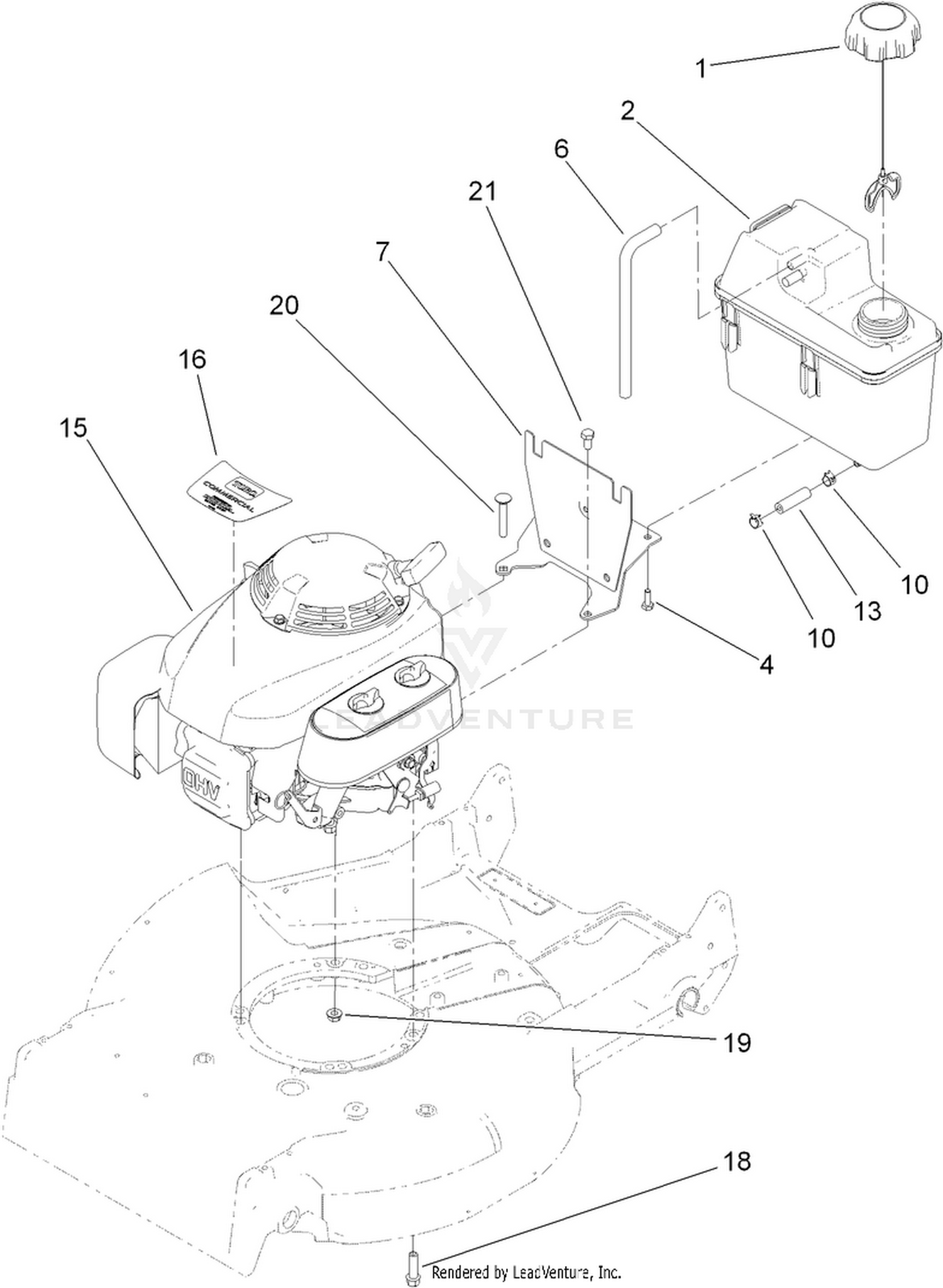

Engine and Fuel Tank Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-4127 | CAP-FUEL This part replaces 109-6776. Price: $22.05 |
| 2 | 114-0280 | TANK-FUEL Price: $91.81 |
| 4 | 46-8091 | SCREW-HWH Price: $3.59 |
| 6 | 115-0962 | HOSE-VENT, CANISTER Price: $5.77 |
| 7 | 119-7837-03 | MOUNT-TANK Price: $46.50 |
| 10 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 13 | 119-7856 | HOSE-FUEL Price: $2.90 |
| 16 | 125-8405 | DECAL-ENGINE, HONDA This part replaces 112-9974. Price: $4.42 |
| 18 | 103-2678 | SCREW-SHOULDER Price: $3.52 |
| 19 | 3230-6 | BOLT-CARR Price: $0.59 |
| 20 | 32128-25 | NUT-HF Price: $3.19 |
