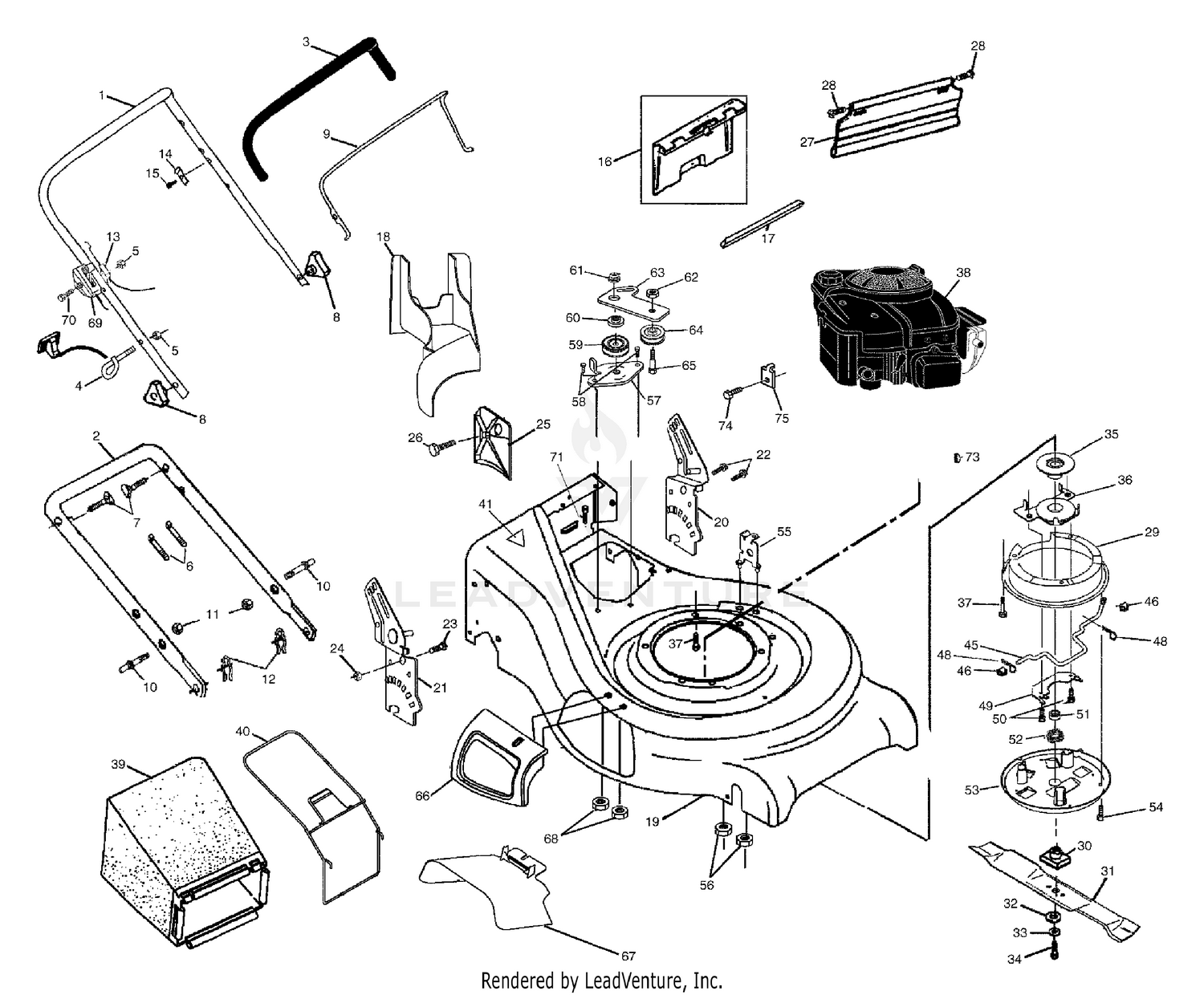

| Ref | Part Number | Description |
|---|
| 1 |
98-3726 |
PLATE - VALVE Price: $515.25 |
| 2 |
532197202 |
HANDLE.LOWER.21.GREY This part replaces 532164556. Price: $19.99 |
| 3 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532164265. Price: $4.99 |
| 3 |
93-6372 |
RING-QUAD This part replaces 94-3036. Price: $5.92 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 4 |
94-3037 |
RING-RETAINING Price: $1.78 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 5 |
94-3038 |
ACTUATOR-DUMP VALVE Price: $159.36 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 7 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 7 |
94-9999 |
VALVE-RELIEF Price: $768.40 |
| 8 |
532087692 |
KNOB Price: $8.99 |
| 8 |
98-3727 |
BACKPLATE ASM Price: $1,881.67 |
| 9 |
532411083 |
BAIL.CONT.COMF.PUSH.ORGANGE.RH This part replaces 532176594. Price: $12.99 |
| 9 |
94-3035 |
DISCONTINUED Price: Call Us |
| 10 |
532188821 |
BOLT This part replaces 532161551. Price: $4.99 |
| 10 |
94-3023 |
COUPLER Price: $196.98 |
| 11 |
596040501 |
Hardware This part replaces 873990500. Price: $2.99 |
| 12 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 12 |
94-3017 |
CHARGE ADAPTER ASM Price: $1,110.47 |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
532133107 |
ENGINE ZONE CONTROL Price: $17.99 |
| 14 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 14 |
60-6220 |
SCREW-HH This part replaces 94-3028. Price: $5.33 |
| 15 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 16 |
532162085 |
KIT.DOOR.REAR.21.WRAPPED.BLACK Price: $40.99 |
| 17 |
532189059 |
SEAL.DOOR.21" (2 2MC) This part replaces 532161548. Price: $4.99 |
| 18 |
532198170 |
PLUG.MULCHER.RGD.21. This part replaces 532165261. Price: $32.99 |
| 19 |
532176599 |
KIT, HOUSING Price: $116.48 |
| 20 |
532161568 |
HANDLE, BRACKET ASM. LEFT This part replaces 532164548. Price: $9.88 |
| 21 |
532181020 |
BRACKET.ASM.HNDL.21.RWGD.EZ.RT This part replaces 532169306. Price: $12.99 |
| 21 |
94-3029 |
DISCONTINUED Price: Call Us |
| 22 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 23 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 24 |
596040501 |
Hardware This part replaces 532063124. Price: $2.99 |
| 25 |
532161333 |
CLIPPING DEFLECTOR Price: $9.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
532408442 |
SKIRT.REAR.21.RWGD.BLACK(2 2M) This part replaces 532161550. Price: $8.99 |
| 28 |
3217-5 |
NUT-HEX Price: $0.25 |
| 28 |
532088652 |
HINGE SCREW Price: $3.99 |
| 29 |
532190930 |
COVER.BELT.BBC.AW.TOP This part replaces 532177652. Price: $22.99 |
| 29 |
94-3031 |
ARM-CONTROL Price: $32.40 |
| 30 |
3274-59 |
SCREW-HSH Price: $1.15 |
| 30 |
532851514 |
BLADE ADAPTOR Price: $7.99 |
| 31 |
94-3040 |
ORIFICE Price: $37.14 |
| 32 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 33 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 33 |
94-3032 |
FOLLOWER-PISTON Price: $574.71 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 35 |
532169809 |
PULLEY, FIXED Price: $14.99 |
| 35 |
94-3021 |
ROTATING KIT ASM Price: $2,396.18 |
| 36 |
532179222 |
BEARING SUPT. This part replaces 532170045. Price: $48.99 |
| 36 |
94-3026 |
CAMPLATE ASM Price: $1,164.81 |
| 37 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 39 |
532410686 |
GBAG.29510010.BLK.GEN.250C2 This part replaces 532169111. Price: $64.99 |
| 40 |
532161358 |
FRAME.GRASS.CATCHER.WALK.21" Price: $54.99 |
| 41 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 41 |
94-3025 |
SERVO PISTON ASM Price: $392.53 |
| 43 |
105-9853 |
PLATE-COVER This part replaces 94-3034. Price: $142.29 |
| 44 |
3256-77 |
WASHER-FLAT Price: $1.60 |
| 45 |
3274-81 |
SCREW-HSH Price: $0.74 |
| 45 |
532166034 |
ROD.PULLEY.ENGAGE Price: $10.99 |
| 46 |
3220-3 |
NUT-HJ Price: $0.28 |
| 46 |
532166041 |
BUSHING.PIVOT.ROD Price: $2.99 |
| 47 |
94-3030 |
WASHER Price: $6.24 |
| 48 |
532169605 |
RETAINER CLIP Price: $2.99 |
| 48 |
94-3027 |
WASHER-SEAL Price: $32.38 |
| 49 |
532175787 |
CLAMP, PIVOT This part replaces 532177653. Price: $3.82 |
| 50 |
532054583 |
SCREW Price: $4.99 |
| 50 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 51 |
532169980 |
SPACER RING Price: $5.99 |
| 51 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 52 |
532170868 |
WASHER.WAVE.SPRING Price: $6.99 |
| 52 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 53 |
532173041 |
BELT COVER, BOTTOM (1 2) Price: $6.99 |
| 53 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 54 |
105-3331 |
SEAL-SHAFT This part replaces 94-3008. Price: $35.63 |
| 54 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 55 |
532166383 |
BRKT ASM, CABLE This part replaces 532177651. Price: $2.90 |
| 55 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 56 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 56 |
94-3020 |
SHAFT-DRIVE Price: $627.17 |
| 57 |
532166391 |
BRKT ASM, IDLER This part replaces 532177656. Price: $3.99 |
| 58 |
532057808 |
SCREW Price: $1.99 |
| 58 |
94-3018 |
DISCONTINUED Price: Call Us |
| 59 |
532166042 |
PULLEY.V-GROOVE.IDLER Price: $22.99 |
| 59 |
94-3033 |
PLATE-COVER Price: $121.09 |
| 60 |
532166050 |
IDLER ARM SPACER Price: $7.99 |
| 61 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 62 |
873930500 |
NUT.CENTERLOCK.5/16- This part replaces 532155552. Price: $3.99 |
| 63 |
532166022 |
ARM.IDLER.YELLOW This part replaces 532177655. Price: $4.99 |
| 64 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 65 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 65 |
93-6306 |
CONTROL ASM This part replaces 94-3019. Price: $1,822.55 |
| 66 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 66 |
532183058 |
DOOR.ASM.MULCH.21.RWD This part replaces 532171962. Price: $99.99 |
| 67 |
532169699 |
DEFLECTOR.21.MCUT.RWGD.GRAY This part replaces 532166028. Price: $8.99 |
| 68 |
532088349 |
NUT Price: $3.99 |
| 69 |
532168246 |
THROTTLE CONTROL Price: $12.99 |
| 70 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 71 |
532054583 |
SCREW Price: $4.99 |
| 73 |
532087677 |
HI PRO KEY PM WSL Price: $3.99 |
| 74 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 75 |
532111190 |
CABLE CLAMP(ENGINE) Price: $4.99 |
