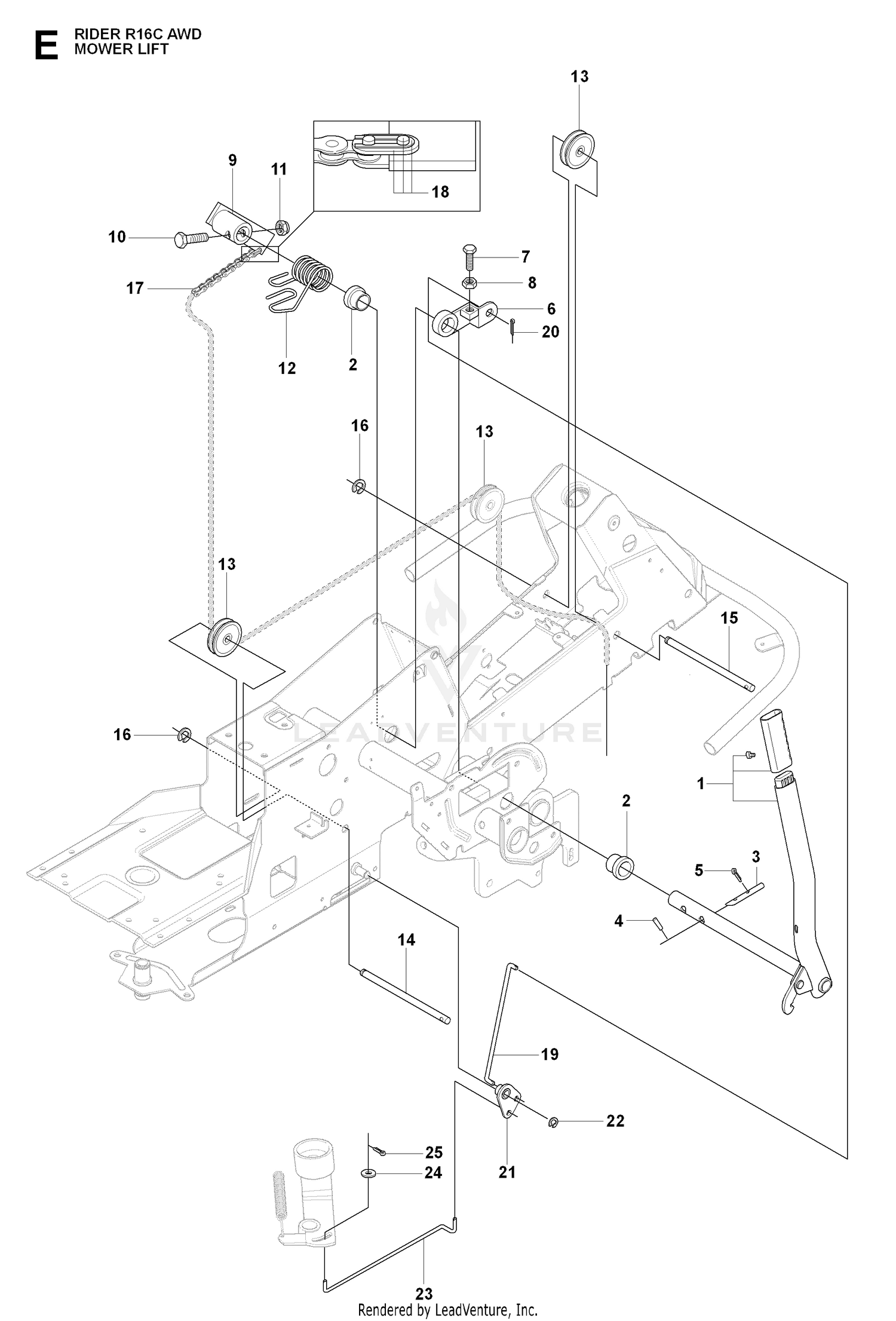

MOWER LIFT / DECK LIFT
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-2935 | HYDRAULIC MOTOR ASM Price: $1,293.20 |
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 133-2934 | HYDRAULIC MOTOR ASM Price: $1,293.20 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 340-17 | FITTING-ELBOW, 90 DEG Price: $42.29 |
| 3 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 4 | 108-7632 | TUBE ASM Price: $192.57 |
| 4 | 721125930 | PIN Price: $2.99 |
| 5 | 108-7633 | TUBE ASM Price: $191.74 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 2412-134 | CLAMP-R Price: $5.79 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 7 | 59-7410 | FITTING-DIAGNOSTIC Price: $36.39 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 354-79 | CAP-DUST Price: $7.81 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 340-156 | FITTING-ELBOW 45 Price: $67.70 |
| 9 | 544433601 | LIFTING ARM Price: $22.99 |
| 10 | 108-1679 | HOSE-HYD Price: $120.18 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 11 | 732252201 | Nut Price: $2.65 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 506554609 | CHAIN Price: $54.99 |
| 18 | 506554701 | LINK Price: $4.99 |
| 19 | 544456901 | CONNECTION ROD Price: $8.99 |
| 20 | 721618301 | Split Pin Price: $1.99 |
| 21 | 544378601 | LINK Price: $7.99 |
| 22 | 735311420 | RETAINING RING Price: $2.99 |
| 23 | 544448801 | CONNECTION ROD Price: $8.99 |
| 24 | 734116441 | SPACER Price: $3.99 |
| 25 | 721618301 | Split Pin Price: $1.99 |
