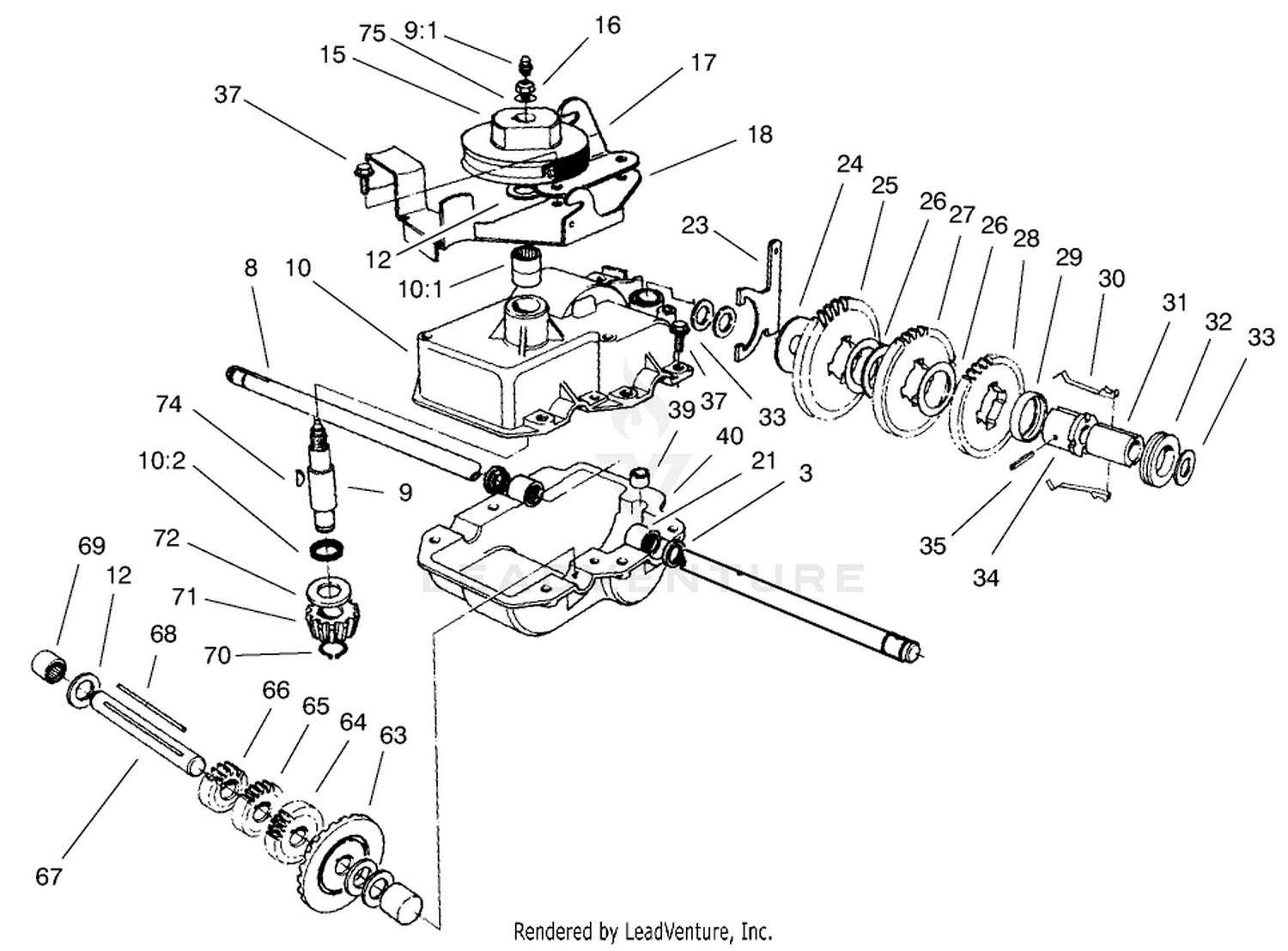

| Ref | Part Number | Description |
|---|
| 3 |
117-3500 |
BEARING-CAGED NEEDLE ROLLER This part replaces 48-2060. Price: $4.69 |
| 8 |
74-1890 |
SHAFT-OUTPUT Price: $78.79 |
| 9 |
13-5149 |
Shaft-Input (Incl Ref. #13) Price: $47.81 |
| 10 |
13-9739 |
Upper Case Assembly (Incl. Ref. #11 73) Price: $53.99 |
| 12 |
36-4792 |
WASHER-THRUST Price: $0.81 |
| 15 |
39-6740 |
PULLEY Price: $37.08 |
| 16 |
3296-5 |
NUT-HEX Price: $3.09 |
| 17 |
74-1750-03 |
BRACKET-ENGAGE, TRACTION Price: $8.49 |
| 18 |
49-8461-03 |
BRACKET-GUIDE, BELT Price: $23.37 |
| 21 |
47-6730 |
SEAL-OIL Price: $7.88 |
| 23 |
60-8870 |
YOKE-SHIFT Price: $16.30 |
| 24 |
29-9690 |
WASHER Price: $8.10 |
| 25 |
46-3560 |
GEAR Price: $51.40 |
| 26 |
36-4770 |
WASHER Price: $3.50 |
| 27 |
29-9271 |
GEAR-42T Price: $58.12 |
| 28 |
42-4740 |
GEAR-38T Price: $54.57 |
| 29 |
55-8020 |
RETAINER-KEY Price: $5.69 |
| 30 |
29-9330 |
KEY-SHIFT Price: $18.44 |
| 31 |
39-6720 |
SLEEVE Price: $10.49 |
| 32 |
29-9340 |
COLLAR-SHIFT Price: $26.11 |
| 33 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 34 |
55-8010 |
SLEEVE-GEAR Price: $13.21 |
| 35 |
3285-19 |
PIN-GROOVE Price: $1.79 |
| 37 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 39 |
29-9570 |
BUSHING-YOKE Price: $7.60 |
| 40 |
119-7863 |
GEARCASE-LOWER This part replaces 74-1920. Price: $32.27 |
| 63 |
74-1760 |
GEAR-BEVEL Price: $25.87 |
| 64 |
39-6650 |
GEAR-18T Price: $8.76 |
| 65 |
46-3550 |
GEAR-14T Price: $14.52 |
| 66 |
46-3540 |
GEAR-12T Price: $8.65 |
| 67 |
53-7950 |
SHAFT-INTERMEDIATE Price: $34.83 |
| 68 |
39-7842 |
KEY Price: $1.65 |
| 69 |
252-103 |
BEARING-NEEDLE, CLOSED Price: $16.30 |
| 70 |
32151-57 |
RING-RETAINING Price: $2.37 |
| 71 |
39-6660 |
PINION-BEVEL Price: $25.89 |
| 72 |
47-2910 |
WASHER-THRUST Price: $12.99 |
| 74 |
3257-1 |
KEY-WOODRUFF Price: $1.79 |
| 75 |
3256-45 |
WASHER-FLAT Price: $0.28 |
