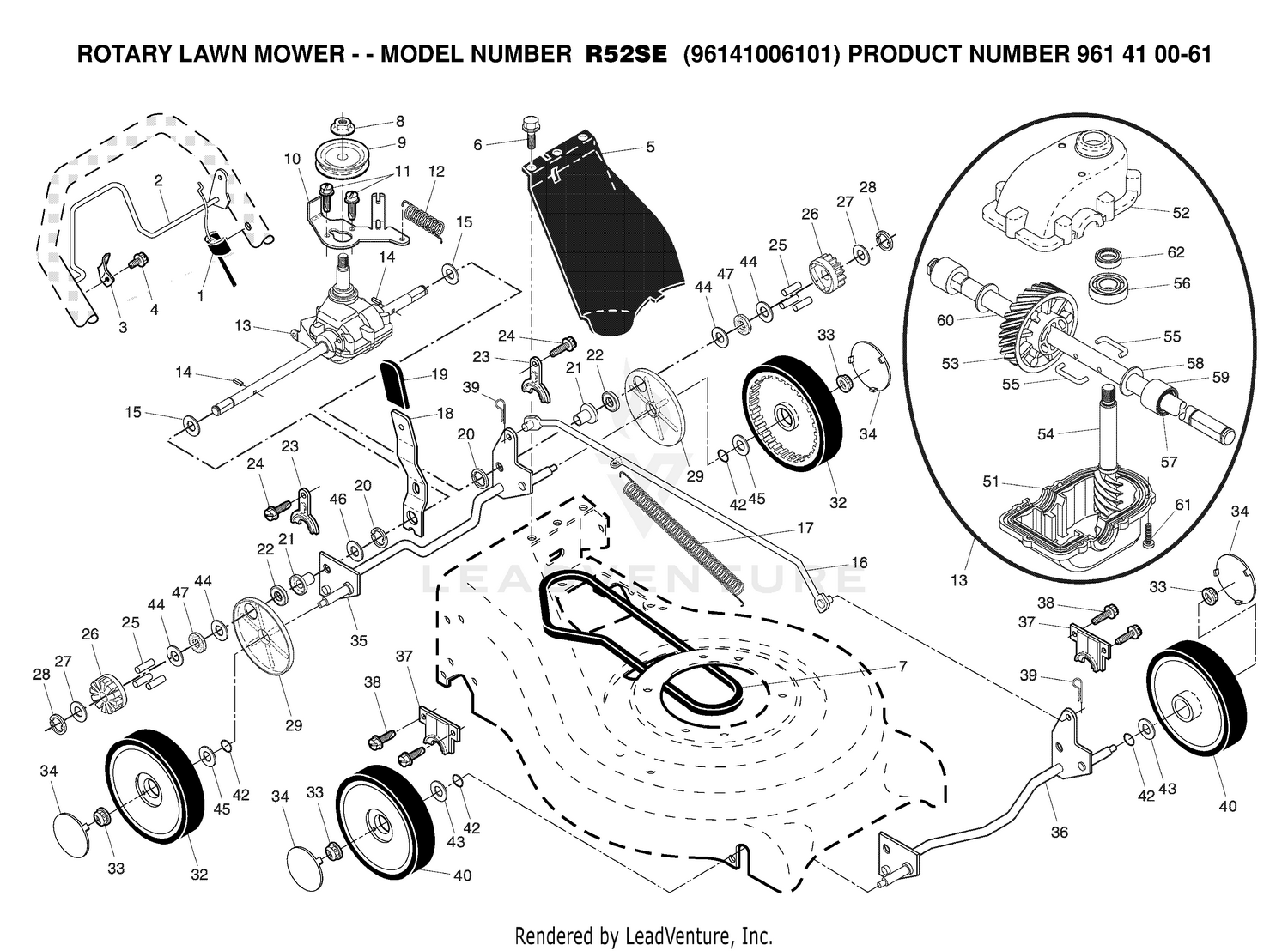

| Ref | Part Number | Description |
|---|
| 1 |
532405995 |
KIT.CABLE.DR.21.RWGD.SS This part replaces 532187626. Price: $29.99 |
| 2 |
532188760 |
NEEDS DESCRIPTION Price: Call Us |
| 3 |
532161478 |
BRKT, DOWNSTOP (RH) This part replaces 532164557. Price: $4.99 |
| 4 |
532750634 |
SCREW Price: $2.99 |
| 5 |
532400783 |
COVER.DRIVE.21.RWGD.MO Price: $9.99 |
| 6 |
532750634 |
SCREW Price: $2.99 |
| 7 |
532160816 |
V-BELT Price: $17.99 |
| 8 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 9 |
532163939 |
PULLEY Price: $17.99 |
| 10 |
532164553 |
BELT GUIDE Price: $27.99 |
| 11 |
532163409 |
SCREW Price: $3.99 |
| 12 |
532187627 |
NEEDS DESCRIPTION Price: Call Us |
| 13 |
532188295 |
TRANSMISSION.21.RWGD.FRANCE Price: $99.99 |
| 14 |
532145354 |
PIN.SPRING.THRUST Price: $3.99 |
| 15 |
532057079 |
THRUST WASHER Price: $1.99 |
| 16 |
532414284 |
KIT.ROD.CONNECTING.REPL.161584 This part replaces 532161584. Price: $32.99 |
| 17 |
532409616 |
SPRING EXTENSION This part replaces 532161602. Price: $5.99 |
| 18 |
532418835 |
SPRING.SELECTOR.SPT.21.BZP This part replaces 532196162. Price: $5.99 |
| 19 |
532189808 |
KNOB.S/P.RWGD.EXT.ERGO.GREY This part replaces 532190622. Price: $2.99 |
| 20 |
812000022 |
E-RING Price: $3.99 |
| 21 |
532169920 |
BEARING SUPPORT.ASM This part replaces 532163365. Price: $14.99 |
| 22 |
532169911 |
BEARING, BALL Price: $11.99 |
| 23 |
532161118 |
RETAINER DRIVE ASM. STMP. This part replaces 532164555. Price: $3.99 |
| 24 |
532057808 |
SCREW Price: $1.99 |
| 25 |
532170011 |
PAWL.DRIVE.ETCHED Price: $3.99 |
| 26 |
532166450 |
PINION.DRIVE.WALK Price: $7.99 |
| 27 |
596040101 |
Washers This part replaces 532052160. Price: $2.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 32 |
532193139 |
KIT.WHL.9X2.RAD.BLK(SERV ONLY) This part replaces 532180753. Price: $54.99 |
| 33 |
532089323 |
NEEDS DESCRIPTION Price: Call Us |
| 34 |
532150182 |
CAP.HUB.ARC.SPOKE.8".LP This part replaces 532180626. Price: $3.99 |
| 35 |
532403102 |
SHAFT.ASM.REAR.TORQUE.BZP.8 This part replaces 532196016. Price: $29.99 |
| 37 |
532161463 |
RETAINER.FRONT.SHAFT Price: $9.99 |
| 38 |
532163409 |
SCREW Price: $3.99 |
| 39 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 40 |
532435276 |
WHEEL.8X1.75.CF5SPK.RAD.BLACK This part replaces 532143593. Price: $24.99 |
| 42 |
532197480 |
O-RING..070X.487.NEOPRENE This part replaces 532188152. Price: $3.99 |
| 43 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 44 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 45 |
532067725 |
WASHER FLUT Price: $5.99 |
| 46 |
819572216 |
WASHER.ZINC.PLATED Price: $4.99 |
| 47 |
532088118 |
WASHER Price: $3.99 |
| 51 |
532187530 |
CASE, LOWER Price: $10.99 |
| 52 |
532191245 |
GEARCASE.HOUSING Price: $11.99 |
| 53 |
532187532 |
GEAR.24.TOOTH.WALK.MOWER Price: $11.99 |
| 54 |
532187533 |
SHAFT INPUT Price: $24.99 |
| 55 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 56 |
532183506 |
BEARING Price: $5.99 |
| 57 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 58 |
532183509 |
WASHER Price: $3.99 |
| 59 |
532183511 |
BUSHING Price: $4.99 |
| 60 |
532191248 |
NEEDS DESCRIPTION Price: Call Us |
| 61 |
532183513 |
SCREW Price: $3.99 |
| 62 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
