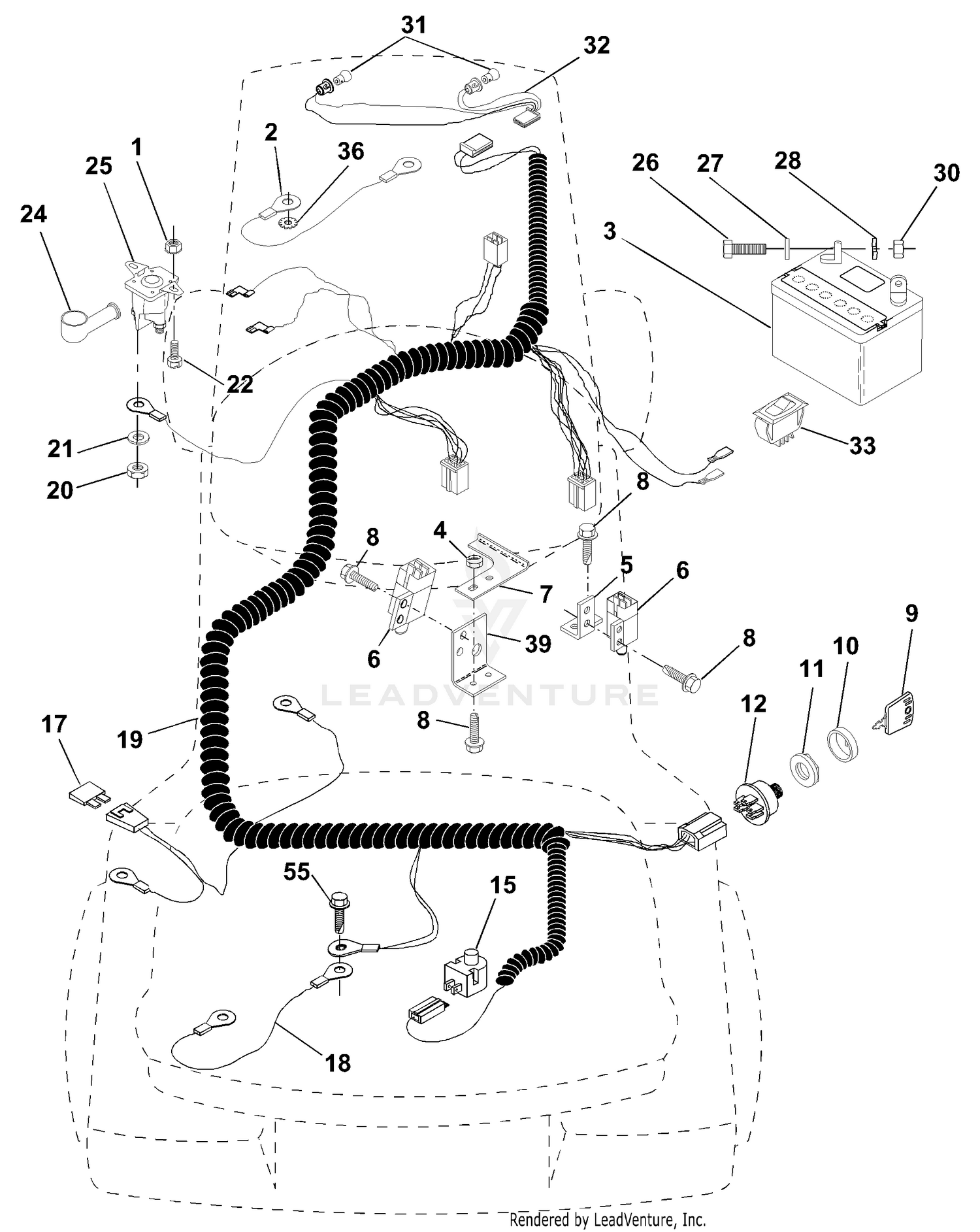

| Ref | Part Number | Description |
|---|
| 1 |
302-58 |
FITTING-STRAIGHT Price: $0.81 |
| 1 |
873640400 |
Nut, Hex, Keps 1/4-20 Price: $2.99 |
| 2 |
532108423 |
CABLE.BATTERY.6GA.16"RED Price: $6.99 |
| 2 |
94-3620 |
BARREL-CYLINDER Price: $216.81 |
| 3 |
32152-10 |
LOCKNUT Price: $0.81 |
| 3 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144924. Price: $149.99 |
| 4 |
94-3616 |
PISTON-CYLINDER Price: $105.44 |
| 5 |
532108236 |
BRACKET LT Price: $2.99 |
| 6 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 7 |
94-3618 |
SHAFT-CYLINDER Price: $100.20 |
| 8 |
817021008 |
SCREW Price: $3.99 |
| 9 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 10 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 10 |
94-3615 |
HEAD-CYLINDER Price: $105.44 |
| 11 |
532145774 |
KIT-WASHER/NUT This part replaces 532140400. Price: $3.99 |
| 11 |
94-3638 |
RING-RETAINING, INTERNAL Price: $4.27 |
| 12 |
532158913 |
KIT.SWITCH.IGNITION This part replaces 532144921. Price: $39.99 |
| 13 |
3220-6 |
NUT-JAM Price: $1.25 |
| 14 |
94-3617 |
CLEVIS-CYLINDER Price: $138.29 |
| 15 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 17 |
532108824 |
FUSE HYT Price: $4.99 |
| 18 |
532128353 |
CABLE ASSY Price: $3.99 |
| 19 |
532146064 |
HARNESS IGN LR NLA Price: $100.99 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 21 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 22 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 24 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 25 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 27 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 28 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 30 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 31 |
532004152 |
LIGHTBULB Price: $3.99 |
| 32 |
532142881 |
HARNESS HEADLIGHT Price: $28.30 |
| 33 |
532110712 |
SWITCH LT Price: $7.99 |
| 36 |
811150400 |
Washer, Lock, Internal Tooth 1/4 Price: $2.99 |
| 39 |
532141735 |
BRACKET Price: $2.99 |
