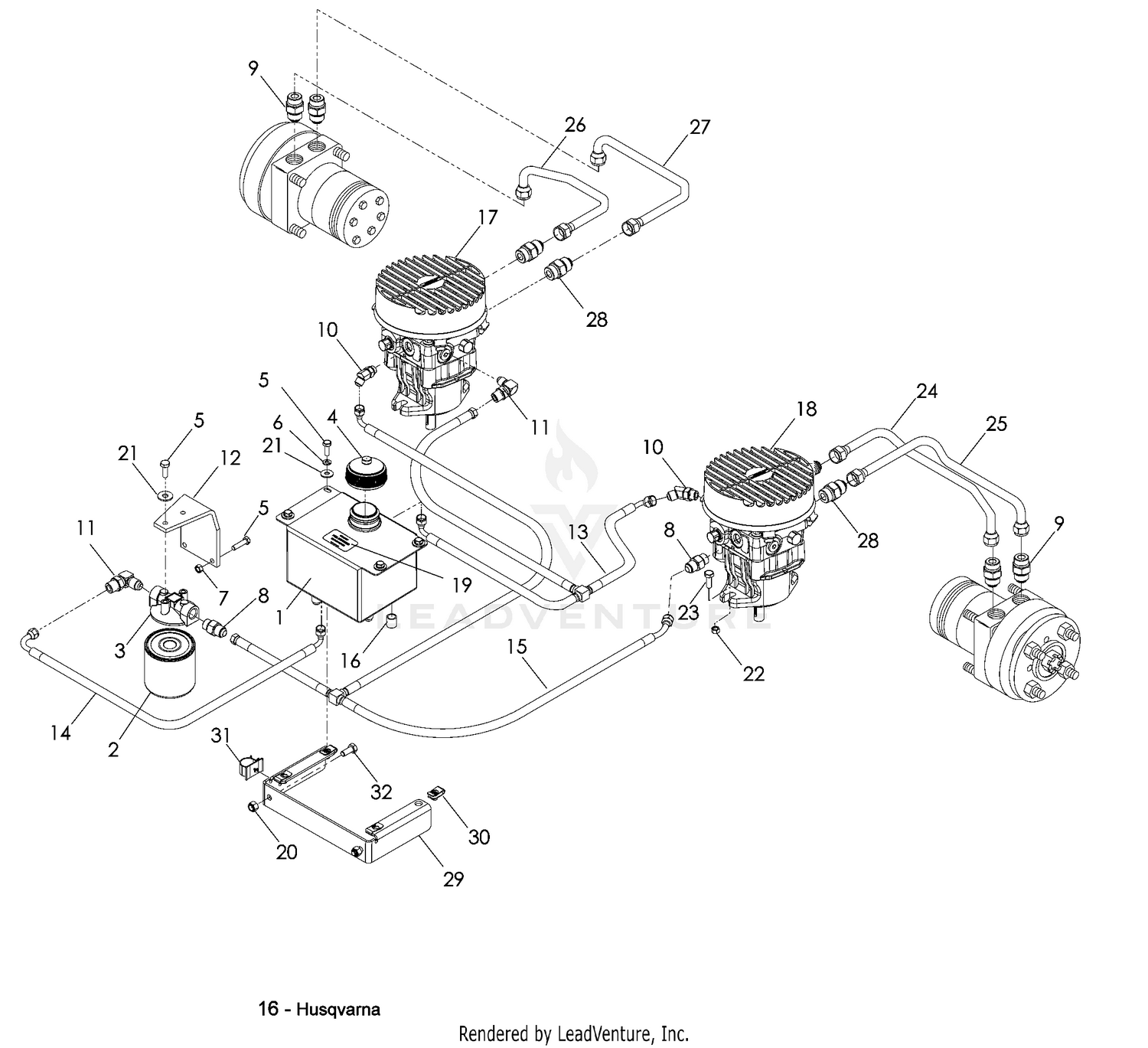

| Ref | Part Number | Description |
|---|
| 1 |
539105024 |
OIL TANK Price: $249.99 |
| 1 |
94-3181 |
DISCONTINUED Price: Call Us |
| 2 |
539102606 |
HYDRAULIC OIL FILTER Price: $22.99 |
| 2 |
94-3182 |
DISCONTINUED Price: Call Us |
| 3 |
539101165 |
FILTER HEAD Price: $37.99 |
| 3 |
93-9176 |
DIPSTICK Price: $75.61 |
| 4 |
539101202 |
HYDRAULIC CAP Price: $19.99 |
| 4 |
94-3184 |
HOSE-CRANK CASE Price: $27.83 |
| 5 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 6 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 7 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 8 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 8 |
539113782 |
HYDRAULIC FITTING Price: $5.99 |
| 9 |
539102396 |
FITTING Price: $11.99 |
| 11 |
539101238 |
ELBOW, F6801-6-6-0 90 DEGREE Price: $12.99 |
| 11 |
74-7770 |
HOSE-CASE, CRANK Price: $26.81 |
| 12 |
539106933 |
OIL FILTER BRKT Price: $22.99 |
| 12 |
74-7780 |
GASKET Price: $3.22 |
| 13 |
539132290 |
HOSE, T-ASM RETURN Price: $37.99 |
| 13 |
74-7790 |
DISCONTINUED Price: Call Us |
| 14 |
539132287 |
HOSE, LPB - MA LINE This part replaces 539132288. Price: $27.99 |
| 14 |
74-7800 |
PIN-SPRING This part replaces 94-3102. Price: $5.96 |
| 15 |
539132289 |
HOSE, T-ASM SUPPLY Price: $37.99 |
| 15 |
74-7810 |
GASKET-PLATE Price: $5.88 |
| 16 |
539105168 |
NUT 9/16-18 JIC CAP Price: $2.99 |
| 16 |
74-7820 |
PLATE Price: $5.59 |
| 17 |
539132143 |
HG_PUMP, 10CC W/FAN RIGHT Price: $1,599.99 |
| 17 |
94-3112 |
DISCONTINUED Price: Call Us |
| 18 |
539132142 |
HG_PUMP, 10CC W/FAN LEFT Price: $1,599.99 |
| 18 |
74-7840 |
PLUG Price: $2.02 |
| 19 |
539114832 |
DECAL, OIL TANK Price: $2.99 |
| 19 |
74-7320 |
GASKET-DRAIN PLUG, OIL Price: $3.77 |
| 20 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 20 |
74-7310 |
PLUG-DRAIN, OIL Price: $5.30 |
| 21 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 21 |
74-7380 |
DISCONTINUED Price: Call Us |
| 22 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 22 |
94-3111 |
PIN Price: $0.92 |
| 23 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 23 |
74-7300 |
OIL SUMP ASM Price: $237.10 |
| 24 |
539132284 |
HOSE, RPA - MA LINE Price: $25.99 |
| 24 |
74-7850 |
GASKET This part replaces 94-3107. Price: $5.41 |
| 25 |
539132285 |
HOSE, RPB - MB LINE Price: $29.99 |
| 25 |
74-7330 |
SCREW-HH Price: $8.91 |
| 26 |
539132286 |
HOSE, LPA - MB LINE Price: $29.99 |
| 26 |
77-3790 |
DISCONTINUED Price: Call Us |
| 27 |
539132287 |
HOSE, LPB - MA LINE Price: $27.99 |
| 27 |
74-7930 |
CAPSCREW-BEARING Price: $9.61 |
| 28 |
539101237 |
FITTING, STRAIGHT F6400-8-8-0 Price: $7.99 |
| 28 |
74-7940 |
BUSHING-SPRING Price: $2.40 |
| 29 |
539110814 |
TANK MOUNT Price: $18.99 |
| 29 |
74-7950 |
SCREW-PLATE Price: $12.51 |
| 30 |
74-7960 |
STUD-FILTER Price: $11.34 |
| 31 |
108-3837 |
FILTER-OIL This part replaces 74-7970. Price: $9.25 |
| 31 |
539110815 |
PUSH-MOUNT WIRE CLIP Price: $2.99 |
| 32 |
94-3180 |
SWITCH-PRESSURE Price: $49.15 |
| 33 |
74-8250 |
PIN This part replaces 74-7990. Price: $0.97 |
| 34 |
74-8000 |
PLUG Price: $3.44 |
| 35 |
74-8010 |
TUBE Price: $30.39 |
| 36 |
94-3100 |
BLOCK-CYLINDER Price: $6,955.88 |
| 37 |
74-8030 |
PIN-SPRING Price: $7.00 |
| 38 |
74-8040 |
PLUG This part replaces 94-3105. Price: $3.67 |
| 39 |
94-3183 |
DISCONTINUED Price: Call Us |
| 40 |
94-3186 |
O-RING Price: $3.33 |
| 42 |
94-3106 |
GASKET Price: $4.03 |
| 43 |
94-3104 |
PLUG-THREADED Price: $7.37 |
| 44 |
94-3103 |
PLUG-THREADED Price: $5.27 |
| 45 |
94-3110 |
STUD Price: $12.56 |
| 46 |
94-3190 |
DISCONTINUED Price: Call Us |
| 47 |
94-3192 |
HOSE-MANIFOLD Price: $95.23 |
| 48 |
94-3191 |
HOSE-VALVE, PCV Price: $34.83 |
