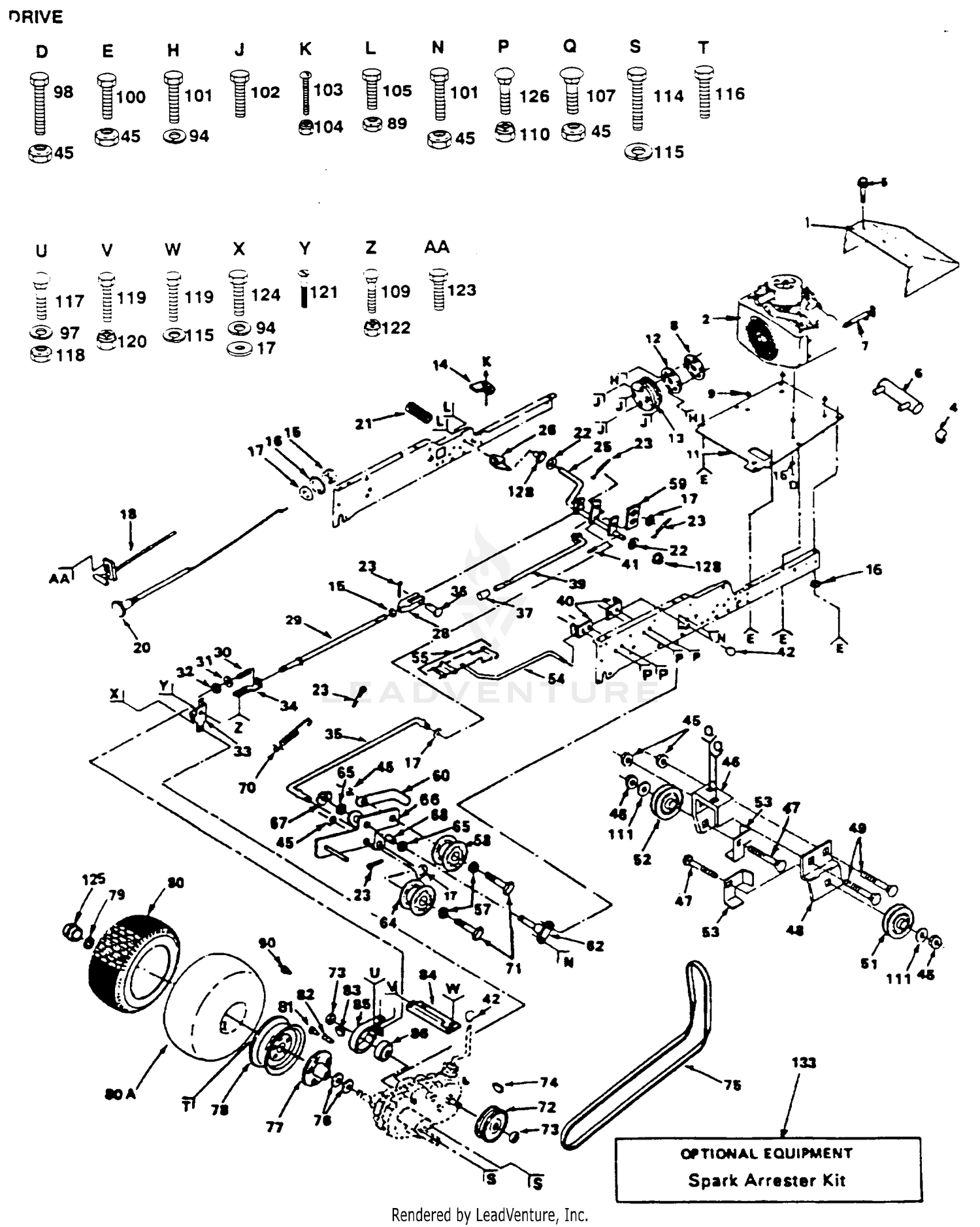

| Ref | Part Number | Description |
|---|
| 1 |
21-5070 |
KEY-SQUARE Price: $5.83 |
| 1 |
532124221 |
Shield, Heat Price: $3.33 |
| 2 |
353-604 |
DISCONTINUED Price: Call Us |
| 2 |
532124165 |
Engine, 18 HP, Kohler, Model #M18S-24639 Price: Call Us |
| 3 |
353-606 |
DISCONTINUED Price: Call Us |
| 4 |
353-607 |
DISCONTINUED Price: Call Us |
| 4 |
532124436 |
Pipe, Exhaust Price: $3.33 |
| 5 |
353-608 |
DISCONTINUED Price: Call Us |
| 5 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 6 |
353-640 |
DISCONTINUED Price: Call Us |
| 6 |
532124532 |
Muffler, Exhaust Price: $157.31 |
| 7 |
353-609 |
DISCONTINUED Price: Call Us |
| 7 |
532009767 |
Valve, Oil Drain (AYP part number) Price: $17.99 |
| 8 |
353-610 |
DISCONTINUED Price: Call Us |
| 8 |
532110947 |
Guard, Chaff (AYP part number) Price: $3.99 |
| 9 |
3257-21 |
DISCONTINUED Price: Call Us |
| 9 |
532110869 |
Spacer (AYP part number) Price: $58.25 |
| 10 |
353-603 |
DISCONTINUED Price: Call Us |
| 11 |
353-613 |
DISCONTINUED Price: Call Us |
| 11 |
532110867 |
Base, Engine (AYP part number) Price: $27.99 |
| 12 |
353-926 |
GEAR This part replaces 353-614. Price: $171.34 |
| 12 |
532104577 |
Adapter (AYP part number) Price: $19.99 |
| 13 |
353-602 |
DISCONTINUED Price: Call Us |
| 13 |
532121355 |
Pulley, Ground Drive (AYP part number) Price: $15.99 |
| 14 |
353-612 |
DISCONTINUED Price: Call Us |
| 14 |
532178575 |
ACTUATOR INTERLOCK SWITCH This part replaces 532005304. Price: $3.99 |
| 15 |
353-615 |
DISCONTINUED Price: Call Us |
| 15 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 16 |
353-616 |
DISCONTINUED Price: Call Us |
| 16 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 17 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 18 |
532132746 |
Control, Throttle This part replaces 532121467. Price: $12.18 |
| 20 |
532132780 |
Control, Choke This part replaces 532121470. Price: $17.99 |
| 21 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 22 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. (AYP part number) Price: $1.99 |
| 23 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) This part replaces 876020312. Price: $1.99 |
| 25 |
532104375 |
Shaft, Foot Pedal (AYP part number) Price: $32.62 |
| 26 |
532104601 |
Bracket, Interlock (AYP part number) Price: $5.46 |
| 28 |
532100604 |
Yoke (AYP part number) Price: $6.16 |
| 29 |
532005308 |
Rod, Brake (AYP part number) Price: $6.12 |
| 30 |
532007241 |
Spring, Compression (AYP part number) Price: $2.99 |
| 31 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 32 |
873680600 |
LOCKNUT This part replaces 873530600. Price: $1.99 |
| 33 |
532677637 |
BRAKE BRACKET This part replaces 532124692. Price: $4.99 |
| 34 |
532007229 |
Guide, Rod, Brake (AYP part number) Price: $10.91 |
| 35 |
532101356 |
Rod, Clutch (AYP part number) Price: $14.29 |
| 36 |
532005102 |
Pin, Clevis (AYP part number) Price: $3.08 |
| 37 |
532071673 |
Cap, Plunger (AYP part number) Price: $3.99 |
| 39 |
532109767 |
Rod, Parking Brake (AYP part number) Price: $10.85 |
| 40 |
532105598 |
Bracket, Rod, Shift (AYP part number) Price: $3.99 |
| 41 |
532005142 |
Pin, Roll 3/16 x 1-1/4 (AYP part number) Price: $3.99 |
| 42 |
532121466 |
Knob (AYP part number) Price: $3.99 |
| 45 |
873680600 |
Locknut 3/8-16 Price: $1.99 |
| 46 |
532121063 |
Bracket, V-Pulley, Drive, Mule (AYP part number) Price: $14.99 |
| 47 |
872110614 |
Bolt, Carriage 3/8-16 x 1-3/4 (AYP part number) Price: $3.99 |
| 48 |
532122825 |
Bracket, Idler, Flat (AYP part number) Price: $2.42 |
| 49 |
872140606 |
Bolt, Carriage 3/8-16 x 3/4 (AYP part number) Price: $3.99 |
| 51 |
532102403 |
Idler, Flat (AYP part number) Price: $22.99 |
| 52 |
532101344 |
Pulley, Idler (AYP part number) Price: $19.99 |
| 53 |
532122824 |
Keeper, Belt (AYP part number) Price: $8.99 |
| 54 |
532122253 |
Rod, Shift, Hi - Lo (AYP part number) Price: $14.99 |
| 55 |
532122268 |
Connecting Link, Spring Clip (AYP part number) Price: $3.99 |
| 57 |
819131413 |
Washer 13/32 x 7/8 x 13 Ga. (AYP part number) Price: $2.99 |
| 58 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532104360. Price: $14.99 |
| 59 |
532121358 |
Retainer, Spring (AYP part number) Price: $2.38 |
| 60 |
532121360 |
Retainer, Belt (AYP part number) Price: $2.99 |
| 62 |
532101358 |
Bracket Assembly, Clutch (AYP part number) Price: $27.21 |
| 64 |
532139123 |
Pulley, V-Idler (AYP part number) This part replaces 532121361. Price: $22.99 |
| 65 |
532000207 |
Washer, Hardened (AYP part number) Price: $3.99 |
| 66 |
532121356 |
Bracket, Clutch w/Bearing (Incl. Key No. 68) (AYP part number) Price: $12.75 |
| 67 |
812000039 |
Klip Ring (AYP part number) Price: $3.99 |
| 68 |
532105706 |
Bearing, Idler (AYP part number) Price: $3.99 |
| 70 |
532121357 |
Spring, Extension (AYP part number) Price: $9.08 |
| 71 |
582740701 |
BOLT This part replaces 874760628. Price: $2.99 |
| 72 |
532120332 |
Pulley, Transaxle (AYP part number) Price: $22.99 |
| 73 |
532009204 |
Locknut 1/2-20 (AYP part number) Price: $2.38 |
| 74 |
532009858 |
KEY This part replaces 532124708. Price: $5.39 |
| 75 |
532110883 |
V-Belt (AYP part number) Price: $22.99 |
| 76 |
532007563 |
Washer, Thrust, Axle (AYP part number) Price: $4.99 |
| 77 |
532634692 |
HUB.ASSEMBLY.WHEEL.REAR This part replaces 532124683. Price: $44.99 |
| 78 |
532106277 |
RIM.ASM.12"REAR.SILVER This part replaces 532125070. Price: $139.99 |
| 79 |
812000034 |
Klip, Ring (AYP part number) Price: $2.99 |
| 80 |
532122077 |
TIRE.REAR.TS.(23X10.5X12) This part replaces 532004607. Price: $279.99 |
| 80A |
532007154 |
Tube, Rear (AYP part number) Price: $49.99 |
| 81 |
532059192 |
Cap, Valve (AYP part number) Price: $3.99 |
| 82 |
532065139 |
Stem, Valve (AYP part number) Price: $5.99 |
| 83 |
532125096 |
Key, Woodruff #9 (3/16 x 3/4) (AYP part number) Price: $3.99 |
| 84 |
532156404 |
This part replaces 532120404. Price: $6.60 |
| 85 |
532101122 |
Band, Brake (AYP part number) Price: $54.99 |
| 86 |
532000214 |
Drum, Brake (AYP part number) Price: $18.29 |
| 89 |
873680400 |
Nut, Crownlock 1/4-20 (AYP part number) Price: $2.99 |
| 90 |
532124860 |
Fitting, Grease (AYP part number) Price: $3.99 |
| 94 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 97 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 98 |
874760620 |
BOLT This part replaces 874780620. Price: $3.99 |
| 100 |
874760612 |
Bolt, Hex 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 101 |
874780616 |
Bolt, Hex 3/8-16 x 1 Gr. 5 (AYP part number) Price: $3.99 |
| 102 |
817190516 |
Screw, Hex 5/16-18 x 1 (AYP part number) Price: Call Us |
| 103 |
874321016 |
Screw, Fin #10-24 x 1 (AYP part number) Price: $2.99 |
| 104 |
532069180 |
Locknut #10-24 (AYP part number) This part replaces 873631000. Price: $2.99 |
| 105 |
874760412 |
Bolt, Hex 1/4-20 x 3/4 (AYP part number) Price: $3.99 |
| 107 |
872110606 |
Bolt, Carriage 3/8-16 x 3/4 Gr. 5 (AYP part number) Price: $2.99 |
| 109 |
872110506 |
Bolt, Carriage 5/16-18 x 3/4 (AYP part number) Price: $3.99 |
| 110 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 111 |
819131612 |
Washer 13/32 x 1 x 12 Ga. (AYP part number) Price: $3.99 |
| 114 |
874780720 |
BOLT, HEX This part replaces 874760720. Price: $3.99 |
| 115 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 116 |
532140080 |
HUB BOLT This part replaces 532001304. Price: $2.99 |
| 117 |
872140405 |
Bolt, Carriage 1/4-20 x 5/8 (AYP part number) Price: $3.99 |
| 118 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 119 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 This part replaces 874760716. Price: $2.99 |
| 120 |
873680700 |
Nut, Crownlock 7/16-14 (AYP part number) Price: $2.99 |
| 121 |
874370612 |
Screw, Mach. Udrcut. Flat Head, 3/8-16 x 3/4 (AYP part number) Price: $2.99 |
| 122 |
532124949 |
Locknut 5/16-18 (AYP part number) Price: $3.99 |
| 123 |
817720410 |
Screw, Hex 1/4-20 x 1/2 (AYP part number) Price: $5.99 |
| 124 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 125 |
532104758 |
Cap, Axle, Rear (AYP part number) Price: $3.33 |
| 126 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 128 |
532110895 |
Nyliner (AYP part number) Price: $3.10 |
