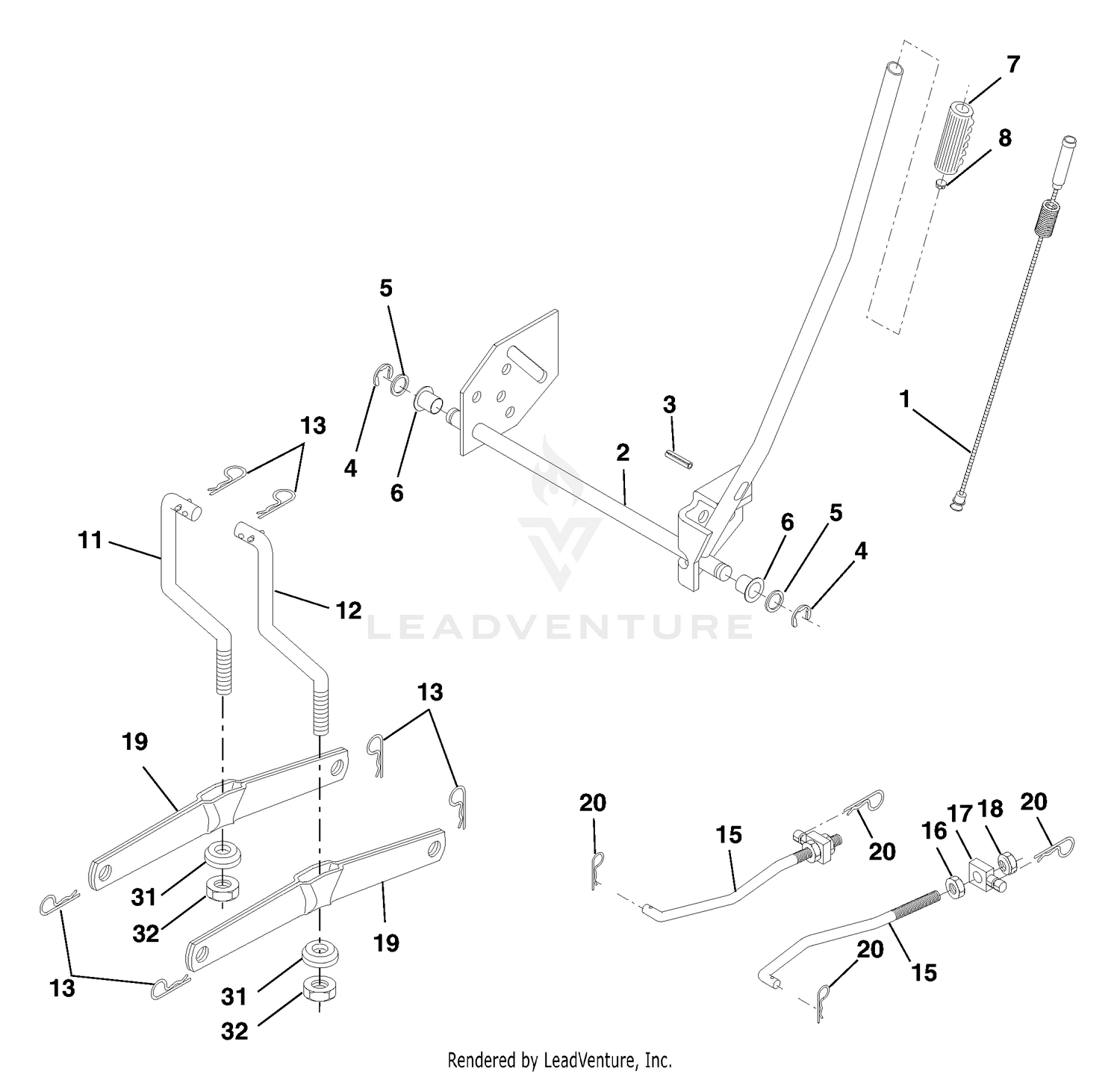

Mower Lift

Mower Lift

Parts (35)

RefPart NumberDescription
1 10-8110 WASHER-THRUST Price: $1.09
1 159461 Wire Asm Inner/Sprg w/Plunger Price: Call Us
2 159476 Shaft Asm Lift Price: Call Us
2 21-0141 RH BALL JOINT ASM Price: $109.12
3 178981 Pin Groove Price: Call Us
3 21-0151 LH BALL JOINT ASM Price: $126.28
4 12000002 E Ring #5133-62 Price: Call Us
4 256-121 WASHER-THRUST Price: $4.55
5 19211621 Washer 21/32 x 1 x 21 Ga. Price: Call Us
6 120183X Bearing Nylon Price: Call Us
6 32151-36 RING-RETAINING Price: $1.73
7 109413X Grip Handle Price: Call Us
7 32151-77 RING-RETAINING, EXTERNAL Price: $4.07
8 124526X Button Plunger Price: Call Us
8 3220-12 NUT-HEX JAM LH Price: $1.83
9 3220-3 NUT-HJ Price: $0.28
10 3220-5 NUT-JAM Price: $0.65
11 139865 Link Lift Lh Price: Call Us
11 3234-13 SCREW-HHF Price: $0.77
12 139866 Link Lift Rh Price: Call Us
12 5-1226 WASHER Price: $3.90
13 4939M Retainer Spring Price: Call Us
13 66-2990 CAP-SPINDLE Price: $13.27
14 99-6935-03 REAR AXLE ASM Price: $972.14
15 173288 Link Front Price: Call Us
15 75-4410-03 DISCONTINUED Price: Call Us
16 73350800 Nut Jam Hex 1/2-13 unc Price: Call Us
16 75-3130-03 ROD-TIE Price: $74.06
17 175689 Trunnion Blk Zinc Price: Call Us
18 73800800 Nut Lock w/Wsh 1/2-13 unc Price: Call Us
18 76-2980 WASHER-THRUST Price: $5.08
19 139868 Arm Suspension Rear Price: Call Us
19 93-7000-03 SPINDLE-RH Price: $370.29
20 163552 Retainer Spring Price: Call Us
31 169865 Bearing Pvt Lift Price: Call Us
