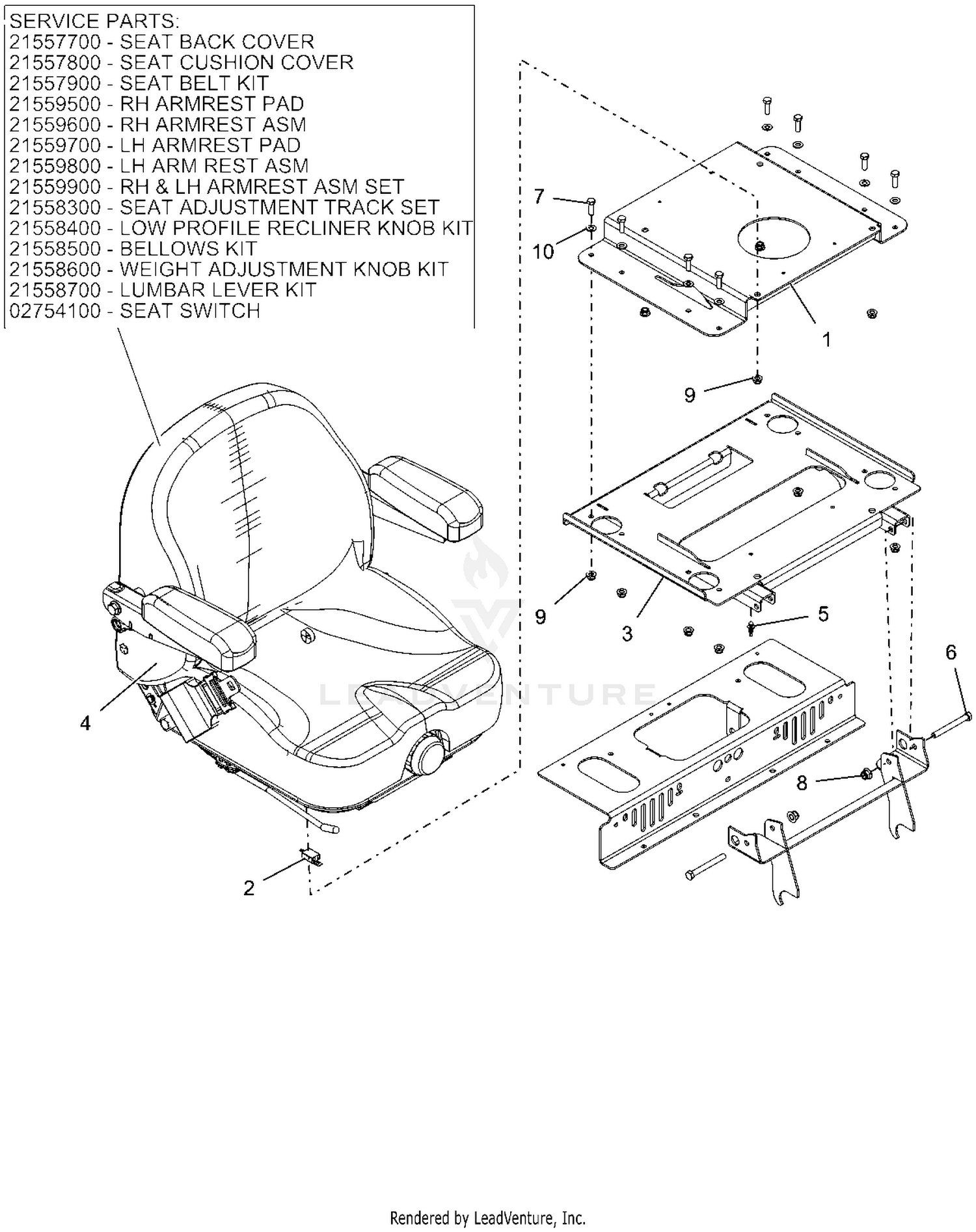

| Ref | Part Number | Description |
|---|
| 1 |
05254653 |
WLDMT, SEAT PLATE (RED) This part replaces 04671153. Price: $173.45 |
| 2 |
04782800 |
HARNESS, PT200 SEAT ADAPTER Price: $35.95 |
| 3 |
04876953 |
SEAT ISO MOUNTING WLDMT - RED Price: $101.95 |
| 4 |
09680600 |
SEAT- FULL SUSPENSION This part replaces 04876000. Price: $744.95 |
| 5 |
07500040 |
CABLE TIE W/ TREE (.25 HOLE) Price: $3.45 |
| 6 |
05901817 |
BLT, HEX .38-16X3.25 G5 ZCC This part replaces 05961100. Price: $3.95 |
| 7 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 8 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 9 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
