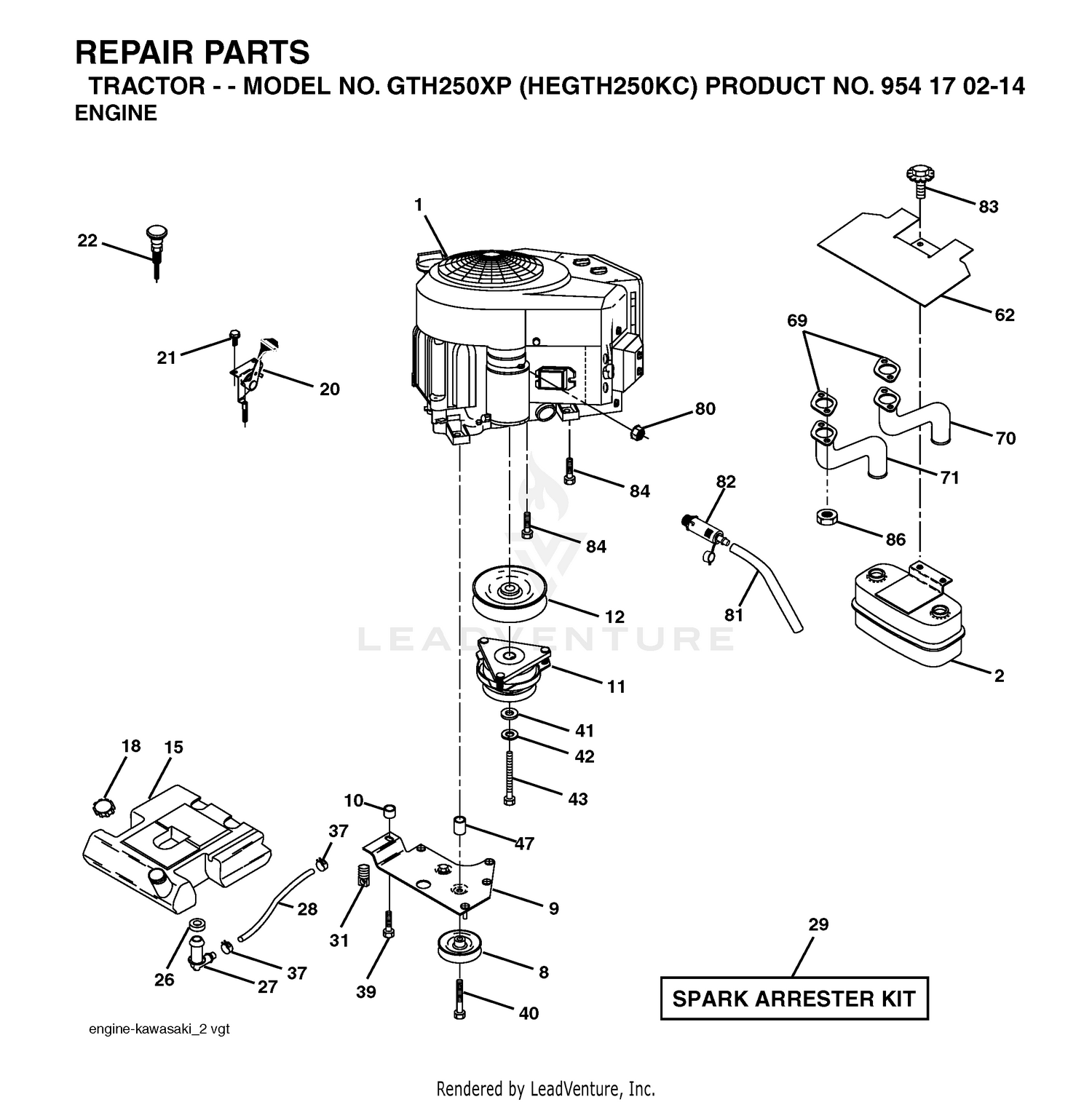

| Ref | Part Number | Description |
|---|
| 1 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 1 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 2 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 3 |
217-103 |
BOLT-WHEEL Price: $2.51 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 4 |
93-0181 |
TIRE (11-14) 8 PLY Price: $212.68 |
| 5 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 6 |
93-0182 |
DISCONTINUED Price: Call Us |
| 7 |
242-54 |
HUB Price: $168.31 |
| 7 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 8 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE Price: $12.99 |
| 9 |
532407908 |
NEEDS DESCRIPTION Price: Call Us |
| 10 |
253-127 |
SEAL Price: $74.45 |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 10 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 11 |
93-4009 |
DISCONTINUED Price: Call Us |
| 12 |
32104-96 |
SCREW-HH Price: $5.59 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 12 |
532422111 |
ARM.IDLER.BRAKE.BLACK This part replaces 532410420. Price: $12.99 |
| 13 |
20-9580 |
ROPE-LATCH Price: $47.65 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
13-6910-01 |
SPACER-GUIDE, ROPE This part replaces 13-6910. Price: $18.39 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 15 |
13-6890-01 |
GUIDE-ROPE This part replaces 13-6890. Price: $119.16 |
| 15 |
532179115 |
TANK.FUEL.5.0 LEFT.FILL.YTGT Price: $89.99 |
| 15 |
532408007 |
BELT.V.IMPELLER Price: $37.99 |
| 16 |
2412-40 |
CLAMP-CONDUIT Price: $6.72 |
| 16 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 17 |
3-3107 |
BUMPER-PEDAL, CLUTCH Price: $3.80 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532184804. Price: $27.99 |
| 18 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 18 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 19 |
235-15 |
GRIP-HANDLE Price: $11.84 |
| 19 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 20 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 20 |
532178147 |
CONTROL.THROTTLE.COBRA.42"BLK. Price: $29.99 |
| 20 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 21 |
3218-3 |
NUT-JAM Price: $0.25 |
| 21 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 22 |
323-8 |
SCREW-HH Price: $1.20 |
| 22 |
532175441 |
CHOKE CONTROL This part replaces 532178148. Price: $24.99 |
| 22 |
532409475 |
SPACER.ENGINE.PULLEY Price: $7.99 |
| 23 |
13-3930-01 |
TANK-GAS W/CAP This part replaces 13-3930. Price: $924.40 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 24 |
222-8 |
CAP-GAS Price: $65.84 |
| 24 |
532426491 |
PULLEY.IMPELER. This part replaces 532179157. Price: $14.99 |
| 25 |
13-3960 |
STRAP ASM Price: $121.74 |
| 25 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 25 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 26 |
13-3970 |
STRIP-FELT Price: $13.69 |
| 26 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 27 |
93-7709 |
PAD Price: $6.23 |
| 28 |
53-4420 |
DECAL-GAS Price: $10.56 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532007834. Price: $5.99 |
| 28 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 29 |
13-3970 |
STRIP-FELT Price: $13.69 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
532443030 |
COVER.ASM.BELT.EURO.TRIMMED This part replaces 532192213. Price: $27.99 |
| 30 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 30 |
532178830 |
COVER.STORAGE.SNOW Price: $2.99 |
| 31 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 31 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 32 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 32 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $3.99 |
| 33 |
32104-109 |
SCREW-HWH Price: $0.87 |
| 33 |
532415433 |
BRACKET.SHIFTER.PLATE.BZP Price: $3.99 |
| 34 |
110-7501 |
HOSE-FUEL This part replaces 94-4522. Price: $12.75 |
| 34 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 35 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 35 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 36 |
2412-93 |
CLAMP-R Price: $1.02 |
| 36 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 37 |
13-7460 |
PLATE-HITCH, CAUTION Price: $30.27 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
532415435 |
PLATE.CLUTCH.BZP Price: $2.99 |
| 38 |
3290-55 |
RIVET-POP Price: $0.25 |
| 38 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 39 |
532416864 |
BRACKET.CLUTCH.PLATE.BZP Price: $3.99 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 39 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 40 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 41 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 42 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 43 |
532415450 |
PLATE.SHIFTER.BZP Price: $6.99 |
| 44 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
532410877 |
PAN.BOTTOM.PLASTIC Price: $19.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 47 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 48 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 49 |
532415340 |
FRAME.WELD.PNT.003BGP Price: $50.99 |
| 50 |
532403215 |
PLATE.REAR Price: $5.23 |
| 51 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
598672770 |
Keys This part replaces 532193071. Price: $5.99 |
| 56 |
583748701 |
PLATE.ENGINE.MOUNT.ORANGE This part replaces 532417071. Price: $24.99 |
| 57 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
| 62 |
532176252 |
HEAT SHIELD Price: $5.59 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
532175766 |
TUBE EXHAUST LH Price: $48.99 |
| 71 |
532175767 |
TUBE.EXHAUST.KAWASAKI.RH Price: $54.99 |
| 80 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
