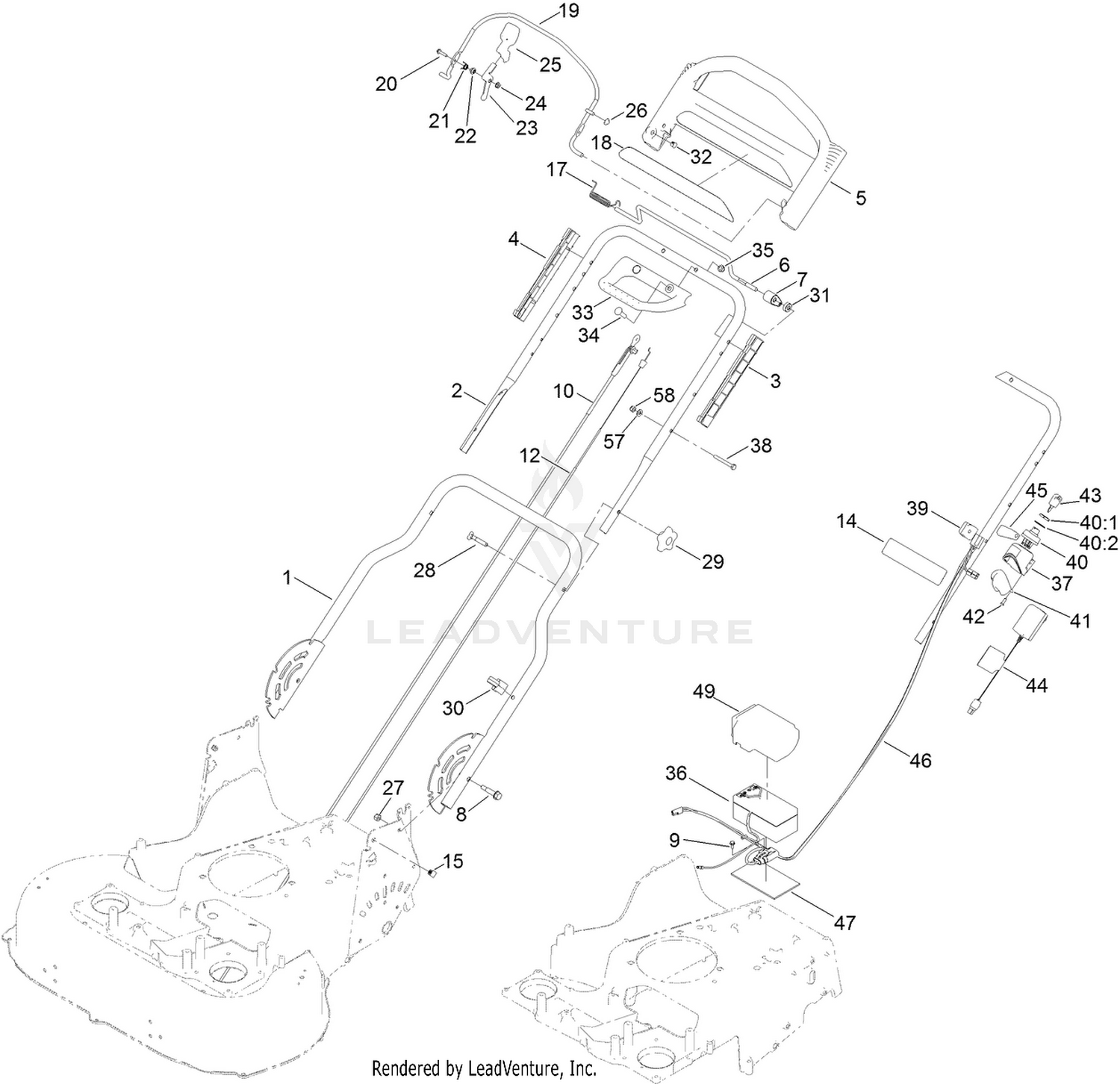

Handle Assembly
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-5204-05 | HANDLE-LOWER Price: $63.28 |
| 2 | 132-4484-05 | HANDLE-UPPER Price: $34.82 |
| 3 | 105-6842 | GUIDE-LH Price: $5.65 |
| 4 | 105-6841 | GUIDE-RH Price: $5.65 |
| 5 | 104-8678 | HANDLE-CONTROL Price: $53.94 |
| 6 | 136-7150 | BAR-CONTROL, TRACTION Price: $10.75 |
| 7 | 127-6842 | LEVER-TRACTION Price: $2.75 |
| 8 | 139-1694 | BOLT-SHOULDER, HHF Price: $2.14 |
| 9 | 139-1713 | SCREW-TAPTITE Price: $0.21 |
| 10 | 133-1998 | CABLE-BRAKE Price: $27.28 |
| 12 | 127-6867 | CABLE-TRACTION Price: $16.78 |
| 14 | 140-4357 | DECAL-BATTERY CHARGING Price: $5.58 |
| 15 | 132-4516 | PLUG-SQUARE Price: $0.66 |
| 17 | 136-7166 | SPRING-TORSION Price: $2.17 |
| 18 | 120-3911 | DECAL-HANDLE Price: $9.21 |
| 19 | 108-3788-03 | BAIL-BRAKE Price: $27.90 |
| 20 | 106-9169 | SCREW-HWH Price: $5.20 |
| 21 | 107-7462 | SPRING-TORSION Price: $5.35 |
| 22 | 107-7463 | SPACER Price: $2.27 |
| 23 | 138-3220 | LEVER Price: $1.73 |
| 24 | 139-1712 | NUT-HEX FLANGE Price: $0.58 |
| 25 | 112-8884 | KNOB Price: $3.38 |
| 26 | 3290-337 | NUT-SPEED Price: $1.41 |
| 27 | 119-4038 | NUT-HEX Price: $0.31 |
| 28 | 137-3107 | SCREW-HANDLE Price: $1.20 |
| 29 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 30 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 31 | 130-2343 | SPACER Price: $0.70 |
| 32 | 104-9368 | PLUG-DOME Price: $0.19 |
| 33 | 131-0847 | HANDLE-ASSIST, TRACTION Price: $9.75 |
| 34 | 139-1702 | BOLT-CARRIAGE Price: $0.92 |
| 35 | 137-4808 | NUT-ACORN Price: $1.13 |
| 36 | 106-8397 | BATTERY-WET Price: $55.81 |
| 37 | 108-3795 | HOUSING-SWITCH, KEY Price: $13.72 |
| 38 | 137-3034 | SCREW-HH Price: $0.70 |
| 39 | 92-7729 | ANCHOR-CABLE, UPPER Price: $3.06 |
| 40 | 23-0660 | SWITCH-STARTER Price: $21.99 |
| 41 | 108-3796 | COVER-SWTCH Price: $3.63 |
| 42 | 139-1703 | SCREW-PLASTIC, PPH Price: $0.29 |
| 43 | 700918 | KEY Price: $4.37 |
| 44 | 137-9153 | CHARGER, BATTERY (12V, CE) Price: $34.34 |
| 45 | 108-9751 | DECAL-SWITCH, IGNITION Price: $5.11 |
| 46 | 136-5895 | HARNESS-WIRE Price: $76.17 |
| 47 | 108-0987 | FOAM-BATTERY Price: $1.89 |
| 49 | 120-3329 | COVER-BATTERY Price: $4.18 |
| 57 | 139-1699 | WASHER-FLAT Price: $0.68 |
| 58 | 137-3094 | NUT-HEX Price: $0.34 |
