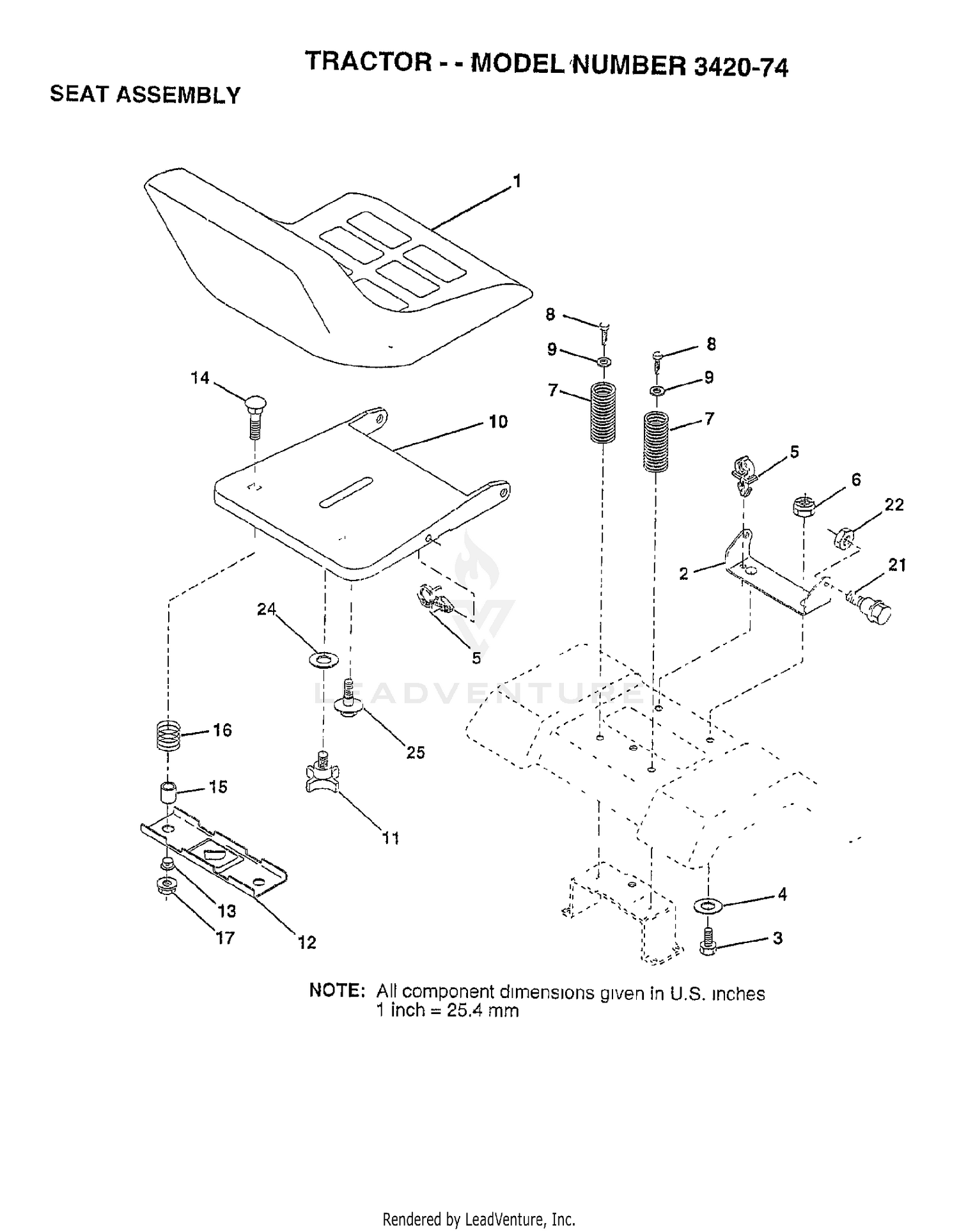

| Ref | Part Number | Description |
|---|
| 1 |
532127429 |
Seat V550 Blk/blk Std (AYP part number) Price: $129.99 |
| 1 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 2 |
532126656 |
Bracket, Pivot Seat (AYP part number) This part replaces 532105513. Price: $5.46 |
| 2 |
93-8743 |
FOOTPAD-TURN This part replaces 27-7580. Price: $27.95 |
| 3 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 3 |
93-8743 |
FOOTPAD-TURN This part replaces 27-7570. Price: $27.95 |
| 4 |
323-6 |
SCREW-HH Price: $0.66 |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 6 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 7 |
3218-5 |
NUT-JAM Price: $0.27 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
21-2850-01 |
MOUNT-PEDAL, RH This part replaces 21-2850. Price: $69.64 |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $3.99 |
| 9 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $14.99 |
| 11 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 12 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 13 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 14 |
27-9530 |
DISCONTINUED Price: Call Us |
| 14 |
872050411 |
BOLT CARRIAGE 1/4-20X1 3/8 Price: $2.99 |
| 15 |
33-4350 |
DISCONTINUED Price: Call Us |
| 15 |
532121249 |
SPACER SPLIT Price: $3.99 |
| 16 |
24-2000 |
DISCONTINUED Price: Call Us |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
24-2090 |
STEERING WHEEL CAP Price: $30.55 |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 18 |
233-17 |
KNOB Price: $10.58 |
| 19 |
27-7660 |
DISCONTINUED Price: Call Us |
| 20 |
27-7300 |
DISCONTINUED Price: Call Us |
| 21 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $1.99 |
| 22 |
28-5190 |
DISCONTINUED Price: Call Us |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 23 |
28-5130 |
TRACTION PEDAL PAD Price: $33.21 |
| 24 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 26 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 27 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 28 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 29 |
28-5160-01 |
DISCONTINUED This part replaces 28-5160. Price: Call Us |
| 30 |
28-5210 |
TRACT PEDAL SHAFT Price: $48.49 |
| 31 |
28-5240 |
DISCONTINUED Price: Call Us |
| 32 |
23-2240-03 |
PUMP CONTROL TUBE ASM This part replaces 23-2240. Price: $209.72 |
| 33 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 34 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 35 |
283-30 |
PIN-CLEVIS Price: $0.35 |
| 36 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 37 |
3220-5 |
NUT-JAM Price: $0.65 |
| 38 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 39 |
26-9760 |
DISCONTINUED Price: Call Us |
| 40 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 41 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 42 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 43 |
27-7590-01 |
BRAKE MT WA This part replaces 27-7590. Price: $239.14 |
| 44 |
3217-7 |
NUT-HEX Price: $0.28 |
| 45 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 46 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM This part replaces 27-9270. Price: $81.41 |
| 47 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 48 |
27-7640-01 |
SHAFT-BRAKE LATCH ASM This part replaces 27-7640. Price: $62.42 |
| 49 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 50 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 51 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 52 |
302-5 |
FITTING-GREASE Price: $0.59 |
