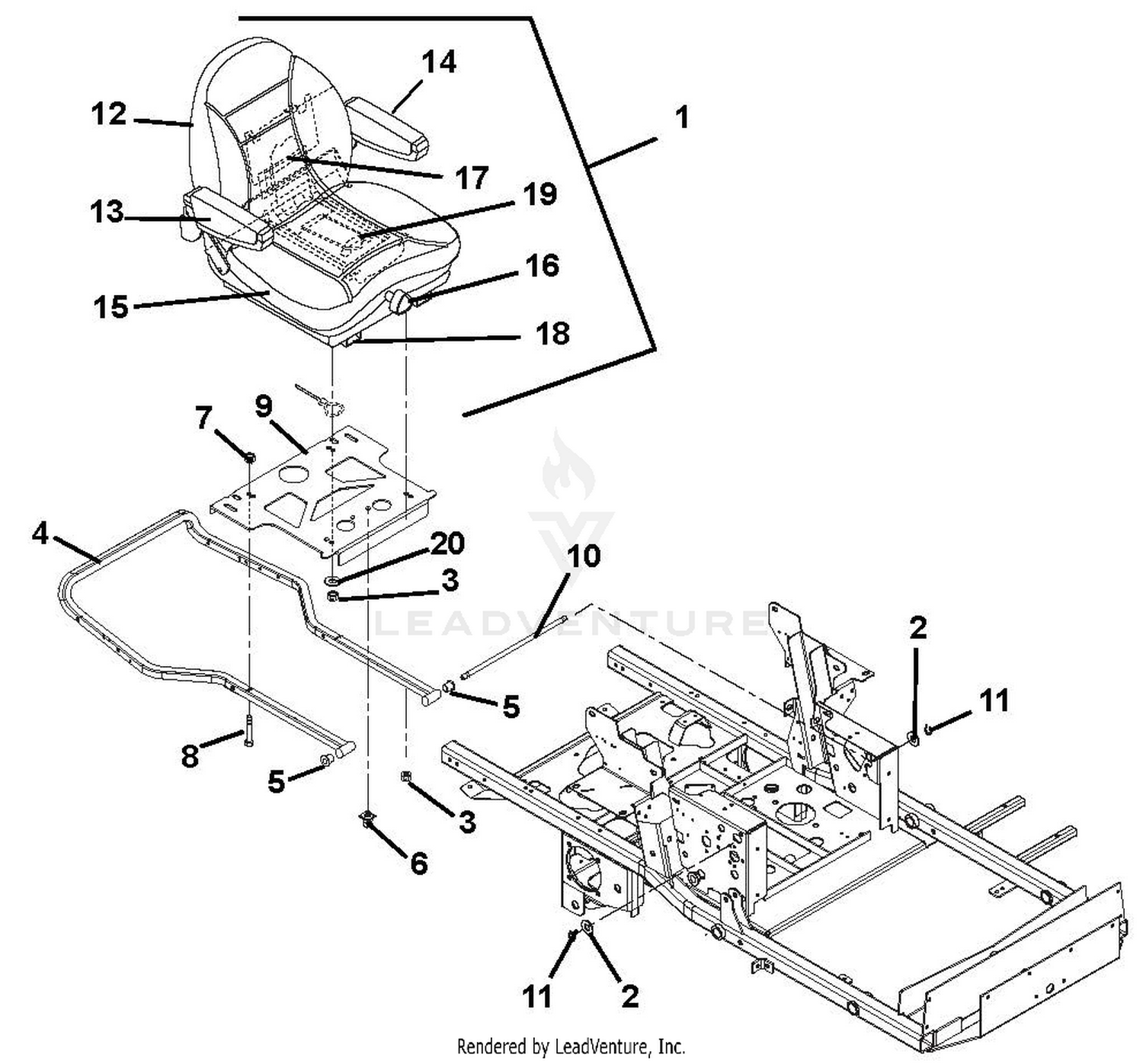

| Ref | Part Number | Description |
|---|
| 1 |
03947200 |
SEAT-SUSP-LT GRY-SEAT BLT BUSH Price: $715.95 |
| 2 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 3 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 5 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 6 |
07534100 |
CLIP-.38 Price: $8.95 |
| 7 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 8 |
07056300 |
BLT, .38-16X1.50 RIB NECK YWZC Price: Call Us |
| 9 |
03259951 |
PLATE, SEAT (200 VERT.) Price: $99.95 |
| 10 |
09245400 |
ROD - SEAT FRAME PIVOT Price: $101.95 |
| 11 |
05717100 |
RG-RTNG-EXT .500X.050 (SNAP) Price: $2.45 |
| 12 |
59208800 |
KIT-BACK CUSHION-LIGHT GRAY Price: $333.95 |
| 13 |
59210400 |
KIT-RH ARMREST ASSEMBLY REPLAC Price: $109.95 |
| 14 |
59210500 |
KIT-LH ARMREST ASSEMBLY REPLAC Price: $109.95 |
| 15 |
59208900 |
KIT-SEAT CUSHION-LIGHT GRAY Price: $203.95 |
| 16 |
59208000 |
KIT-SEAT KNOB Price: $26.95 |
| 17 |
59208100 |
KIT-SEAT BACK PANEL Price: $138.95 |
| 18 |
59207900 |
KIT-SEAT SLIDE Price: $172.45 |
| 19 |
59207800 |
KIT-SPRING AND SADDLE Price: $144.45 |
