| Ref | Part Number | Description |
|---|
| 1 |
3274-71 |
SCREW-HSH Price: $2.71 |
| 1 |
539106217 |

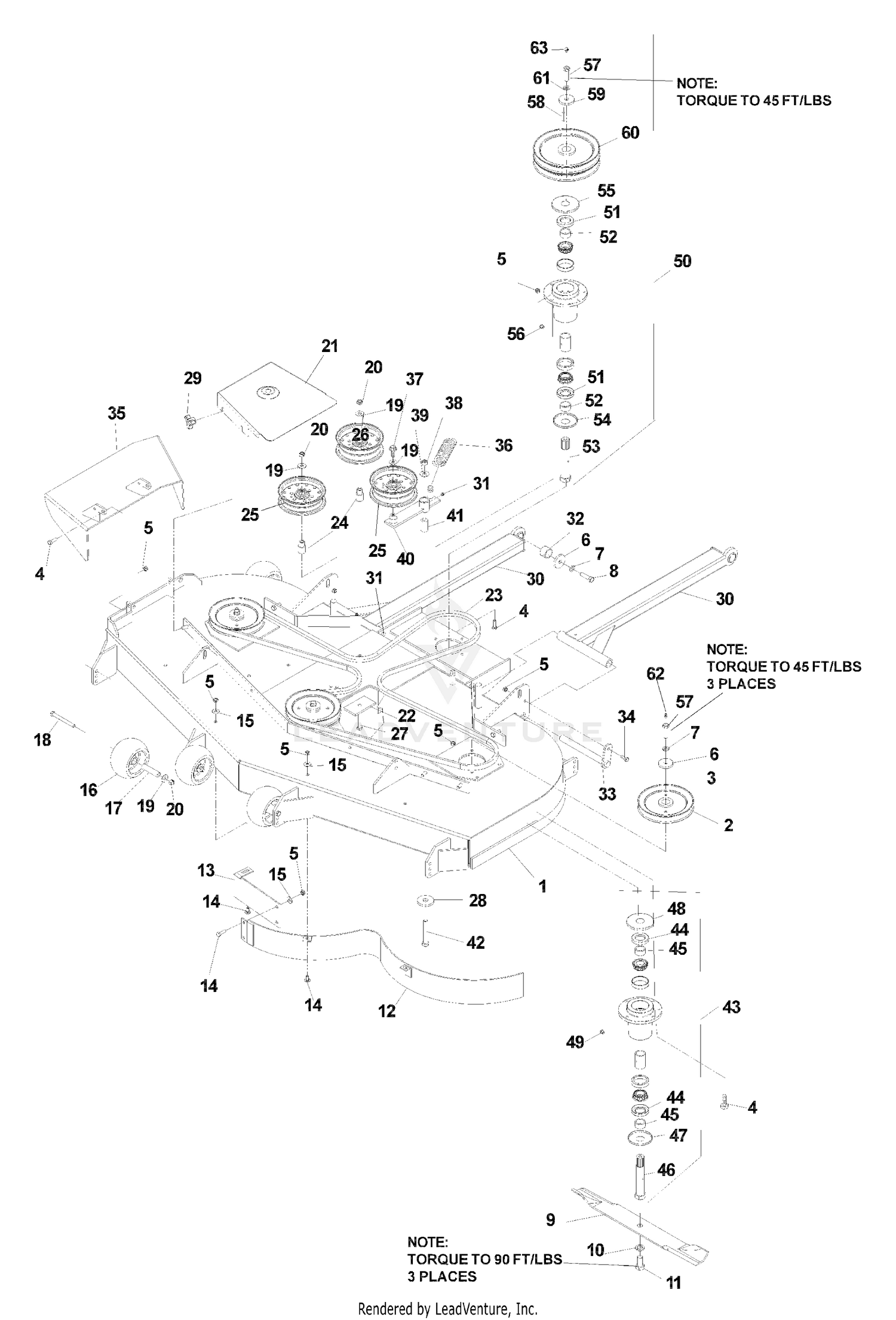

DECK W/DECALS 61" HUS WSL Price: $1,007.99 |
| 2 |
539112125 |
PULLEY, 61 This part replaces 539107278. Price: $29.99 |
| 4 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 4 |
86-5620 |
BEARING-BALL, 2 BOLT FLANGE Price: $103.16 |
| 5 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 5 |
84-1320-03 |
SHAFT-PTO This part replaces 84-1320. Price: $276.98 |
| 6 |
100-2592 |
SCREW-HHF This part replaces 66-9303. Price: $9.09 |
| 6 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 7 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 7 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 8 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 8 |
539100141 |
HCS 7/16F X 1 1/2 Price: $7.99 |
| 9 |
539101733 |
BLADE OEM 21" (61" DECK) Price: $18.99 |
| 9 |
86-5470 |
DISCONTINUED Price: Call Us |
| 10 |
2412-109 |
CLIP-J Price: $3.82 |
| 10 |
539990333 |
LOCKWASHER 5/8 Price: $2.99 |
| 11 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 11 |
539103299 |
HCS 5/8F X 1 1/4 Price: $5.99 |
| 12 |
325-14 |
SCREW-HH Price: $2.64 |
| 12 |
539105465 |
MAIN BAFFLE - 61" BLK Price: $159.99 |
| 13 |
106-1061 |
CLUTCH ADAPTER KIT This part replaces 84-1410. Price: $263.30 |
| 13 |
539105461 |
CENTER BAFFLE - 61 Price: $79.99 |
| 14 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 14 |
92-5818-03 |
HOUSING This part replaces 92-5818. Price: $554.35 |
| 15 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 15 |
88-1140 |
SPACER-BEARING, LOWER Price: $16.29 |
| 16 |
251-310 |
BEARING-BALL Price: $140.09 |
| 16 |
539102643 |
ANTI-SCALP ROLLER Price: $8.99 |
| 17 |
539102698 |
BUSHING Price: $29.99 |
| 17 |
84-0180 |
DISCONTINUED Price: Call Us |
| 18 |
539102754 |
HCS 3/8C X 3 1/2 Price: $3.99 |
| 18 |
84-1540 |
KEY-CLUTCH Price: $18.26 |
| 19 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 19 |
88-1170 |
V-BELT (MATCHED SET) Price: $105.24 |
| 20 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 21 |
539108611 |
BELT SHIELD 61" RIGHT Price: $27.99 |
| 21 |
84-1570 |
SPACER-PLATE Price: $14.75 |
| 22 |
596770301 |
Washers This part replaces 539103303. Price: $4.99 |
| 22 |
84-1550 |
MOUNT-RUBBER Price: $27.49 |
| 23 |
539106340 |
BELT, DECK Price: $99.99 |
| 23 |
88-1510 |
SCREW-SPECIAL Price: $9.28 |
| 24 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 24 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 25 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 25 |
86-3030 |
COVER-WIRE Price: $1.22 |
| 26 |
539103258 |
IDLER PULLEY (TALL) Price: $44.99 |
| 26 |
84-1560 |
WASHER-THRUST Price: $2.71 |
| 27 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 27 |
596434201 |
Bolts This part replaces 539990637. Price: $3.99 |
| 28 |
32128-49 |
NUT-HHF Price: $1.04 |
| 28 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 29 |
325-9 |
SCREW-HH Price: $1.87 |
| 29 |
539102070 |
KNOB, THREE PRONG Price: $4.99 |
| 30 |
539107751 |
STRUT WELDMT, L.H. Price: $139.99 |
| 30 |
88-1450 |
LOCKNUT-BEARING Price: $32.99 |
| 31 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 31 |
86-5820 |
DISCONTINUED Price: Call Us |
| 32 |
539106401 |
SPACER, STRUT Price: $9.99 |
| 32 |
88-1460 |
WASHER-LOCK Price: $13.85 |
| 33 |
539105480 |
PIN WELDMENT Price: $32.99 |
| 33 |
88-1150 |
SPACER-CLUTCH Price: $31.20 |
| 34 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 34 |
92-5817 |
PIN-STOP, CLUTCH Price: $18.86 |
| 35 |
539106512 |
CHUTE 61 ORANGE Price: $109.99 |
| 35 |
88-1280 |
COVER-BELT, LOWER Price: $156.55 |
| 36 |
3256-70 |
WASHER-FLAT Price: $0.25 |
| 36 |
539105192 |
DECK SPRING Price: $13.99 |
| 37 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 37 |
98-7254 |
KIT - CLUTCH REPLACEMENT This part replaces 86-5610. Price: $2,193.47 |
| 38 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 38 |
84-1580 |
WASHER-CLUTCH Price: $30.33 |
| 39 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 39 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 40 |
539103230 |
IDLER ARM Price: $159.99 |
| 40 |
86-3040 |
COUPLER-LINE, DRIVE Price: $381.88 |
| 41 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 41 |
539103427 |
PIVOT BUSHING Price: $7.99 |
| 42 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 42 |
86-1990 |
WASHER-THRUST Price: $1.81 |
| 43 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 43 |
966956101 |
KIT HSG ASM 52/61 This part replaces 539108773. Price: $129.99 |
| 44 |
539108754 |
SHAFT SEAL Price: $6.99 |
| 45 |
539108758 |
SPACER Price: $1.55 |
| 46 |
539112122 |
SPINDLE 52/61 This part replaces 539108760. Price: $27.99 |
| 47 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 48 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 49 |
539977326 |
PLUG-VENTED Price: $8.99 |
| 50 |
539112263 |
BAM L44 JACKSHAFT ASM LOWER This part replaces 539108768. Price: $649.99 |
| 51 |
539108754 |
SHAFT SEAL Price: $6.99 |
| 52 |
539108758 |
SPACER Price: $1.55 |
| 53 |
539108767 |
JACKSHAFT SPINDLE Price: $84.99 |
| 54 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 55 |
539108450 |
TOP DUST CAP Price: $4.99 |
| 56 |
539977326 |
PLUG-VENTED Price: $8.99 |
| 57 |
539112120 |
HCS 7/16-20 GD 8 SPEC This part replaces 539108766. Price: $24.99 |
| 58 |
539101995 |
KEY 1/4 SQ X 1 1/8 Price: $2.99 |
| 59 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 60 |
539106346 |
SHEAVE WSL Price: $93.99 |
| 61 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 62 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
