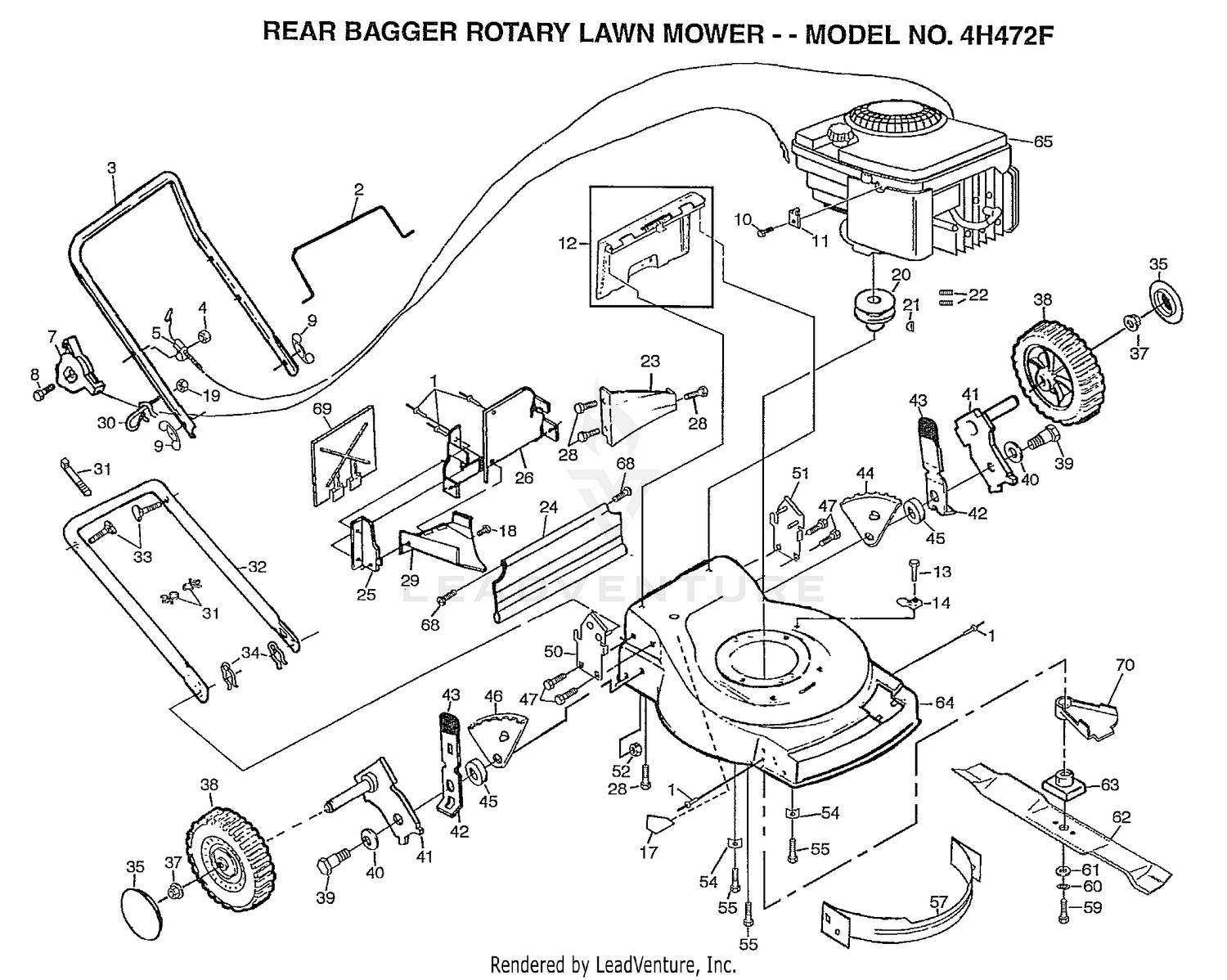

| Ref | Part Number | Description |
|---|
| 1 |
128415 |
BLIND RIVET Price: Call Us |
| 1 |
3220-7 |
NUT-JAM Price: $4.09 |
| 2 |
146771 |
BAIL.CNTRL.DLX.ST Price: Call Us |
| 2 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 3 |
149637X479 |
SUB= 154480X479 Price: Call Us |
| 4 |
63601 |
SUB= 73800400 Price: Call Us |
| 4 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
| 5 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 7 |
67-9410 |
WASHER Price: $2.04 |
| 8 |
144929 |
SCREW.HXHD.WASH. Price: Call Us |
| 8 |
32128-45 |
NUT-HHF Price: $7.67 |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 10 |
83816 |
SCREW PM Price: Call Us |
| 11 |
213146 |
CABLE CLAMP Price: Call Us |
| 11 |
67-7300 |
SCREW-HH Price: $81.39 |
| 12 |
151023 |
KIT.DOOR.REAR Price: Call Us |
| 12 |
67-7250 |
SPACER-RING Price: $3.32 |
| 13 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 13 |
750097 |
TAPPING SCREW Price: Call Us |
| 14 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 14 |
87930 |
GUIDE CLIP PM Price: Call Us |
| 15 |
115-4525 |
CYLINDER ASM This part replaces 76-2070. Price: $1,342.36 |
| 16 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 17 |
107339X |
DECAL HYT Price: Call Us |
| 17 |
328-25 |
SCREW-HH Price: $4.07 |
| 18 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 18 |
150050 |
SCREW.HXTAP.10-24 Price: Call Us |
| 19 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 19 |
73510400 |
NUT Price: Call Us |
| 20 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 20 |
84596 |
ENGINE.PULLEY.FWG Price: Call Us |
| 21 |
3234-25 |
SCREW-HHF Price: $7.69 |
| 21 |
87677 |
HI PRO KEY PM Price: Call Us |
| 22 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 22 |
59708 |
SCREW Price: Call Us |
| 23 |
133040X479 |
REAR BAFFLE Price: Call Us |
| 23 |
63-6430-03 |
FRAME-REAR Price: $757.78 |
| 24 |
140540 |
SKIRT.REAR.FGD.22 Price: Call Us |
| 24 |
63-6770-03 |
PIN-MASKED Price: $145.71 |
| 25 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 25 |
700365X479 |
BAFFLE.SIDE Price: Call Us |
| 26 |
321-4 |
SCREW-HH Price: $0.99 |
| 26 |
700360X479 |
PLATE.BACK Price: Call Us |
| 27 |
325-5 |
SCREW-HH Price: $1.20 |
| 28 |
54583 |
SCREW Price: Call Us |
| 29 |
133190X479 |
DISCHARGE BAFFLE Price: Call Us |
| 30 |
132001 |
ROPE GUIDE Price: Call Us |
| 31 |
151517 |
SUB= 7192J Price: Call Us |
| 32 |
151721X479 |
LOWER HANDLE Price: Call Us |
| 33 |
131959 |
BOLT.HANDLE.LM Price: Call Us |
| 34 |
51793 |
HAIRPIN COTTER Price: Call Us |
| 35 |
77400 |
HUB CAP Price: Call Us |
| 37 |
83923 |
HEX FLANGE LOCKNT Price: Call Us |
| 38 |
146247 |
WHEEL.8X2.PR.RAD. Price: Call Us |
| 39 |
142748 |
BOLT SHLD 3/8-16 Price: Call Us |
| 41 |
145935X004 |
ARM.AXLE.ASM.BZP. Price: Call Us |
| 42 |
700331X004 |
SPRING SELECTOR Price: Call Us |
| 43 |
87877 |
KNOB PM Price: Call Us |
| 44 |
700326X007 |
BRACKET.ADJ.9.LH Price: Call Us |
| 45 |
146630 |
SPACER.HEIGHT.ADJ Price: Call Us |
| 46 |
700327X007 |
BRACKET.ADJ.9.RH Price: Call Us |
| 47 |
150078 |
SCREW.HXWS.5/16 Price: Call Us |
| 50 |
151588X479 |
BRACKET.HDL.RH. Price: Call Us |
| 51 |
151589X479 |
BRACKET.HDL.LH. Price: Call Us |
| 52 |
751592 |
LOCKNUT PM Price: Call Us |
| 54 |
851201X004 |
WASHER Price: Call Us |
| 55 |
150406 |
BOLT.ENG.3/8-16 Price: Call Us |
| 57 |
132255X479 |
SUB= 144964 Price: Call Us |
| 59 |
851084 |
SCREW Price: Call Us |
| 60 |
850263 |
LOCKWASHER Price: Call Us |
| 63 |
851514 |
ADAPTOR.BLADE.LM Price: Call Us |
| 64 |
149106 |
KIT.HSG.22RD.FWGD Price: Call Us |
| 68 |
88652 |
HINGE SCREW Price: Call Us |
| 69 |
133170X479 |
MULCHER PLATE Price: Call Us |
| 70 |
134612 |
SUB= 48283 Price: Call Us |
| 145658 |
MANUAL.GEN.SP.E. |
Price: Call Us 145658 |
| 154260 |
MANUAL.P.4H472F |
Price: Call Us 154260 |
