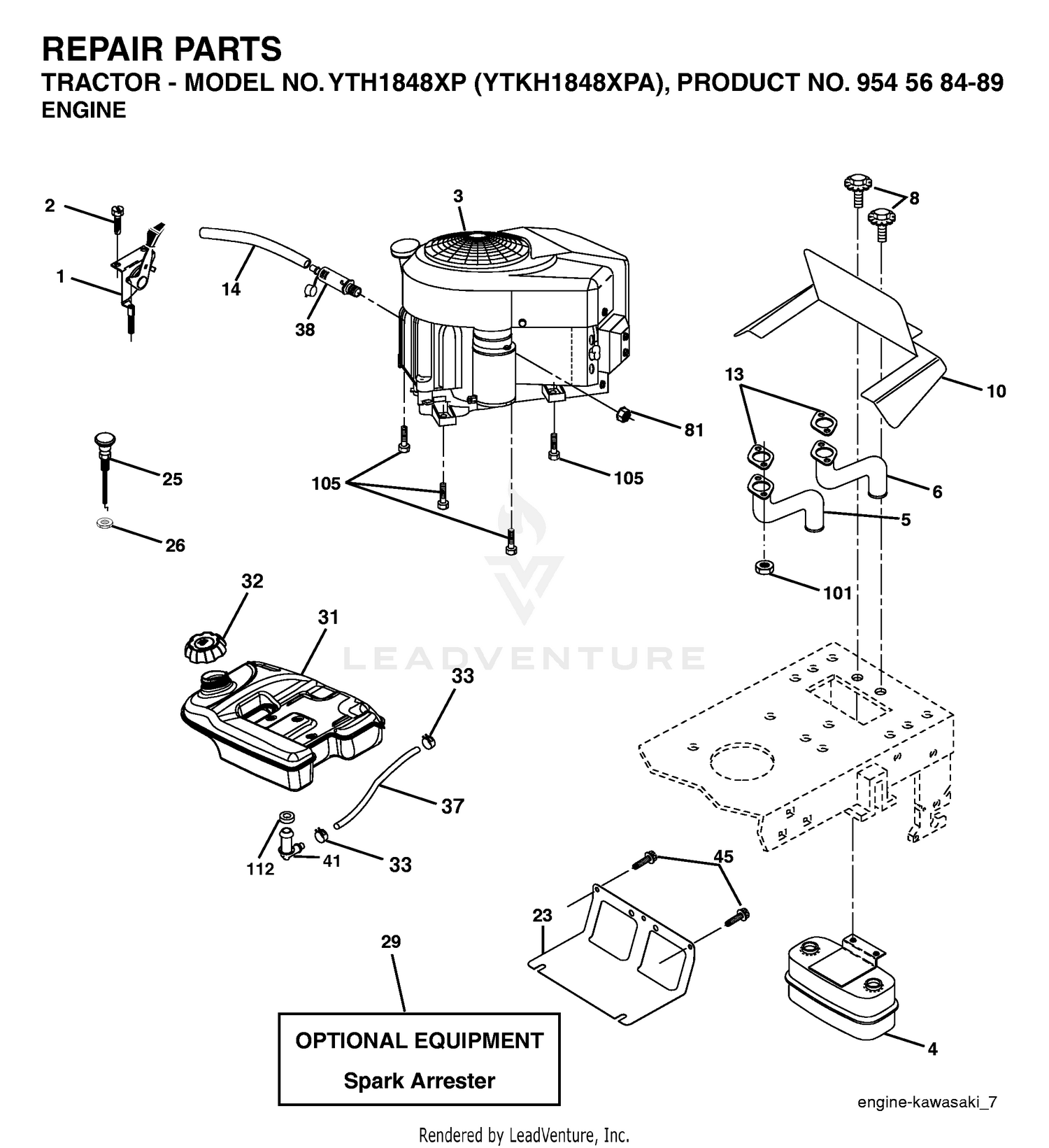

| Ref | Part Number | Description |
|---|
| 1 |
532170803 |
CONTROL, THROTTLE Price: $24.99 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
532176067 |
EXHAUST.TUBE.LH.KAWASAKI. Price: $99.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
115-4111 |
GEAR CASE ASM Price: $953.52 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 20 |
127-0425 |
PLUG Price: $4.34 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
98-7487 |
PLUG Price: $3.18 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-7562 |
WASHER-PLAIN Price: $0.36 |
| 32 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99 |
| 40 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 50 |
98-9544 |
SPRING Price: $0.94 |
| 60 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 70 |
98-9380 |
BALL Price: $0.84 |
| 80 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 85 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 90 |
107-9071 |
SCREW Price: $0.36 |
| 100 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 112 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 120 |
100-1765 |
BOLT Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 200 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 210 |
105-3710 |
STUD Price: $1.16 |
| 220 |
99-3515 |
PLUG-GEARCASE Price: $9.00 |
