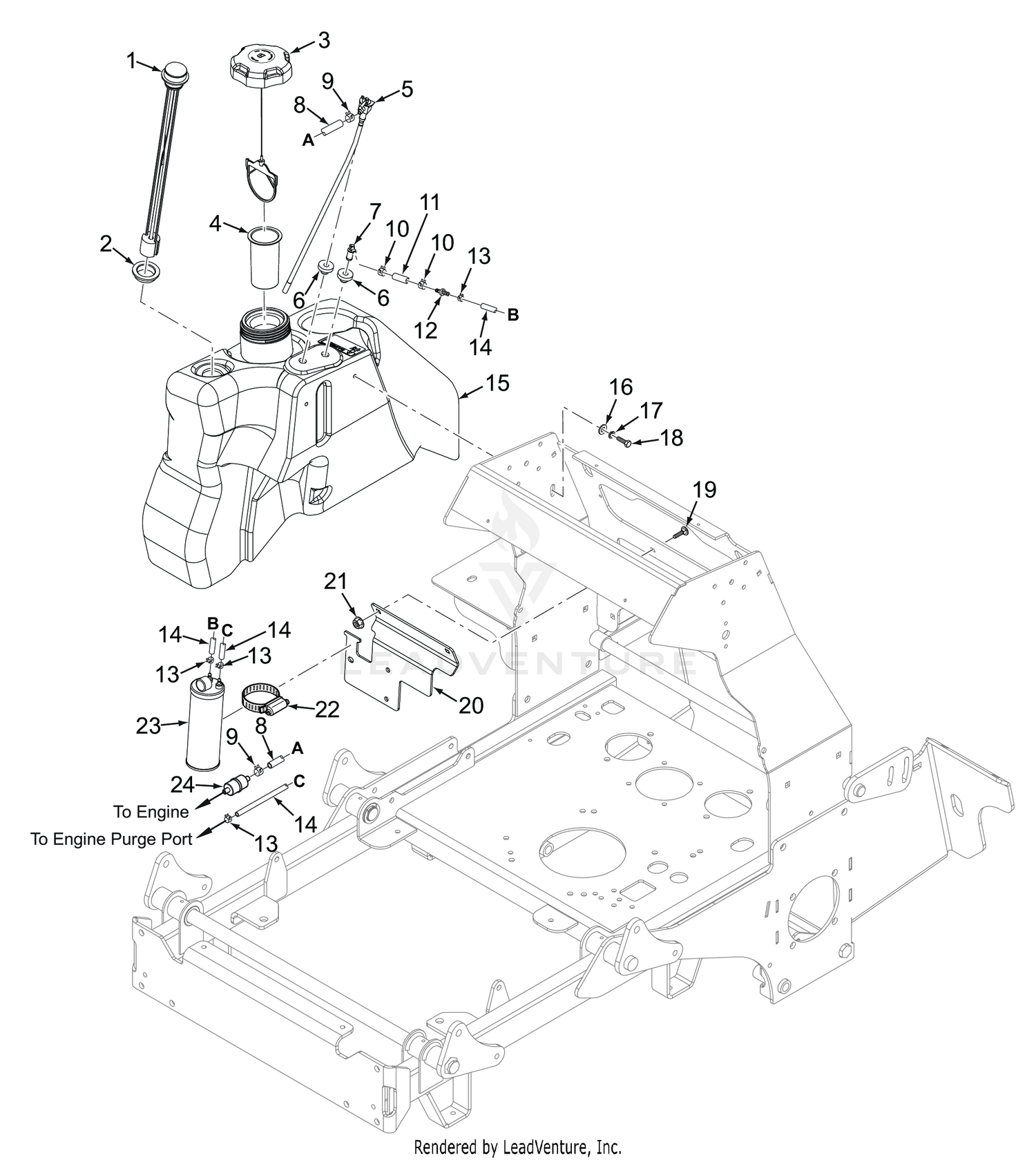

| Ref | Part Number | Description |
|---|
| 1 |
3217-6 |
NUT-HEX Price: $1.19 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
484242 |
Grommet, Fuel Gauge Price: Call Us |
| 3 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 3 |
484286 |
Fuel Cap w/ Tether (E.P.A.) Price: Call Us |
| 4 |
18-2660 |
DISCONTINUED Price: Call Us |
| 4 |
484279-01 |
Tube, Fuel Tank Insert - 4" Price: Call Us |
| 5 |
483896 |
Valve, Fuel Shut Off Price: Call Us |
| 5 |
82-8970 |
DECAL-COOLANT, ENGINE This part replaces 26-7530. Price: $16.00 |
| 6 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 6 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 7 |
11-6429 |
DISCONTINUED Price: Call Us |
| 7 |
486852 |
Remote Vent, With No Valve Price: Call Us |
| 8 |
66-6140 |
DECAL This part replaces 18-2180. Price: $25.48 |
| 9 |
48059-01 |
Clamp, Fuel Hose 1/4" Hose I.D. Price: Call Us |
| 9 |
54-7570 |
DISCONTINUED Price: Call Us |
| 10 |
26-9890 |
UPPER HOSE Price: $51.37 |
| 10 |
48059-02 |
CLAMP, FUEL HOSE(KAWASAKI ONLY) Price: Call Us |
| 11 |
322-3 |
SCREW-HH Price: $0.79 |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
484343-01 |
Mender, 1/4 x 3/16 w/0.02 Hole Price: Call Us |
| 13 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 13 |
48059-05 |
Clamp, Vapor Recovery Hose 3/16" Price: Call Us |
| 14 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 15 |
26-9900 |
LOWER HOSE Price: $59.90 |
| 16 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 16 |
52-1530 |
DISCONTINUED Price: Call Us |
| 17 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 17 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 18 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 18 |
32140-43 |
DISCONTINUED Price: Call Us |
| 19 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 19 |
304-46 |
DRAINCOCK Price: $7.55 |
| 20 |
38-4600 |
LH FRAME BAR Price: $29.16 |
| 20 |
427280 |
Bracket, Hydro Tank Mounting Price: Call Us |
| 21 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 21 |
353-548 |
ELBOW Price: $16.04 |
| 22 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 22 |
48136-17 |
Clamp, 3-1/2" Max. Dia. Price: Call Us |
| 23 |
42-6290 |
DISCONTINUED Price: Call Us |
| 23 |
484342 |
Carbon Canister - SVR-52V / SVR-61V Price: Call Us |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 25 |
2412-4 |
CLAMP-R Price: $4.22 |
| 26 |
23-1760 |
DISCONTINUE Price: Call Us |
| 27 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 28 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 29 |
52-1500 |
DISCONTINUED Price: Call Us |
| 30 |
23-1770 |
DISCONTINUED Price: Call Us |
| 31 |
23-1700 |
DISCONTINUED Price: Call Us |
