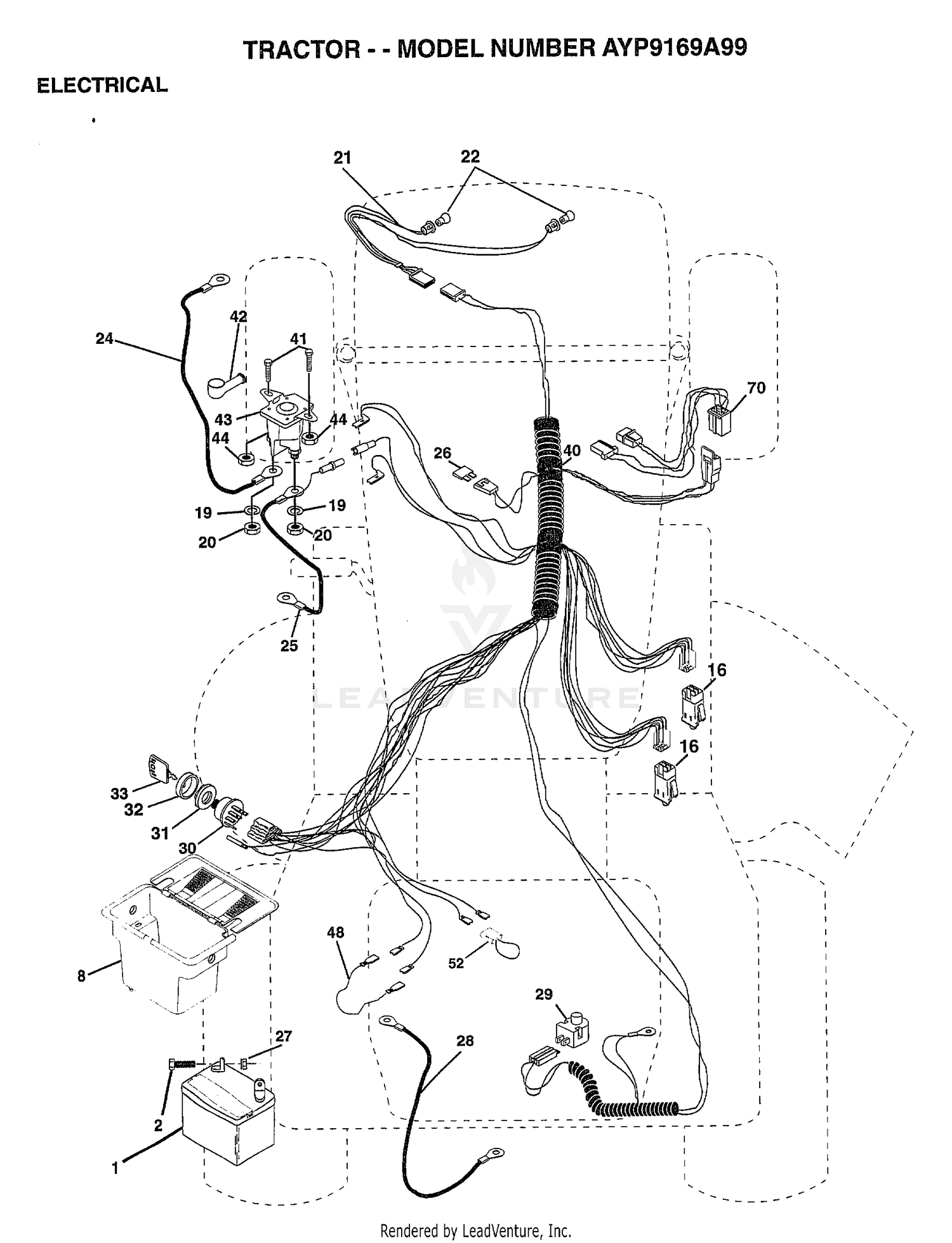

| Ref | Part Number | Description |
|---|
| REFER |
REFER |
TO IMAGE Price: Call Us |
| 1 |
117-8982 |
TANK-HYDRAULIC This part replaces 104-9254. Price: $1,846.02 |
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 2 |
68-6150 |
BREATHER Price: $27.22 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
61-2790 |
FILTER-SCREEN Price: $49.91 |
| 4 |
94-9411 |
DIPSTICK Price: $42.51 |
| 5 |
98-3917-01 |
BRACKET-FILTER Price: $45.78 |
| 6 |
93-7498 |
PLUG-PLASTIC Price: $25.26 |
| 7 |
340-91 |
FITTING-STR Price: $36.83 |
| 8 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 9 |
23-8910 |
STEM-BARB-90 Price: $153.60 |
| 10 |
104-7546 |
TANK STRAINER ASM Price: $170.48 |
| 11 |
353-508 |
PLUG-HH Price: $7.96 |
| 12 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 13 |
92-8020 |
ADAPTER-BREATHER Price: $10.50 |
| 14 |
93-7588 |
COVER-TANK Price: $37.60 |
| 15 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
93-7499 |
GASKET Price: $5.91 |
| 17 |
98-3931 |
HOSE-FORMED Price: $80.81 |
| 18 |
237-101 |
O-RING Price: $2.80 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
353-550 |
PLUG-HYD, HH Price: $10.71 |
| 20 |
2412-93 |
CLAMP-R Price: $1.02 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
166181 |
HARNESS.ASM.LIGHT W/4152J Price: Call Us |
| 22 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 23 |
323-4 |
SCREW-HH Price: $1.02 |
| 24 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 25 |
146147 |
CABLE.BTRY.6GA.RD Price: Call Us |
| 25 |
63-8410 |
WASHER Price: $1.76 |
| 26 |
166180 |
FUSE.15 AMP Price: Call Us |
| 26 |
75-6870 |
HOSE-INLET, PUMP Price: $50.00 |
| 27 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 27 |
73510400 |
NUT Price: Call Us |
| 28 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
4207J |
CABLE T Price: Call Us |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 33 |
122147X |
KEY Price: Call Us |
| 40 |
166145 |
HARNESS.IGNITION Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 48 |
140844 |
ADAPTER AMMETER Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
