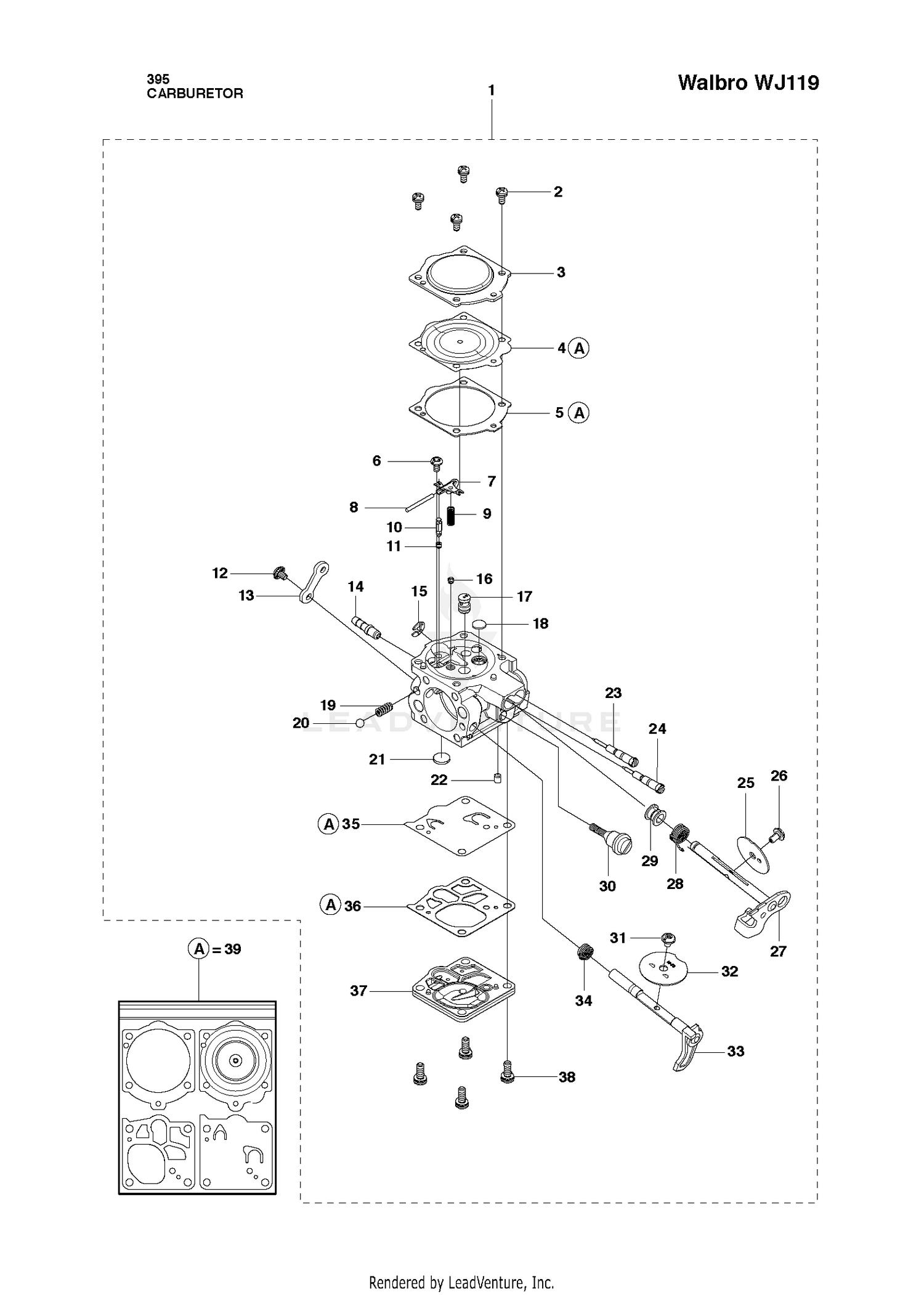

CARBURETOR
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501355501 | CARBURETOR Price: $119.99 |
| 2 | 503584601 | SCREW This part replaces 503108701. Price: $2.99 |
| 3 | 505316702 | DIAPHRAM COVER Price: $4.99 |
| 4 | 505316715 | MAIN DIAPHRAGM Price: $79.99 |
| 6 | 505316717 | SCREW Price: $6.99 |
| 7 | 505316734 | LEVER Price: $11.99 |
| 8 | 505316731 | PIN Price: $6.99 |
| 9 | 504791301 | SPRING METERING Price: $8.99 |
| 10 | 503563401 | INLET NEEDLE Price: $14.99 |
| 11 | 503592301 | SEAT IN VALVE PLATED Price: $3.99 |
| 12 | 501468701 | SCREW Price: $6.99 |
| 13 | 504790601 | LEVER Price: $6.99 |
| 14 | 504790301 | COVER PUMP This part replaces 505696901. Price: $11.99 |
| 15 | 502119801 | CLIPS This part replaces 505316736. Price: $7.99 |
| 16 | 504791901 | JET Price: $6.99 |
| 17 | 503581501 | JET Price: $4.99 |
| 18 | 504790801 | PLUG WELCH Price: $6.99 |
| 19 | 503117701 | SPRING Price: $7.99 |
| 20 | 503117101 | BALL Price: $9.99 |
| 21 | 501666101 | FUEL INLET SCREEN Price: $12.99 |
| 22 | 503800501 | PLUG FRICTION Price: $7.99 |
| 23 | 505508901 | NEEDLE IDLE Price: $7.99 |
| 24 | 505509001 | NEEDLE HIGH Price: $6.99 |
| 25 | 503800001 | THROTTLE FLAP Price: $4.99 |
| 26 | 544111501 | SCREW Price: $6.99 |
| 27 | 504790401 | SHAFT ASSY THROTTLE Price: $11.99 |
| 28 | 576138201 | SPRING Price: $14.99 |
| 29 | 502103101 | BUSHING Price: $9.99 |
| 30 | 504791001 | SCREW Price: $49.99 |
| 31 | 501468701 | SCREW This part replaces 537003401. Price: $6.99 |
| 32 | 505316707 | CHOKE FLAP Price: $2.99 |
| 33 | 504790501 | SHAFT ASSY Price: $11.99 |
| 34 | 504791501 | SPRING CHOKE Price: $17.99 |
| 35 | 544897201 | DIAPHRAM PUMP Price: $22.99 |
| 36 | 503117201 | GASKET Price: $9.99 |
| 37 | 504790301 | COVER PUMP Price: $11.99 |
| 38 | 503117501 | SCREW W/ WASHER Price: $7.99 |
| 39 | 522591801 | DIAPHRAGM SET Price: $14.99 |
