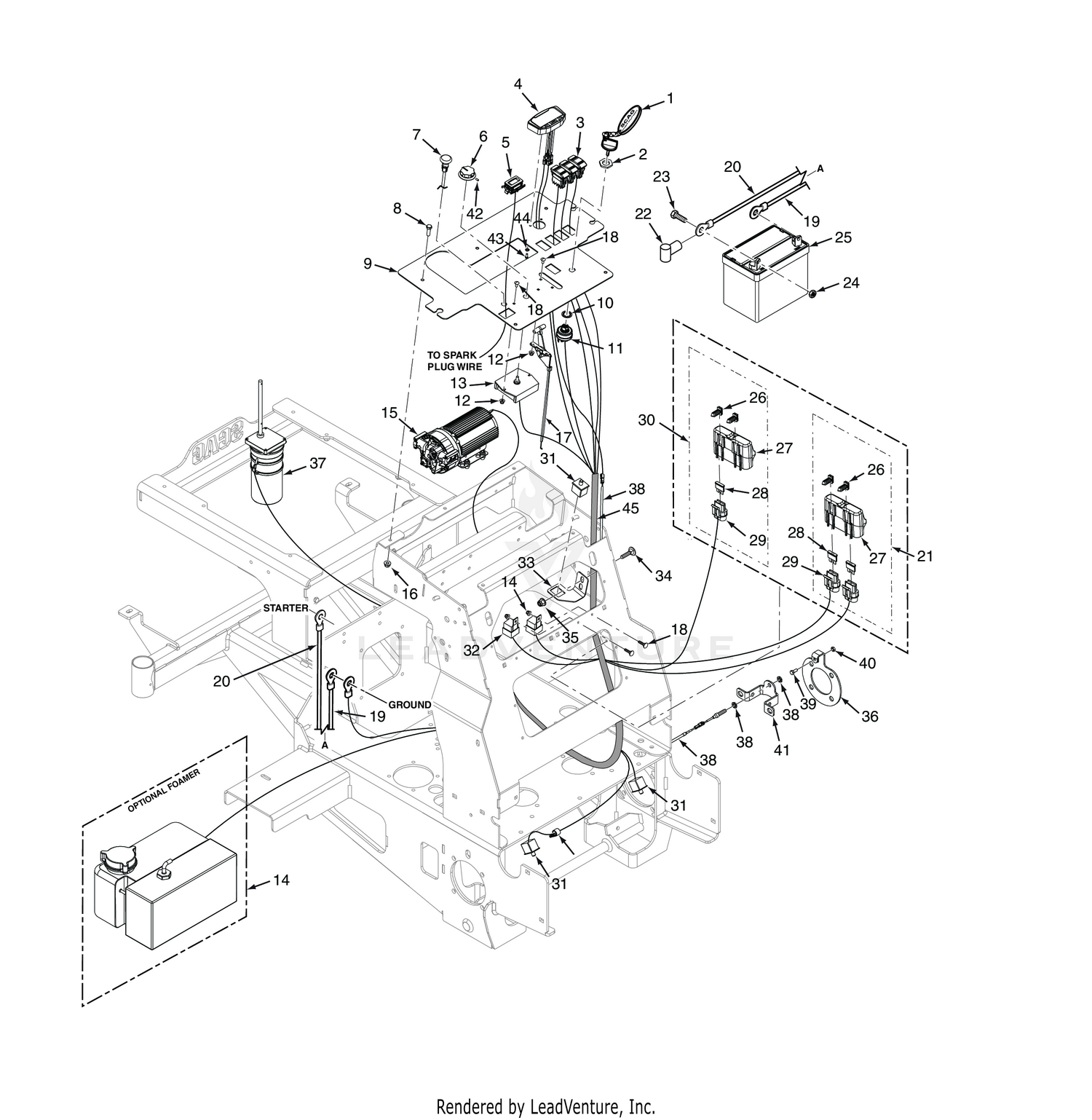

| Ref | Part Number | Description |
|---|
| 1 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 2 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 3 |
487039 |
Switch, Rocker - Lighted Price: Call Us |
| 4 |
486621 |
Display, Trail Tech Price: Call Us |
| 5 |
484565 |
Hour Meter, Inductive Price: Call Us |
| 6 |
486833 |
Knob (Incl #38) Price: Call Us |
| 7 |
483976 |
Choke Control (excludes EFI models) Price: Call Us |
| 8 |
04201-17 |
Bolt, Hex 5/16" - .375 x 1.00- Stainless Steel Price: Call Us |
| 9 |
463337 |
Instrument Panel w/ Decal Price: Call Us |
| 10 |
48017-03 |
LOCK WASHER, 5/8" INTERNAL TOOTH Price: Call Us |
| 12 |
04221-01 |
Locknut, #10 - 32 Elastic Stop - Stainless Steel Price: Call Us |
| 13 |
486455 |
Motor Controller Price: Call Us |
| 14 |
9612 |
Foamer Accessory (optional) Price: Call Us |
| 15 |
486090 |
Pump, 12V Electric Price: Call Us |
| 16 |
04317-02 |
Locknut, 5/16-18 Flg. Elastic Stop - Stainless Steel Price: Call Us |
| 17 |
483975 |
Throttle Control, SVR Price: Call Us |
| 18 |
04203-01 |
Bolt, Carriage #10 - 32 x .50 - Stainless Steel Price: Call Us |
| 19 |
48029-14 |
Battery Cable, 31-1/2" Black (25KA, 26DFI, 31DFI) - Kawasaki Price: Call Us |
| 20 |
48029-32 |
Battery Cable, Red Price: Call Us |
| 22 |
48126 |
RUBBER BOOT Price: Call Us |
| 23 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 24 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 25 |
483665 |
Battery, 350 CCA (not available through Scag) Price: Call Us |
| 26 |
482588 |
Clip, Fuse Holder Price: Call Us |
| 27 |
483571 |
Cover, Sealed Double Price: Call Us |
| 28 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 29 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 31 |
483473 |
Switch, Double Pole - Plunger Price: Call Us |
| 32 |
483013 |
Relay, 12V 40 AMP Standard Price: Call Us |
| 33 |
427908 |
Mounting Bracket, Brake Switch Price: Call Us |
| 34 |
04203-17 |
Bolt, Carriage 5/16 - 18 x 1" - - Stainless Steel Price: Call Us |
| 35 |
04317-02 |
Locknut, 5/16-18 Flg. Elastic Stop - Stainless Steel Price: Call Us |
| 36 |
428105 |
Plate, Hub Magnet Holder Price: Call Us |
| 37 |
486440 |
Gear Motor, Electric Price: Call Us |
| 38 |
486614 |
Wire Harness, Display Price: Call Us |
| 39 |
486611 |
Bolt, Magnetic Price: Call Us |
| 40 |
04225-01 |
Nut, M6 x 1.00 Price: Call Us |
| 41 |
427828 |
Plate, Speed Sensor Price: Call Us |
| 42 |
04012-16 |
Set Screw, #8 - 32 x .375 Price: Call Us |
| 43 |
04202-01 |
Bolt, Hex Head M4-.7 x 10 Price: Call Us |
| 44 |
04233-01 |
Lockwasher, M4-1.1 x 7.6 x .8 Price: Call Us |
