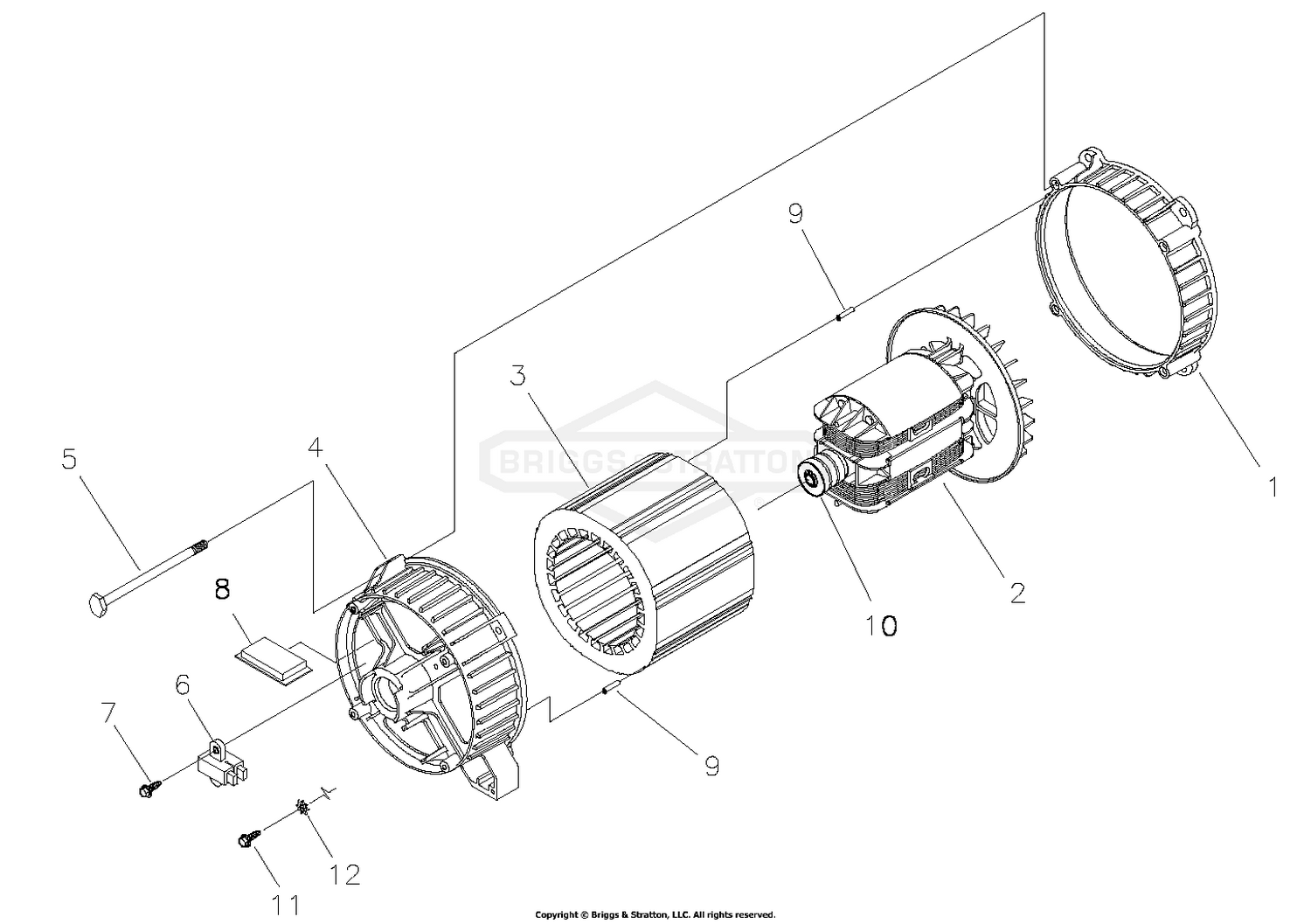

| Ref | Part Number | Description |
|---|
| 1 |
209599GS |
ADAPTER, Alternator This part replaces 186059GS. Price: $33.00 |
| 2 |
194773GS |
ASSY, Rotor (Includes Item 10) Price: $379.84 |
| 3 |
200434AGS |
STATOR Price: $781.09 |
| 4 |
193336GS |
RBC, (with O-Ring p/n 189197) Price: $36.50 |
| 5 |
86308KGS |
HHCS, M6 - 1.0 x 175 SEMS Price: $6.41 |
| 6 |
66386GS |
ASSY, Holder, Brush Price: $21.52 |
| 7 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 8 |
205858GS |
BOARD, Circuit, System Control Price: $98.29 |
| 9 |
81917GS |
PIN, Roll, 4mm x 10 Price: $2.79 |
| 10 |
65791GS |
BEARING Price: $32.00 |
| 11 |
74908GS |
SCREW, M5 .8 x 10, Taptite Price: $2.69 |
