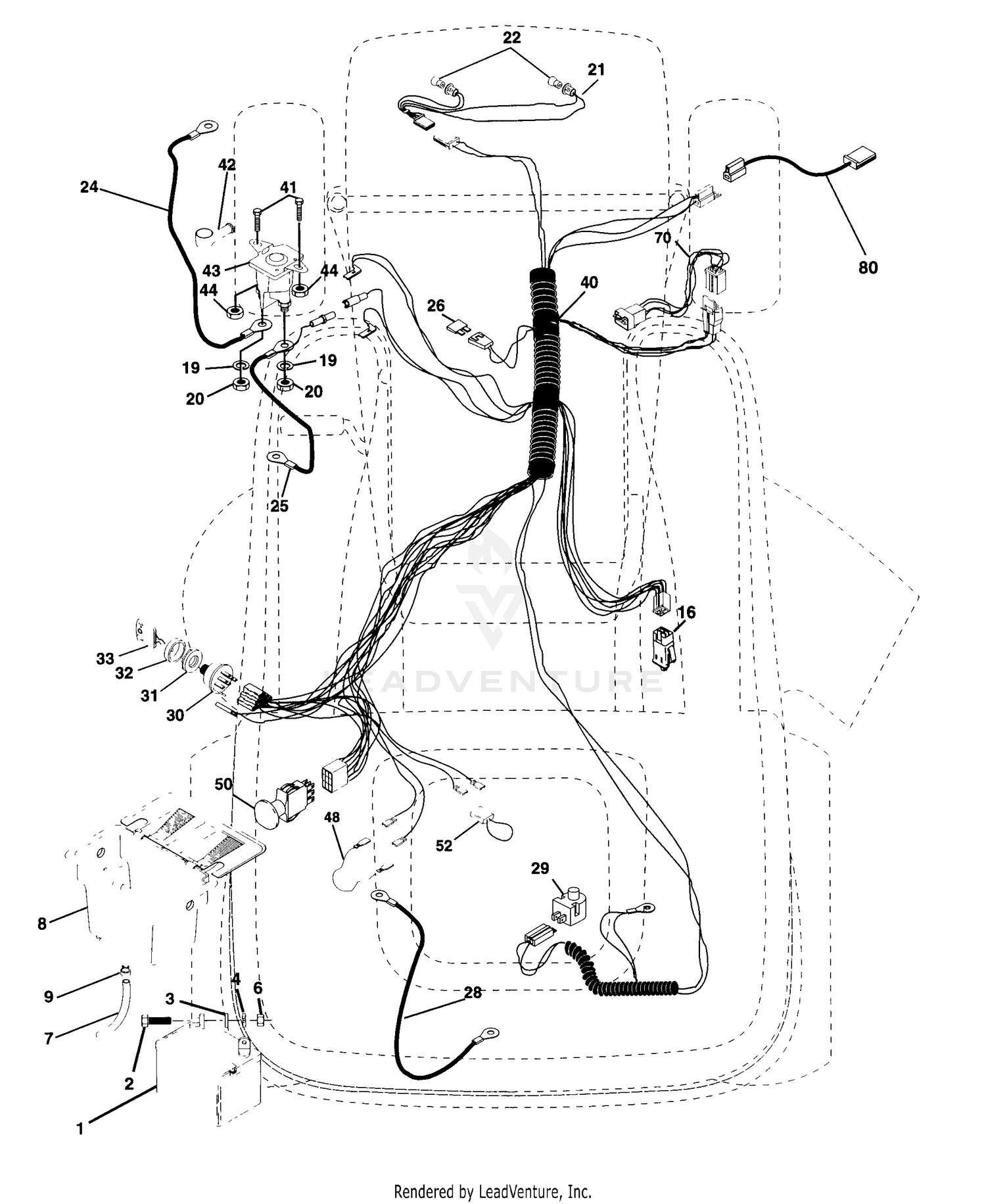

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532146139. Price: $149.99 |
| 1 |
62-7400 |
DECAL Price: $24.54 |
| 2 |
14-5759 |
HOOD ASSEMBLY- RM216D Price: $1,107.86 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 3 |
83-9970 |
DISCONTINUED Price: Call Us |
| 4 |
32128-14 |
NUT-HF Price: $0.41 |
| 4 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 5 |
83-9840 |
PAD-FOOT Price: $60.60 |
| 6 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 7 |
532109238 |
TUBE BATTERY DRAIN Price: $5.46 |
| 7 |
83-9710-03 |
FOOTREST-PEDAL, TRACTION This part replaces 83-9710. Price: $78.54 |
| 8 |
32128-44 |
NUT Price: $2.69 |
| 8 |
532404349 |
KIT.BOX.BATTERY.REAR.BOOT.POS This part replaces 532156417. Price: $24.99 |
| 9 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 9 |
83-9700-01 |
DISCONTINUED This part replaces 83-9700. Price: Call Us |
| 10 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 11 |
32148-7 |
NUT-CLINCH Price: $0.98 |
| 12 |
84-1650 |
DECAL - BRAKE Price: $7.02 |
| 12 |
93-7267 |
DECAL-BRAKE Price: $6.37 |
| 13 |
32148-8 |
NUT-CLINCH Price: $2.31 |
| 14 |
83-9800-01 |
GRASS SHIELD-FRONT, LH This part replaces 83-9800. Price: $28.36 |
| 15 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN This part replaces 532153664. Price: $19.99 |
| 16 |
83-8510-01 |
BRACKET-FENDER, LEFT This part replaces 83-8510. Price: $24.64 |
| 17 |
3217-6 |
NUT-HEX Price: $1.19 |
| 18 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 20 |
85-4870 |
DISCONTINUED Price: Call Us |
| 21 |
256-320 |
BUSHING-NYLON Price: $7.44 |
| 21 |
532136850 |
HARNESS LIGHT SOCKET Price: $15.99 |
| 22 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
83-8860-01 |
R/H FRT SHIELD This part replaces 83-8860. Price: $20.35 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 24 |
85-4890-03 |
DISCONTINUED This part replaces 85-4890. Price: Call Us |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 25 |
83-8850-03 |
DISCONTINUED This part replaces 83-8850. Price: Call Us |
| 26 |
532108824 |
FUSE HYT Price: $4.99 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532140301 |
SWITCH.IGNITION.4.POSITION Price: $32.99 |
| 31 |
532124211 |
NUT IGNITION Price: $4.99 |
| 32 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 33 |
532122147 |
KEY.MOLDED.GENERIC Price: $5.99 |
| 40 |
532156443 |
IGN HARNESS Price: $86.87 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 44 |
873640400 |
Nut Keps Hex 1/4-20 Unc Price: $2.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532154959. Price: $24.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 70 |
532142621 |
HARNESS ENG. KOHLER Price: $6.70 |
