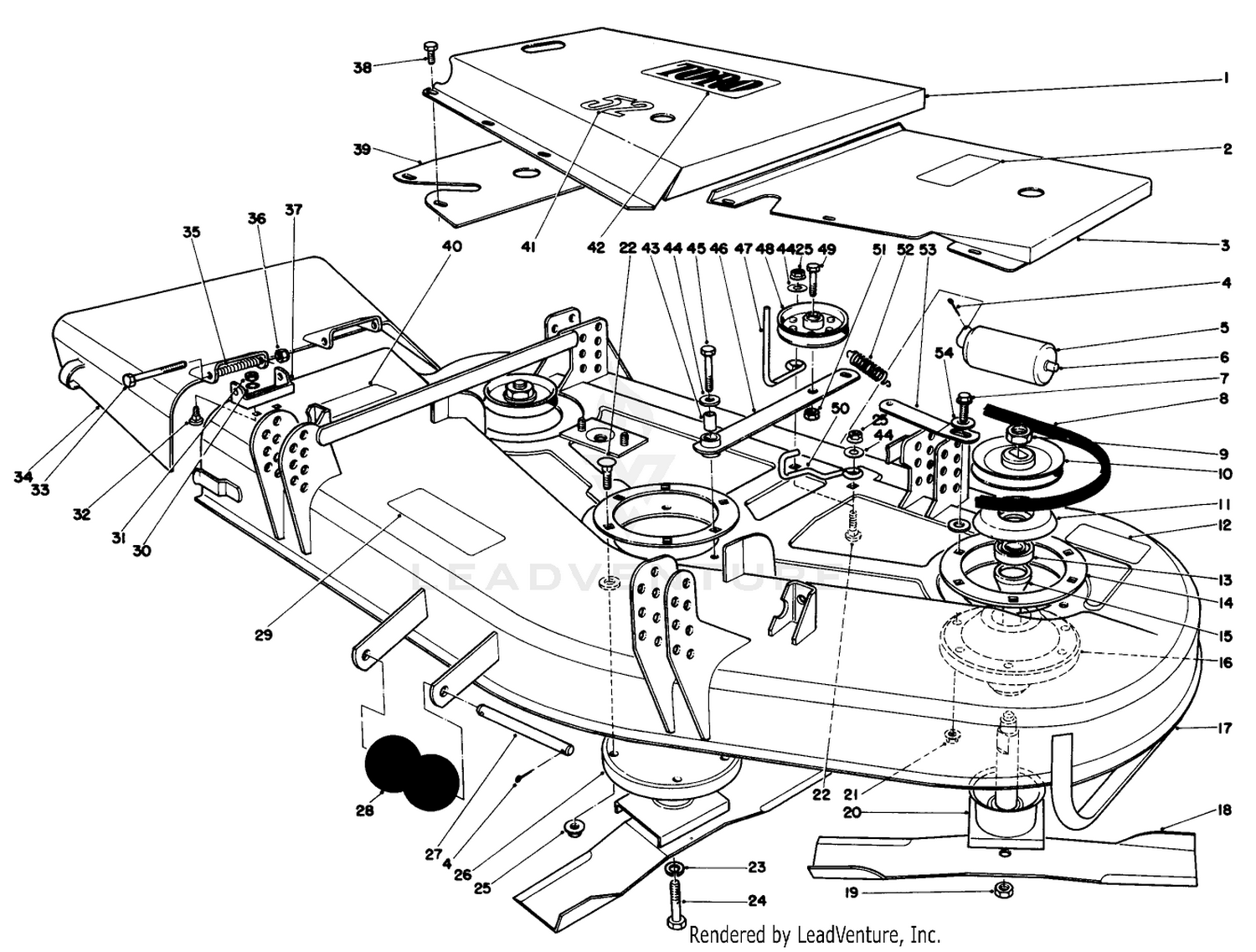

| Ref | Part Number | Description |
|---|
| 1 |
51-3930 |
CENTER COVER WA 52 *R Price: $199.59 |
| 2 |
42-6860 |
DISCONTINUED Price: Call Us |
| 3 |
51-3910-01 |
LH COVER ASM This part replaces 51-3910. Price: $176.84 |
| 4 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 5 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 6 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 7 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 8 |
27-1160 |
V-BELT Price: $51.80 |
| 9 |
3296-41 |
NUT-LOCK NI This part replaces 32146-19. Price: $5.49 |
| 10 |
51-3520 |
PULLEY and HUB ASM Price: Call Us |
| 11 |
39-7690 |
DISCONTINUED Price: Call Us |
| 12 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 13 |
40-6340 |
BEARING Price: $66.74 |
| 14 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 15 |
40-6320 |
DISCONTINUED Price: Call Us |
| 16 |
51-3510 |
Spindle ASM Price: Call Us |
| 17 |
51-3850 |
Deck Assembly Price: Call Us |
| 18 |
40-3760-03 |
BLADE-18" This part replaces 40-3760. Price: $24.99 |
| 19 |
3296-41 |
NUT-LOCK NI This part replaces 32146-19. Price: $5.49 |
| 20 |
40-6310 |
SHAFT and SADDLE ASM Price: Call Us |
| 21 |
32128-12 |
NUT-LOCK, FLANGE Price: $1.46 |
| 22 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 23 |
3253-23 |
WASHER-LOCK Price: $3.87 |
| 24 |
51-4060 |
SCREW-BLADE Price: $7.39 |
| 25 |
32128-21 |
NUT-HF Price: $0.39 |
| 26 |
54-7780 |
SPINDLE ASM Price: $1,058.13 |
| 27 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 28 |
29-4820 |
ROLLER Price: $14.88 |
| 29 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 30 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 31 |
3217-6 |
NUT-HEX Price: $1.19 |
| 32 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 33 |
3211-15 |
SCREW-HH Price: $7.99 |
| 34 |
13-3949 |
DEFLECTOR ASM This part replaces 40-6200. Price: $214.07 |
| 35 |
40-6230 |
SPRING Price: $37.99 |
| 36 |
3296-5 |
NUT-HEX Price: $3.09 |
| 37 |
29-5590-03 |
BRACKET-PIVOT This part replaces 29-5590. Price: $23.25 |
| 38 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 39 |
51-3890 |
Cover Price: Call Us |
| 40 |
26-7980 |
DISCONTINUED Price: Call Us |
| 41 |
51-3960 |
DECAL Price: $24.99 |
| 42 |
62-7400 |
DECAL This part replaces 43-5120. Price: $24.54 |
| 43 |
51-3640 |
SLEEVE Price: $9.66 |
| 44 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 45 |
323-11 |
SCREW-HH Price: $1.08 |
| 46 |
51-3610 |
ARM-IDLER, DECK Price: Call Us |
| 47 |
52-4780 |
ROD-BELT Price: $13.99 |
| 48 |
99-5678 |
IDLER PULLEY ASM This part replaces 52-4580. Price: $65.12 |
| 49 |
3211-8 |
SCREW-HH Price: $3.50 |
| 50 |
52-4770 |
BELT GUIDE Price: Call Us |
| 51 |
3296-5 |
NUT-HEX Price: $3.09 |
| 52 |
51-3650 |
SPRING-EXTENSION Price: $10.93 |
| 53 |
55-7650 |
PLATE-SPRING This part replaces 51-3870. Price: $19.99 |
