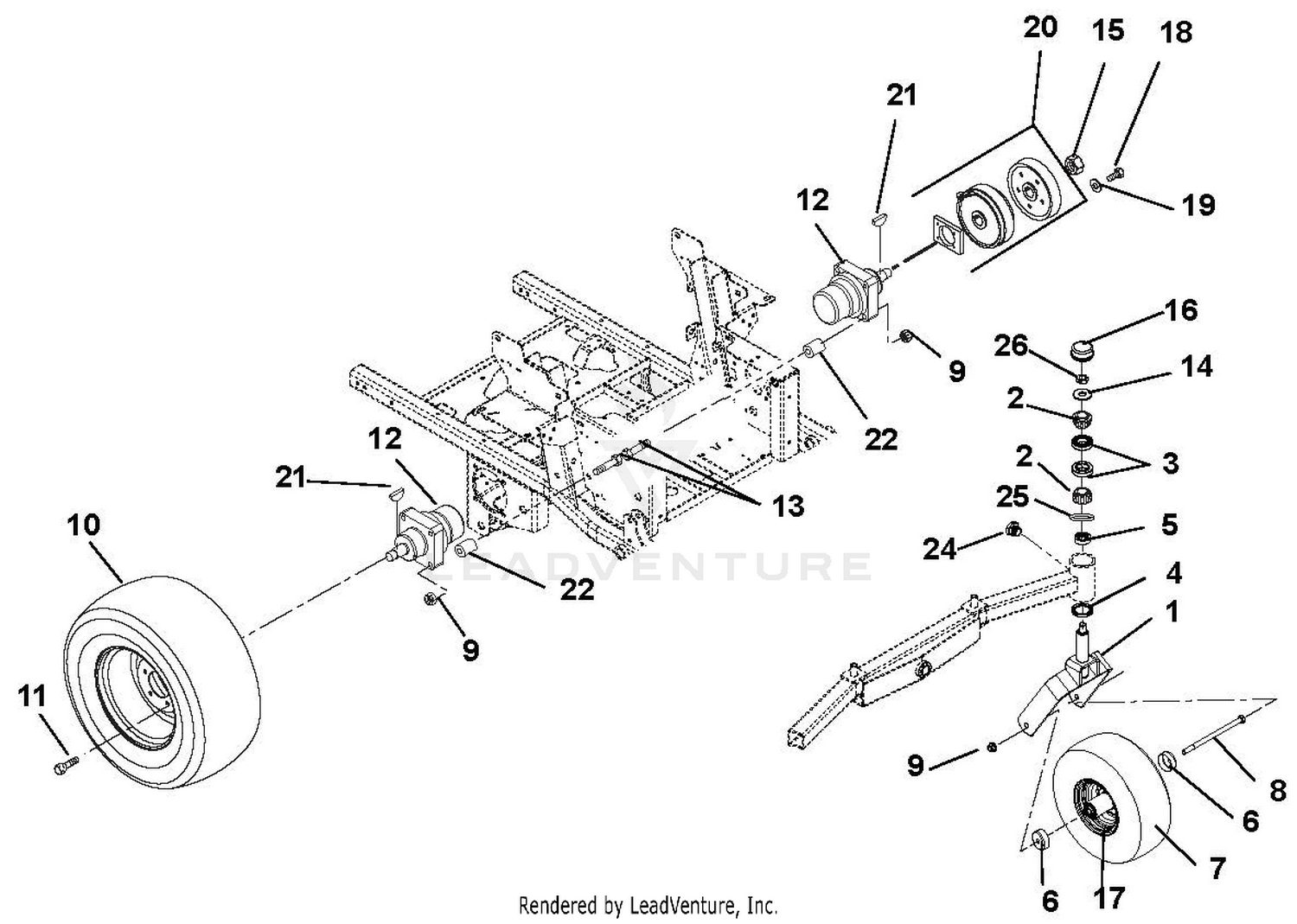

| Ref | Part Number | Description |
|---|
| 1 |
03758753 |
WMT - FRONT FORK Price: $130.45 |
| 2 |
05404700 |
BRG-CONE 1.25X.66 Price: $19.95 |
| 3 |
05404600 |
BRG-CUP 2.328X.465 Price: $13.45 |
| 4 |
05600432 |
SEAL, OIL 1.75 X 2.332 X .312 Price: $10.95 |
| 5 |
04861500 |
SPCR, FRONT CASTER FORK Price: $12.45 |
| 6 |
09357800 |
SHIELD, WHEEL BEARING Price: $10.95 |
| 7 |
07100905 |
TIRE, 15X6-6 SMOOTH Price: $76.95 |
| 7 |
07101109 |
ASM, WHL/TIRE 15X6.00-6 SMOOTH Price: $112.45 |
| 8 |
05901930 |
BLT, HEX .50-13X9.00 G5 ZCC This part replaces 05961200. Price: $9.95 |
| 9 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 10 |
07101041 |
TIRE, 24 X 12.00-12 This part replaces 07100208. Price: $219.95 |
| 10 |
07101119 |
ASM, WHL/TIRE 24X12.00-12 K500 Price: $263.95 |
| 11 |
07000143 |
BLT-LUG .50-20X1.38 YWZC Price: $3.45 |
| 12 |
09263100 |
MOTOR, PARKER WHEEL Price: $744.95 |
| 13 |
07067300 |
BOLT, WHEEL MOTOR 1/2-13X5.00 Price: $6.45 |
| 14 |
06401201 |
WSHR-FL-STL 0.812X2X0.148 ZCC This part replaces 06439800. Price: $3.95 |
| 15 |
06500933 |
NUT, JAM-TOPLOCK .750-16 ZCC This part replaces 06500721. Price: $3.95 |
| 16 |
03925900 |
CAP, DUST Price: $10.45 |
| 17 |
05404400 |
BRG-CUP 1.781X.475 Price: $9.95 |
| 17 |
05404500 |
BRG-CONE .750X.61 Price: $25.95 |
| 18 |
05981600 |
BLT-HEX .31-18X1.50 GR8YZ EP30 Price: $3.45 |
| 19 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 20 |
58904300 |
KIT, BRAKE SERVICE (1-SIDE) Price: $472.95 |
| 21 |
06607800 |
KEY-WDRF .31X1.00 SFT #B Price: $3.95 |
| 22 |
05531400 |
BSHG-SLV .513X.748X2.129 Price: $12.45 |
| 24 |
07001723 |
PLUG, .250-28 X .185 HEX HEAD Price: $2.45 |
| 25 |
05600515 |
O-RING, Price: $2.45 |
