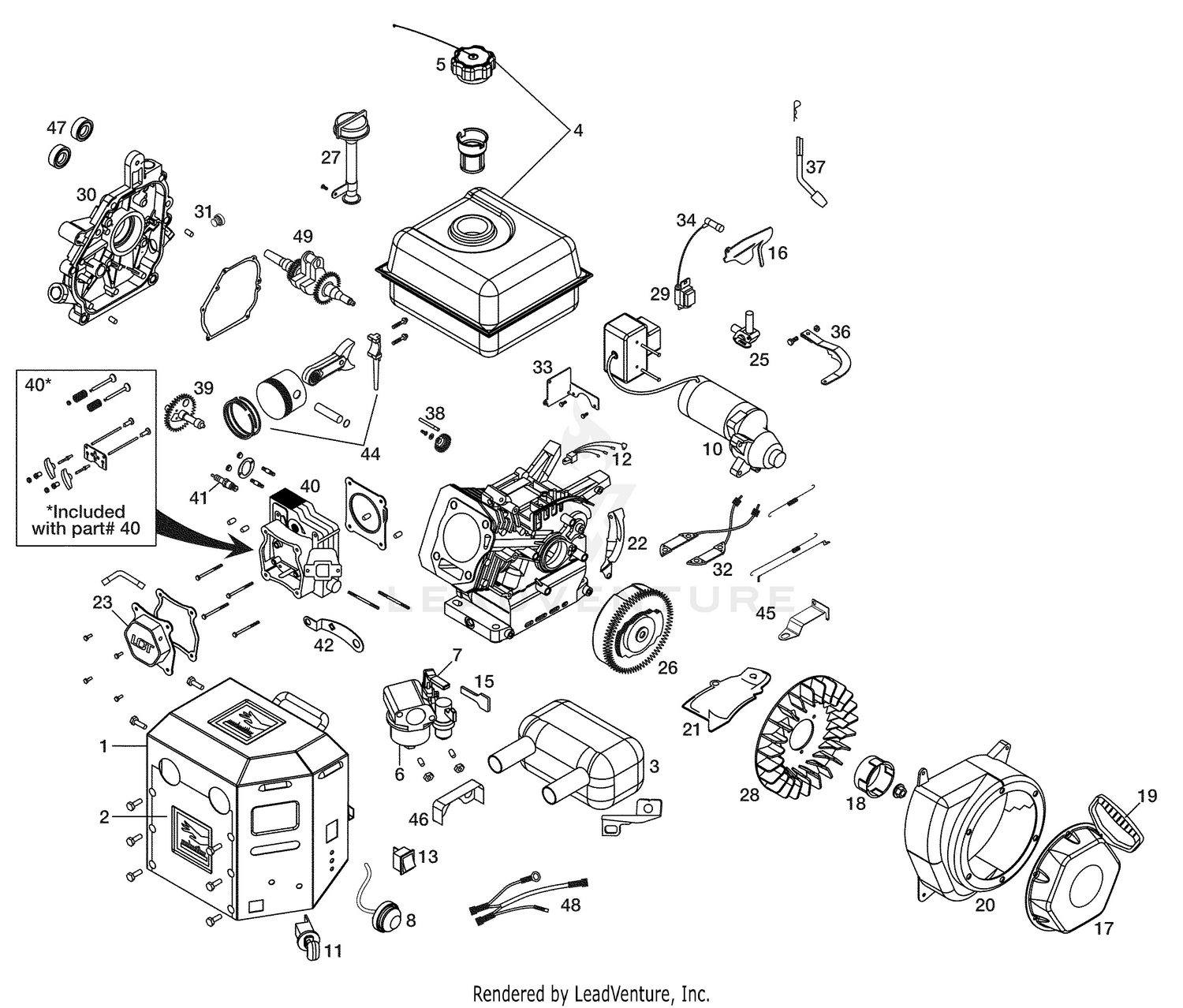

| Ref | Part Number | Description |
|---|
| 1 |
532424932 |
ASSY.SNOW.HEATER.BOX(SKSN-010 Price: $119.99 |
| 1 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 2 |
532424934 |
KIT.FASTENER.HEATER(SKSN-0101) Price: $11.99 |
| 2 |
68-5370 |
DECAL Price: $6.21 |
| 3 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 3 |
532424937 |
ASSY.SNOW.MUFFLER(SKSN-0200) Price: $69.99 |
| 4 |
21-9260 |
COVER-DUST Price: $8.19 |
| 4 |
532424938 |
ASSY.SNOW.FUEL.TANK(SKSN-0300) Price: $129.99 |
| 5 |
233-17 |
KNOB Price: $10.58 |
| 6 |
585020401 |
CARBURETOR.W/O.SPACER.LCT This part replaces 532424944. Price: $99.99 |
| 6 |
87-6620 |
SCREW Price: $1.29 |
| 7 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 7 |
532424958 |
THROT/CHOKE.HND(RED)(SKSN-0500 This part replaces 532424947. Price: $8.99 |
| 8 |
532424949 |
PRIMER.BULB.WITH HOSE (SNOW) Price: $11.99 |
| 8 |
93-1263 |
DECAL-TOWER Price: $46.56 |
| 9 |
93-7998-03 |
PLATE-INSTRUMENT Price: $40.21 |
| 10 |
532424953 |
ASSY.ELECT.STARTER(SKSN-0400) Price: $299.99 |
| 10 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
532424954 |
SWITH.KEY.ASSEM.SNOW.SINGLE.ST Price: $24.99 |
| 12 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 12 |
532424955 |
CDI.BOX SNOW Price: $19.99 |
| 13 |
104-1492 |
ROD ASM Price: $65.49 |
| 13 |
532424957 |
SWITCH.ON/OFF(SKSN-0403) Price: $39.99 |
| 14 |
75-6230 |
HOSE Price: $133.10 |
| 15 |
75-6240 |
HOSE Price: $137.49 |
| 16 |
532424960 |
GOVERNOR.LINK.SHIELD PLATE Price: $8.99 |
| 17 |
63-7900-03 |
RACK Price: $144.55 |
| 18 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 18 |
532424966 |
STARTER.CUP.SMALL(SKSN-0601.1) Price: $14.99 |
| 19 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 19 |
532443899 |
HANDLE.RECOIL.DELUXE.LCT This part replaces 532424968. Price: $14.99 |
| 20 |
532424971 |
BLOW.HSG.ASSY.ELEC(SKSN-0602) Price: $279.99 |
| 20 |
75-5940 |
HOSE Price: $94.45 |
| 20A |
532429230 |
BLOW.HSG.ASSY.ELEC(SKSN-0612) Price: $21.99 |
| 21 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 21 |
532424973 |
SHILED.FLYWEEL.SYS(SKSN-0604) Price: $6.99 |
| 22 |
532424975 |
SHLD.ELEC.START.FLY(SKSN-0605) Price: $4.99 |
| 22 |
75-6250 |
HOSE Price: $175.77 |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 23 |
587176901 |
VALVE COVER LCT 179/208 This part replaces 532420580. Price: $44.99 |
| 24 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 25 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 25 |
532429597 |
FUEL.PETCOCK.1/4".LCT This part replaces 532420592. Price: $19.99 |
| 26 |
532424970 |
ELECT.FLYWHEEL.ASSY(SKSN-0405) Price: $89.99 |
| 26 |
75-0600 |
UNIT-STEERING, POWER Price: $1,809.64 |
| 26A |
532429236 |
FLYWHL.ASSY.MANUL.SK2081700 Price: $49.99 |
| 27 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 27 |
532424969 |
HIGH OIL FILL DIPSTICK ASSEM Price: $24.99 |
| 28 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 28 |
532420586 |
FLYWHEEL FAN 420586 Price: $9.99 |
| 29 |
532420595 |
KIT.IGNITION.COIL Price: $44.99 |
| 29 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 30 |
583630001 |
COVER.CRANKCASE.LCT.208CC This part replaces 532420606. Price: $59.99 |
| 31 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 31 |
532420961 |
DIPSTICK SMALL Price: $9.99 |
| 32 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 32 |
532424959 |
CHARGING.COIL(ELEC)SKSN0406.1 Price: $37.99 |
| 33 |
104-9324 |
SPEEDOMETER Price: $312.55 |
| 33 |
532429244 |
ELECTRIC.START.BRKT(SKSN0606) Price: $4.99 |
| 34 |
27-2360 |
SWITCH Price: $46.56 |
| 34 |
532429246 |
SPARK.PLUG.BOOT(SK2083800) Price: $11.99 |
| 35 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 36 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 36 |
581768701 |
CARBURETTOR GOVERNOR LINK.ASM. This part replaces 532420601. Price: $7.99 |
| 37 |
532420602 |
KIT.GOVERNOR.CRANK(SK208-3100) Price: $5.99 |
| 38 |
532429251 |
THROTTLE CONTROL ASSEM Price: $29.99 |
| 39 |
582051401 |
CAMSHAFT.208CC.EPA This part replaces 532420584. Price: $89.99 |
| 40 |
582045701 |
CYLINDER HEAD.208CC.EPA W/GASK This part replaces 532420578. Price: $159.99 |
| 41 |
532424939 |
SPARK.PLUG(2083810) Price: $14.99 |
| 42 |
532424936 |
CDI.BOX.BRACKET SNOW Price: $6.99 |
| 44 |
532420582 |
KIT.PISTON.SRV(SK208-1400) Price: $119.99 |
| 45 |
532429259 |
SPEED.CTRL.BRKT.(SKSN0150) Price: $11.99 |
| 46 |
532429260 |
SHIELD.VAPOR.SNOW Price: $14.99 |
| 47 |
532429599 |
SEAL KIT (2 PCS) This part replaces 532429261. Price: $14.99 |
| 48 |
532429262 |
WIRE.HARNESS.SNOW Price: $12.99 |
