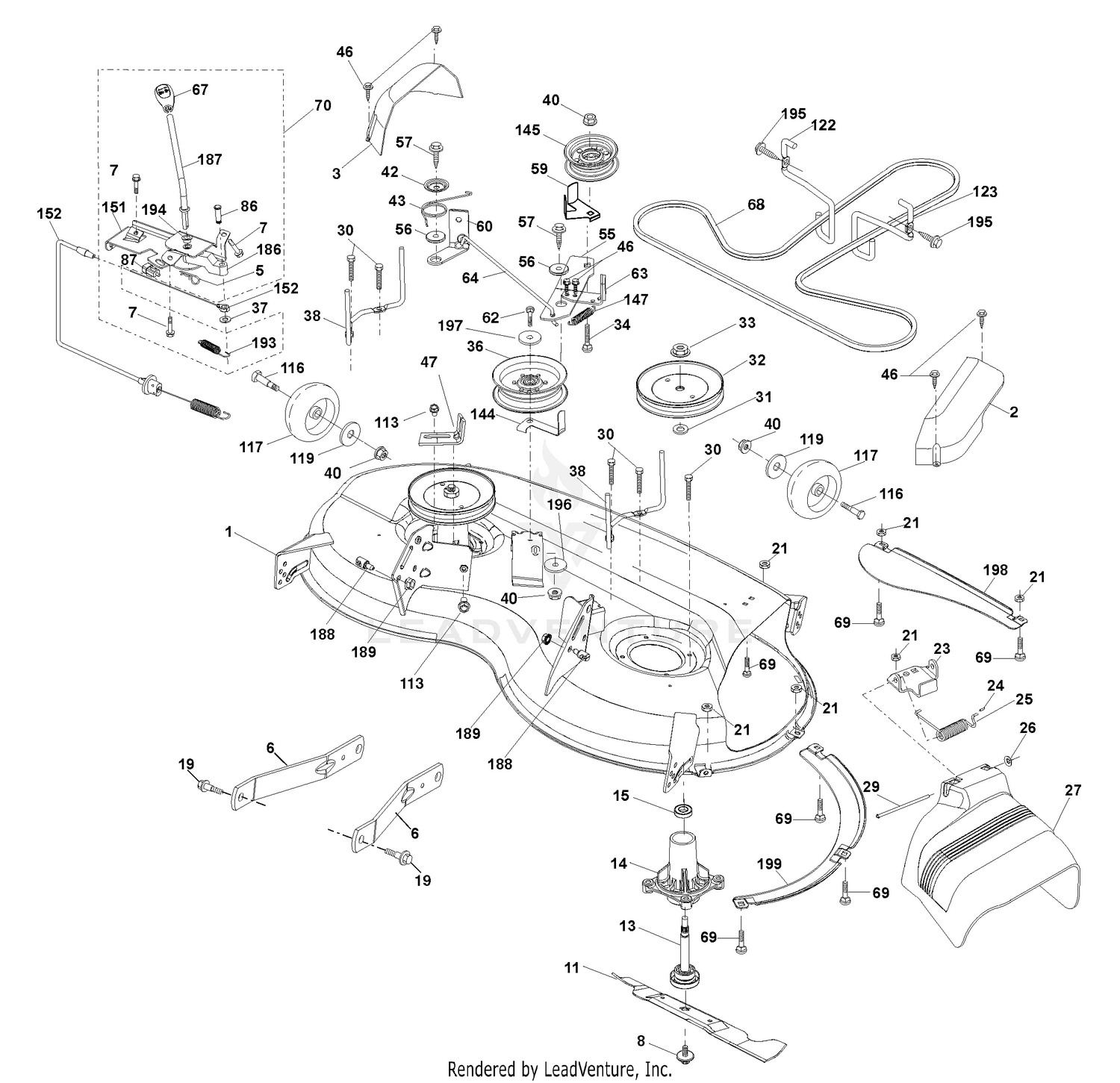

| Ref | Part Number | Description |
|---|
| 1 |
405050X421 |
Mower Housing Price: Call Us |
| 1 |
49-6200-01 |
LEVER-CUTTING Price: $100.17 |
| 2 |
283-61 |
PIN-YOKE Price: $1.56 |
| 2 |
405506 |
Cover Mandrel RH Price: Call Us |
| 3 |
282-2 |
YOKE Price: $30.04 |
| 3 |
405507 |
Cover Mandrel LH Price: Call Us |
| 4 |
3220-2 |
NUT-JAM Price: $0.50 |
| 5 |
49-5430 |
ROD-CONTROL Price: $75.94 |
| 5 |
STD624008 |
Retainer Spring Price: Call Us |
| 6 |
195186 |
Arm Suspension Price: Call Us |
| 6 |
49-6110-01 |
GUARD-ROD, TRANSMISSION Price: $65.82 |
| 7 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 7 |
191611 |
Screw 10 x 3/4 Single Hex Price: Call Us |
| 8 |
100-9819 |
LATCH ASM Price: $127.30 |
| 8 |
193003 |
Bolt/Washer asm 7/16-20 unf Price: Call Us |
| 9 |
100-9821 |
PLATE-SWITCH, REED Price: $20.58 |
| 10 |
93-8062 |
DECAL-BRAKE, PARKING Price: $4.95 |
| 11 |
405380 |
Blade Mower Price: Call Us |
| 11 |
83-0640-01 |
PLATE-FOOTREST Price: $105.48 |
| 12 |
49-6120 |
PAD-FOOTREST Price: $33.37 |
| 13 |
192872 |
Shaft Assembly, Mandrel Price: Call Us |
| 13 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 14 |
32141-111 |
NUT-ADJUSTING Price: $6.09 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
95-1629 |
HINGE-LOWER Price: $10.72 |
| 16 |
93-8075 |
DECAL-MOW/LIFT Price: $6.44 |
| 17 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 18 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 19 |
196539 |
Bolt, Shoulder Price: Call Us |
| 19 |
3274-31 |
SCREW-HSBH Price: $0.89 |
| 20 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
83-0200-01 |
PLATE-COVER, LH Price: $46.92 |
| 23 |
192557 |
Bracket, Deflector Price: Call Us |
| 23 |
32128-33 |
NUT-HF Price: $0.25 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 25 |
197026 |
Spring, Torsion, Deflector Price: Call Us |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
93-9901-01 |
BRACKET-LOCKOUT, MOW Price: $92.00 |
| 27 |
405357 |
Shield, Deflector Price: Call Us |
| 27 |
83-0080 |
SPRING-PIVOT, LIFT Price: $20.57 |
| 28 |
106-6396 |
LIFT-PIVOT V Price: $63.16 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 29 |
27-2270 |
ROD-ADJUSTMENT, BRAKE Price: $32.18 |
| 30 |
10-8100-01 |
STRAP-SHAFT, BRAKE Price: $34.17 |
| 30 |
173984 |
Screw Thdrol Rolling Wsh Hd Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 31 |
32121-35 |
PIN-ROLL Price: $0.79 |
| 32 |
195945 |
Pulley, Mandrel Price: Call Us |
| 32 |
88-9640-01 |
BRACKET-LIFT PIVOT, LH Price: $42.90 |
| 33 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 33 |
400234 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 34 |
72110612 |
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 35 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 36 |
196106 |
Pulley, Idler, Flat Price: Call Us |
| 36 |
93-7631 |
PAD-FOOT, LIFT Price: $8.10 |
| 37 |
106-6395 |
CUTTING CONTROL SHAFT ASM Price: $151.92 |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 38 |
199189 |
Keeper Belt LH Mandrel Price: Call Us |
| 38 |
83-2590 |
BOLT-SHOULDER, PIVOT Price: $50.18 |
| 39 |
83-0160 |
SHAFT-BRAKE Price: $111.83 |
| 40 |
106-6394 |
MOW PEDAL ASM Price: $72.96 |
| 40 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 41 |
93-7630 |
PAD-FOOT Price: $8.20 |
| 42 |
198410 |
Spring Trosion Brake Price: Call Us |
| 42 |
93-7629 |
PAD-FOOT, BRAKE Price: $25.13 |
| 43 |
197256 |
Spring Torsion Retainer Price: Call Us |
| 43 |
88-9630-01 |
BRACKET-LIFT PIVOT, RH Price: $42.90 |
| 44 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 45 |
321-11 |
SCREW-HH Price: $0.36 |
| 46 |
137729 |
Screw Price: Call Us |
| 46 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 47 |
197250 |
Bracket Clutch Cable Price: Call Us |
| 47 |
69-9760 |
COVERPLATE Price: $5.38 |
| 48 |
56-7970 |
CLAMP-TUBE Price: $10.02 |
| 49 |
95-5997 |
DECAL Price: $28.82 |
| 50 |
10-8140 |
SPRING-LATCH, BRAKE Price: $18.38 |
| 51 |
321-3 |
SCREW-HH Price: $0.28 |
| 52 |
93-9898 |
DECAL-LOCK Price: $5.59 |
| 53 |
93-9903 |
PIN-MOW, LOCKOUT Price: $65.65 |
| 54 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 55 |
197249 |
Arm, Idler Price: Call Us |
| 55 |
27-2320 |
BEARING Price: $15.22 |
| 56 |
199092 |
Spacer, Retainer Price: Call Us |
| 56 |
3-1506 |
BUSHING Price: $2.42 |
| 57 |
17000616 |
Screw Hexwsh Thd 3/8-16 x 1 Price: Call Us |
| 57 |
76-0410 |
SPRING-COMPRESSION Price: $5.92 |
| 58 |
93-9904 |
ARM-MOW, LOCKOUT Price: $29.06 |
| 59 |
141043 |
Guard, Tuv Idler (94) Price: Call Us |
| 59 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 60 |
104-2057 |
SENSOR Price: $136.35 |
| 60 |
400132 |
Arm Brake Mower Price: Call Us |
| 61 |
33113-016 |
SCREW-HH This part replaces 48-7620. Price: $0.34 |
| 62 |
33093-00 |
WASHER-FLAT This part replaces 48-8010. Price: $0.70 |
| 62 |
74520636 |
Bolt Fin Hex 3/8-16 x 2-1/4 Gr. 5 Price: Call Us |
| 63 |
199478 |
Arm Brake Mower Price: Call Us |
| 63 |
33023-00 |
NUT-LOCK This part replaces 49-7810. Price: $0.25 |
| 64 |
405139 |
Linkage Brake Price: Call Us |
| 64 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 65 |
80-7730 |
SPACER Price: $1.97 |
| 67 |
198398X421 |
Handle, Clutch Cable Price: Call Us |
| 68 |
405143 |
V-Belt Price: Call Us |
| 69 |
72140505 |
Bolt Price: Call Us |
| 70 |
199779 |
Clutch Asm. Manual Price: Call Us |
| 86 |
197798 |
Pin Attachment Cable Price: Call Us |
| 87 |
197802 |
Switch Interlock Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut, Crownlock 3/8-1 Price: Call Us |
| 119 |
19121414 |
Washer 13/32 x 7/8 x 14 Ga. Price: Call Us |
| 122 |
197258 |
Keeper Belt Eng. LH Price: Call Us |
| 123 |
197259 |
Keeper Belt Eng. RH Price: Call Us |
| 144 |
199204 |
Keeper Belt Price: Call Us |
| 145 |
177968 |
Pulley Idler Price: Call Us |
| 147 |
401872 |
Spring Return Price: Call Us |
| 151 |
199778 |
Bracket Clutch CBL Price: Call Us |
| 152 |
408714 |
Cable Clutch Manual w/Spr. Price: Call Us |
| 186 |
197799 |
Arm Acutator CL Cable Price: Call Us |
| 187 |
400426 |
Lever Control CL Cable Price: Call Us |
| 188 |
195161 |
Stud Fastener Price: Call Us |
| 189 |
73900500 |
Nut Lock Hex Flange Price: Call Us |
| 193 |
197801 |
Spring Plunger Actuator Price: Call Us |
| 194 |
197797 |
Bearing Control Lever Clutch Price: Call Us |
| 195 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 196 |
19133210 |
Washer 13/32 x 2 x 10 Ga Price: Call Us |
| 197 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 198 |
403149 |
Baffle Center Front Price: Call Us |
| 199 |
403150 |
Baffle Front RH Price: Call Us |
