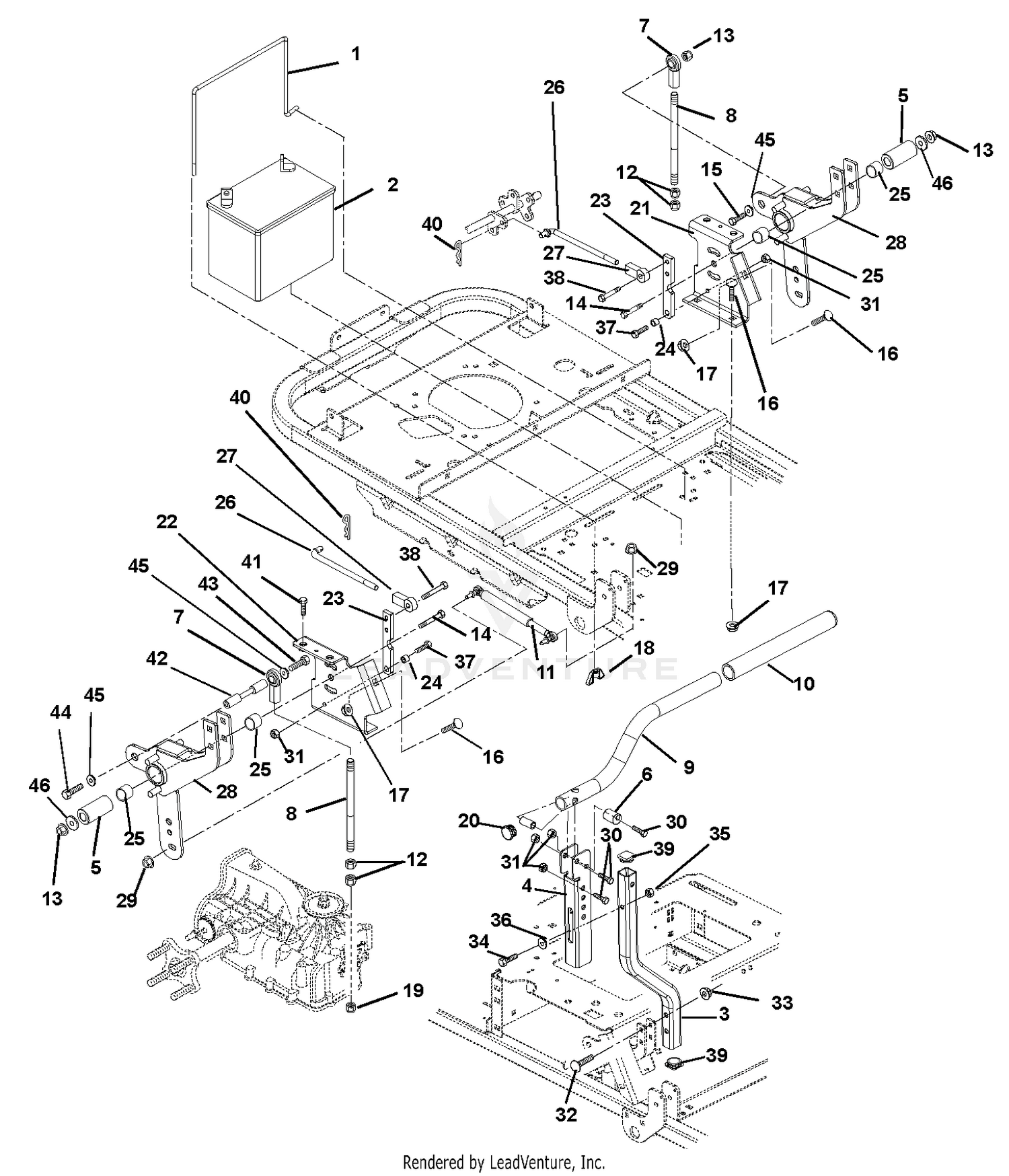

| Ref | Part Number | Description |
|---|
| 1 |
01533400 |
BATTERY ROD Price: $22.45 |
| 3 |
00361751 |
CONTROL ARM Price: $21.95 |
| 4 |
00362651 |
CHANNEL, HANDLEBAR ADJUSTMENT Price: $18.50 |
| 5 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 6 |
00372300 |
BSHG,ECCEN .328X.750X1.01 PM Price: $10.45 |
| 7 |
03461700 |
ROD END, 1/2 RH Price: $41.95 |
| 8 |
01569600 |
ROD-TRANSAXLE LH Price: $59.95 |
| 9 |
00362851 |
HANDLEBAR Price: $98.95 |
| 10 |
01570000 |
GRIP - HANDLEBAR Price: $15.45 |
| 11 |
00188700 |
DAMPER Price: $87.95 |
| 12 |
06539500 |
NUT-JAM .50-20 GR2 YWZC Price: $2.45 |
| 13 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 14 |
05901737 |
BLT, HEX .50-13X3.00 G5 ZCC This part replaces 05959900. Price: $4.45 |
| 15 |
05901939 |
BLT, HEX .50-13X1.75 G5 ZCC This part replaces 05970600. Price: $3.95 |
| 16 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 17 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 18 |
06500805 |
NUT, LK-WING .25-20 ZCC This part replaces 06537500. Price: $4.45 |
| 19 |
06544000 |
NUT-LK-JAM-NYL .50-20 GR2 YWZC Price: $2.95 |
| 20 |
07533300 |
CAPLUG, HANDLEBAR Price: $2.45 |
| 21 |
00359700 |
WMT, CONTROL LH Price: $95.95 |
| 22 |
00359800 |
WMT, CONTROL RH Price: $95.95 |
| 23 |
00383200 |
BRACKET, NEUTRAL STOP Price: $28.95 |
| 24 |
00359900 |
BSHG, SPCR .330X.500X.385 Price: $10.45 |
| 25 |
05435800 |
BRG, 1.00 X 1.12 X .75 Price: $8.45 |
| 26 |
00365100 |
LINK, BRAKE ROD Price: $19.95 |
| 27 |
03563100 |
ROD END, .38 RH Price: $15.45 |
| 28 |
00371900 |
WMT, STEERING CONTROL This part replaces 00371951. Price: $152.95 |
| 29 |
06500007 |
NUT, TOP LOCK FLG 8X1.25 YWZC Price: $2.45 |
| 30 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 31 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 32 |
06200324 |
BLT, RHSN .31-18X1.75 G5 ZCC This part replaces 06220200. Price: $2.95 |
| 33 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 35 |
06500832 |
NUT-NYL .25-20 G5 ZCC This part replaces 06531000. Price: $4.45 |
| 36 |
05513400 |
BSHG-FLG .265X.437X.250X.750 Price: $1.95 |
| 37 |
05901803 |
BLT, HEX .31-18X1.25 G5 ZCC This part replaces 05947500. Price: $2.45 |
| 38 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45 |
| 39 |
00166800 |
CAPLUG SQR 1-14-20 Price: $3.45 |
| 40 |
06700222 |
PIN, HAIR #213 .08X1.19 ZCC This part replaces 06713500. Price: $0.45 |
| 41 |
06000001 |
SCR-SET .38-16X2.0 SQHCUP YWZC This part replaces 05900016. Price: $2.95 |
| 42 |
00470600 |
LINKAGE, STEERING Price: $52.75 |
| 43 |
05901637 |
BLT,HEX .50-13X1.25 G5 ZCC This part replaces 05958900. Price: $2.95 |
| 44 |
05901715 |
BLT, HEX .50-13X1.00 G5 ZCC This part replaces 05947100. Price: $2.45 |
| 45 |
06300117 |
WSHR,LK-HVY .500X.151 ZCC This part replaces 06306600. Price: $2.45 |
