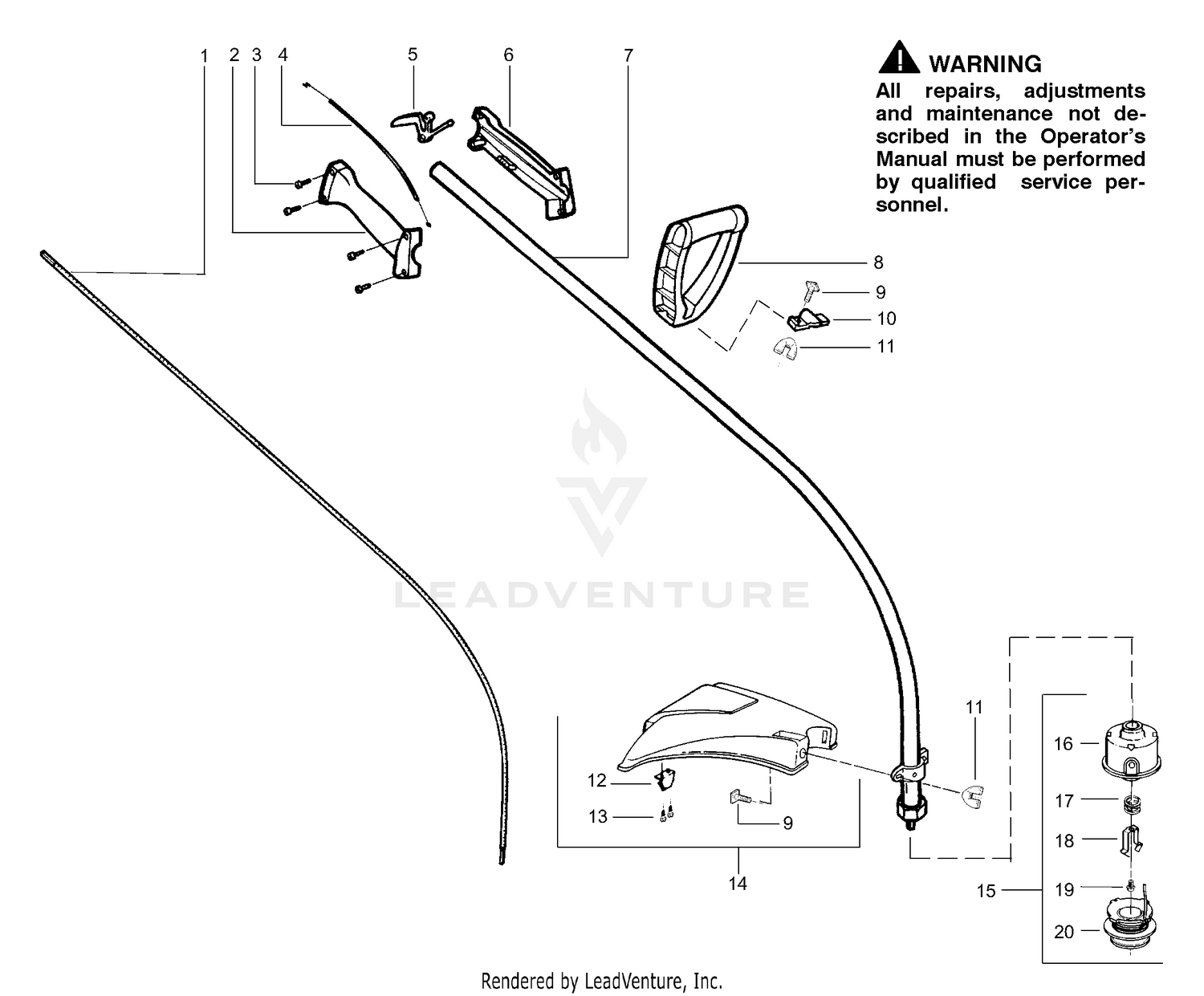

| Ref | Part Number | Description |
|---|
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED Price: $1,130.23 |
| 1 |
530095613 |
Shaft-Flex Price: $5.99 |
| 2 |
530038581 |
Throttle Hsg. (Right) Price: $2.99 |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 3 |
530016349 |
Screw-Throttle Hsg. Price: $1.99 |
| 4 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 4 |
530071548 |
Kit-Throttle Cable Ass'y. Price: $3.99 |
| 5 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 5 |
530038682 |
Trigger Price: $1.99 |
| 6 |
43-6810 |
SPIDER-TORQUE This part replaces 40-2190. Price: $138.50 |
| 6 |
530038580 |
Throttle Hsg. (Left) Price: $2.99 |
| 7 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 7 |
530071311 |
Drive Shaft Hsg. Ass'y This part replaces 530071425. Price: $23.99 |
| 8 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 8 |
530038708 |
Assist Handle Price: $1.32 |
| 9 |
21-9470 |
SEE PB #747 Price: Call Us |
| 9 |
530015820 |
Bolt-Handle/Shield Price: $1.99 |
| 10 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 10 |
530094742 |
Clamp-Handle Assist Price: $2.99 |
| 11 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 11 |
530091373 |
Nut This part replaces 530016118. Price: $1.99 |
| 12 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 12 |
530052287 |
Line Limiter Price: $1.99 |
| 13 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 13 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 15 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 16 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 16 |
530069690 |
Kit-Hub Ass'y Price: $4.00 |
| 17 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 17 |
530401464 |
Spring-Compression Price: $0.99 |
| 18 |
32152-5 |
NUT-HEX Price: $0.54 |
| 18 |
530401466 |
Clip-Retainer-Head Price: $1.99 |
| 19 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 19 |
530401467 |
Screw w/ Washer-Head Price: Call Us |
| 20 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 20 |
952711527 |
Spool w/Line Price: $7.95 |
| 21 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
