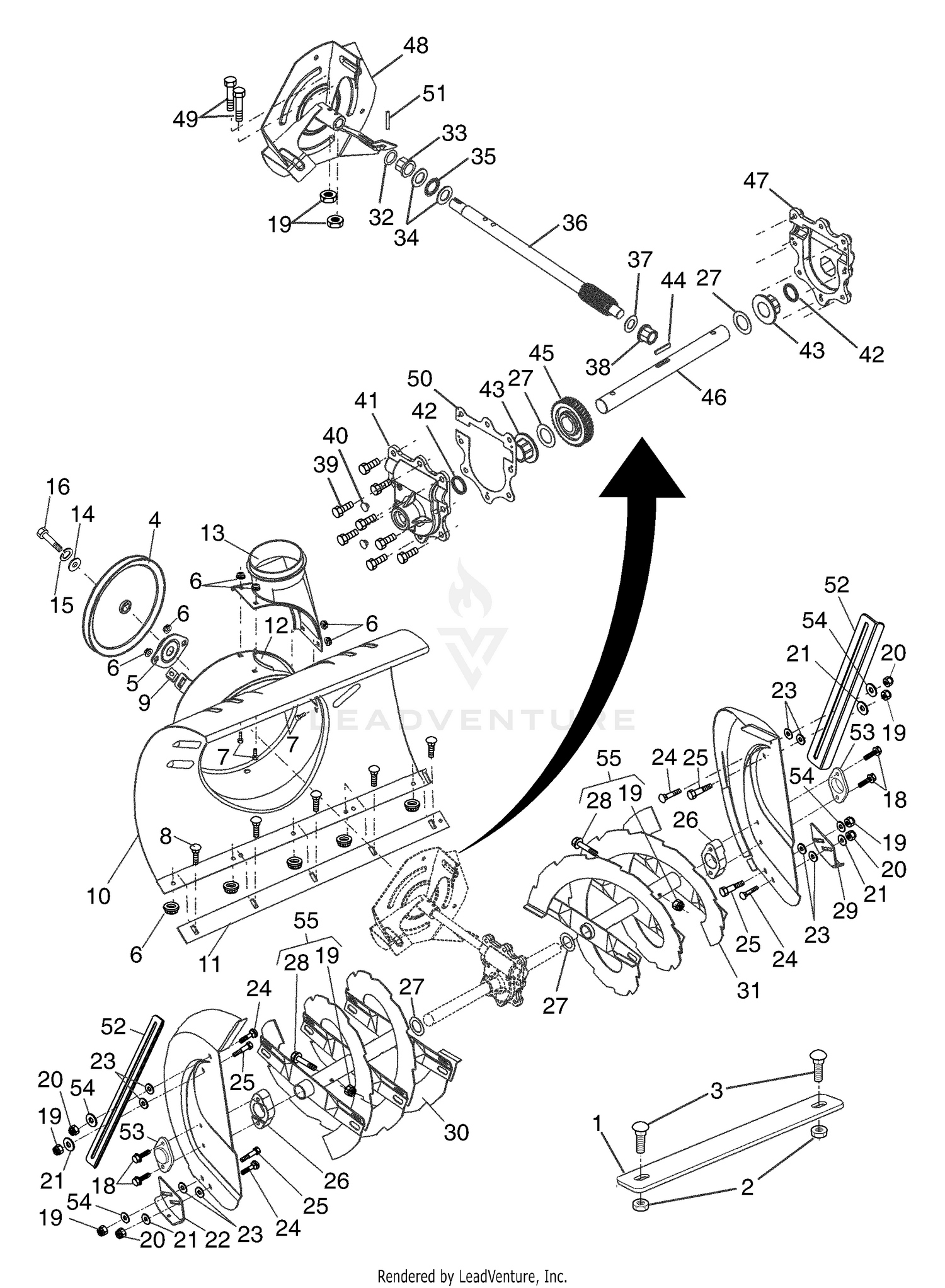

| Ref | Part Number | Description |
|---|
| 1 |
27-7150 |
A/C CUP ASM Price: $82.89 |
| 1 |
532182515 |
WEIGHT,AUGER HOUSING 27 (2 2MC This part replaces 532188703. Price: $79.99 |
| 2 |
27-7140 |
SKIRT-BAFFLE Price: $85.92 |
| 2 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 3 |
27-7120 |
NUT AND GASKET ASM Price: $15.55 |
| 3 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 4 |
27-7130 |
CLAMP ASM Price: $49.80 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532181083. Price: $27.99 |
| 5 |
32107-11 |
NUT-SQUARE Price: $0.22 |
| 5 |
532188909 |
BEARING FLANGE This part replaces 532188910. Price: $24.99 |
| 6 |
3258-19 |
SCREW Price: $0.42 |
| 6 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 7 |
27-7170 |
MOUNTING BAND ASM Price: $48.11 |
| 7 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 8 |
108-3833 |
FILTER-AIR This part replaces 27-7110. Price: $26.73 |
| 8 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 9 |
532178820 |
NUT, CAGE 3/8-16 Price: $5.99 |
| 10 |
581708369 |
KIT.AUGER.HOUSING.404930X668 This part replaces 532188191. Price: $279.99 |
| 10 |
62-6300 |
SLEEVE ASM Price: $31.93 |
| 11 |
33-1270 |
BOWL-CLEAR Price: $10.91 |
| 11 |
532435830 |
BAR.SCRAPER.30.BLACK This part replaces 532184098. Price: $17.99 |
| 12 |
33-1260 |
COVER ASM Price: $36.59 |
| 12 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 13 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 14 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 15 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 16 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 18 |
532179582 |
SCREW, HEX HD 5/16X1 Price: $3.99 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 20 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 21 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 22 |
532436125 |
PLATE.SKID.ADJ.RH.BLACK This part replaces 532184094. Price: $6.99 |
| 23 |
532179246 |
WASHER, NYLON FRICTION Price: $3.99 |
| 24 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 25 |
532185600 |
SHOULDER BOLT Price: $3.99 |
| 26 |
532188170 |
BEARING RETAINER, PLASTIC Price: $7.99 |
| 27 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 29 |
532174762 |
PLATE.SKID.ADJUSTABLE.LH.BLACK This part replaces 532184093. Price: $7.99 |
| 30 |
532435545 |
AUGER.WELDMENT.RH.30.BB This part replaces 532188193. Price: $139.99 |
| 31 |
532188180 |
AUGER ASSY, LH This part replaces 532188192. Price: $106.99 |
| 32 |
532174699 |
O-RING Price: $7.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 This part replaces 532174700. Price: $7.99 |
| 34 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 35 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 36 |
532407757 |
SHAFT, IMPELLER This part replaces 532174660. Price: $89.99 |
| 37 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 38 |
532174686 |
BUSHING.FLANGE.(.625X.75) Price: $22.99 |
| 39 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 40 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW Price: $3.99 |
| 41 |
532174688 |
HOUSING.GEARBOX.RH.SNOW Price: $22.99 |
| 42 |
532174698 |
SEAL, OIL Price: $4.99 |
| 43 |
532174701 |
BUSHING FLANGE 1" Price: $29.99 |
| 44 |
532189282 |
KEY, SQUARE 1/4 X .875 This part replaces 532178879. Price: $4.99 |
| 45 |
598831601 |
Service Kit This part replaces 532174659. Price: $199.99 |
| 46 |
532174657 |
SHAFT, AUGER Price: $59.99 |
| 47 |
532407765 |
HOUSING.GEARBOX.LH(SERVICE) This part replaces 532174687. Price: $22.99 |
| 48 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 49 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 50 |
532175311 |
GASKET.AUGER.GEARBOX Price: $7.99 |
| 51 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532184205. Price: $3.99 |
| 52 |
532435832 |
BAR.DRIFT.CUTTER.BLACK This part replaces 532184747. Price: $19.99 |
| 53 |
532187925 |
BEARING.BALL.AUGER.SHAFT Price: $54.99 |
| 54 |
819091214 |
WASHER This part replaces 532053847. Price: $8.99 |
