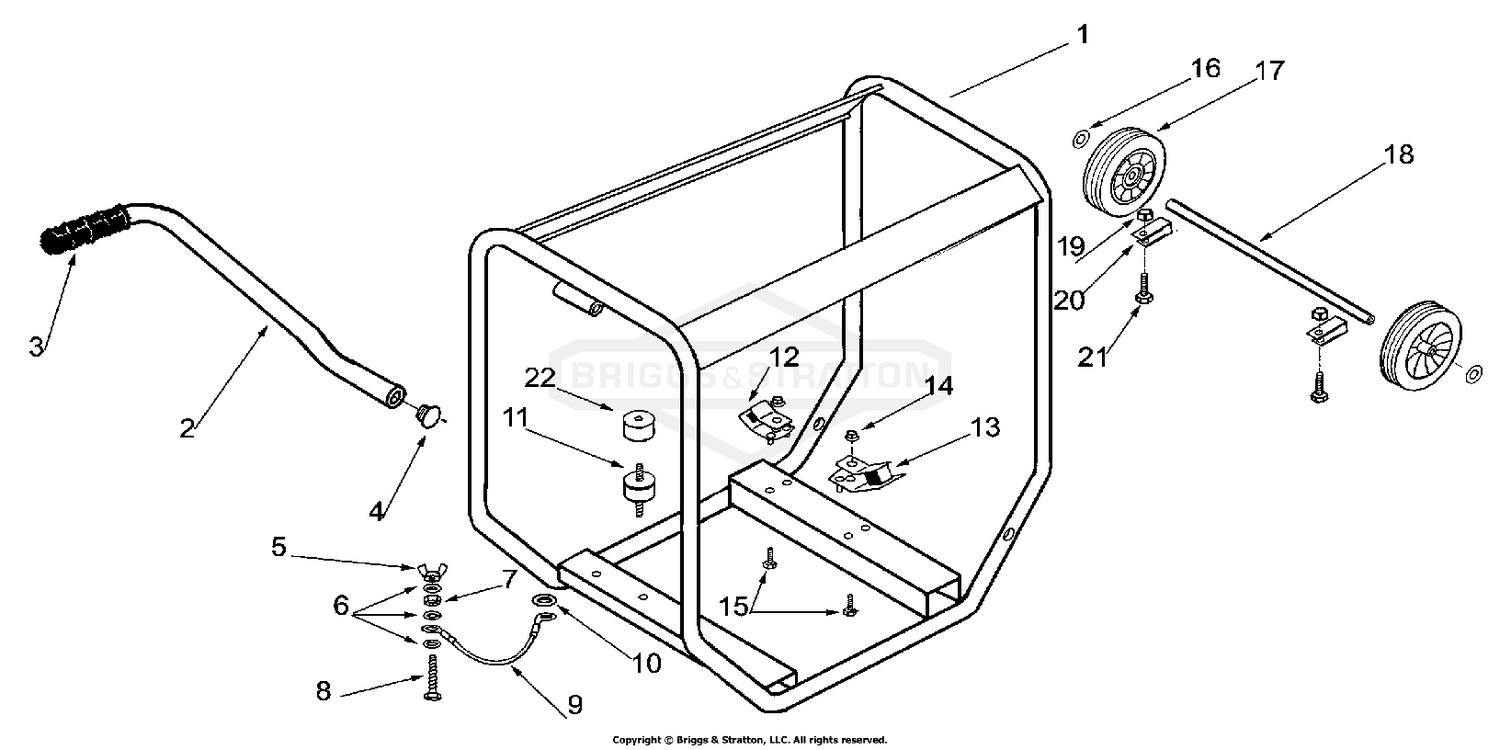

General Assembly

General Assembly

Parts (22)

RefPart NumberDescription
1 102851GS Cradle Handy Gen 2600/3400 Price: Call Us
2 102852GS Handle- Fold Down Price: Call Us
3 102465GS Grip 3/4" Handle Black Price: Call Us
4 102467GS Ferrule Plastic Plug 3/4" Tube Price: Call Us
5 102036GS Nut Wing M6-1.0 Price: Call Us
6 ~NSP Washer Shakeproof 1/4" & M6 Int Price: Call Us
7 ~NSP Nut Full M6-1.0 Price: Call Us
8 ~NSP Screw Set M6-1.0x25mm Plated Price: Call Us
9 102050GS Lead Earth Assy 145mm Price: Call Us
10 ~NSP Washer Shakeproof M8 int Price: Call Us
11 102111GS Vibration Mount 32mm Diameter Price: Call Us
12 102033GS Vibration Mount 45 Degree Soft Price: Call Us
13 102031GS Vibration Mount 45 Degree Hard Price: Call Us
14 ~NSP Nut Flange M8-1.25 Price: Call Us
15 ~NSP SCREW SET M8-1.25*35MM Price: Call Us
16 102547GS Washer M10 Form C oxy-blackened Price: Call Us
17 102853GS Wheel 5.5" od 1"Wide Price: Call Us
18 102854GS Axle For Cradle Handy Gen Price: Call Us
19 ~NSP Nut Locking Flange M6-1.0mm Price: Call Us
20 102855GS Cleat: 10mm Cable-M6 Price: Call Us
21 ~NSP Screw Machine H*Hd M6-1.0*20mm Price: Call Us
22 102136GS Spacer 24mm Price: Call Us
