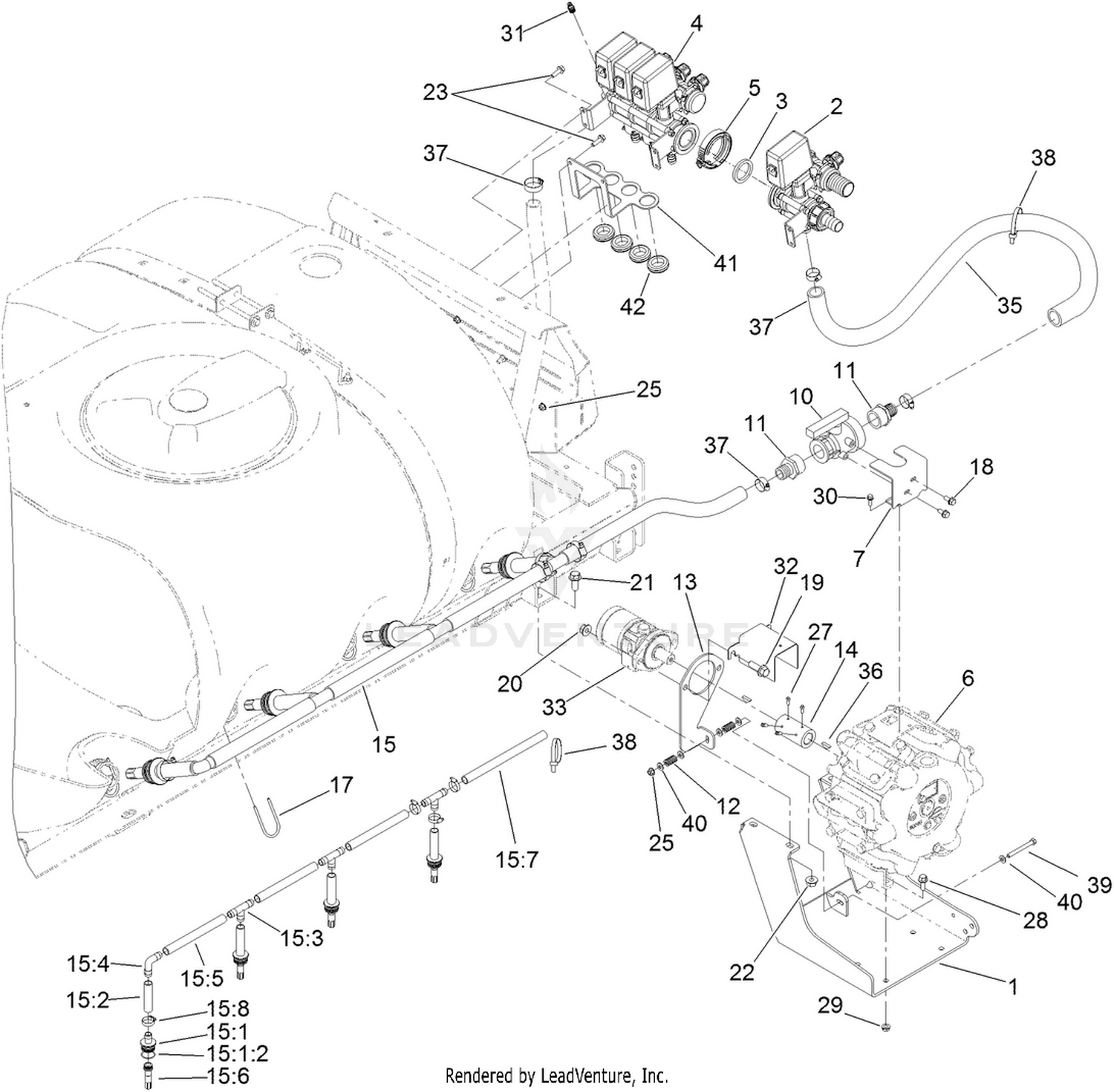

| Ref | Part Number | Description |
|---|
| 1 |
117-0655-03 |
BRACKET-PUMP Price: $298.43 |
| 3 |
104-9090 |
GASKET Price: $3.43 |
| 5 |
104-9089 |
CLAMP-SCREW, WORM Price: $10.92 |
| 6 |
136-2254 |
PUMP - 364, LS KIT This part replaces 117-0713. Price: $5,279.52 |
| 7 |
119-0442-03 |
BRACKET-BALL VALVE Price: $19.80 |
| 10 |
108-0069 |
VALVE-BALL Price: $154.28 |
| 11 |
110-5224 |
FITTING-BARBED, STRAIGHT Price: $5.40 |
| 12 |
110-5331 |
SPRING-COMPRESSION Price: $22.18 |
| 13 |
117-8040-03 |
PLATE-MOUNT, MOTOR Price: $29.58 |
| 14 |
117-8045 |
COUPLER Price: $61.81 |
| 17 |
100-8635 |
FORK Price: $4.91 |
| 18 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 19 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 20 |
32128-49 |
NUT-HHF Price: $1.04 |
| 21 |
110-5057 |
CAPSCREW-HHF Price: $2.71 |
| 22 |
108-3745 |
NUT-HHF, WHIZ Price: $1.15 |
| 23 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 25 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 27 |
3241-7 |
SCREW-SQH Price: $3.39 |
| 28 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 29 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 30 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 31 |
100-8674 |
COUPLER-TUBE Price: $60.10 |
| 32 |
120-0628-03 |
GUARD-SHAFT, PUMP Price: $22.59 |
| 33 |
117-0706 |
HYD MOTOR ASM Price: $793.55 |
| 35 |
119-0480 |
HOSE-VALVE, AGITATION Price: $36.95 |
| 36 |
106-1990 |
KEY-WOODRUFF Price: $3.81 |
| 37 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 38 |
3334-945 |
TIE-CABLE Price: $0.43 |
| 39 |
322-14 |
SCREW-HH Price: $1.01 |
| 40 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 41 |
120-8594-03 |
HOSE-LOOM, 4 HOLE Price: $31.03 |
