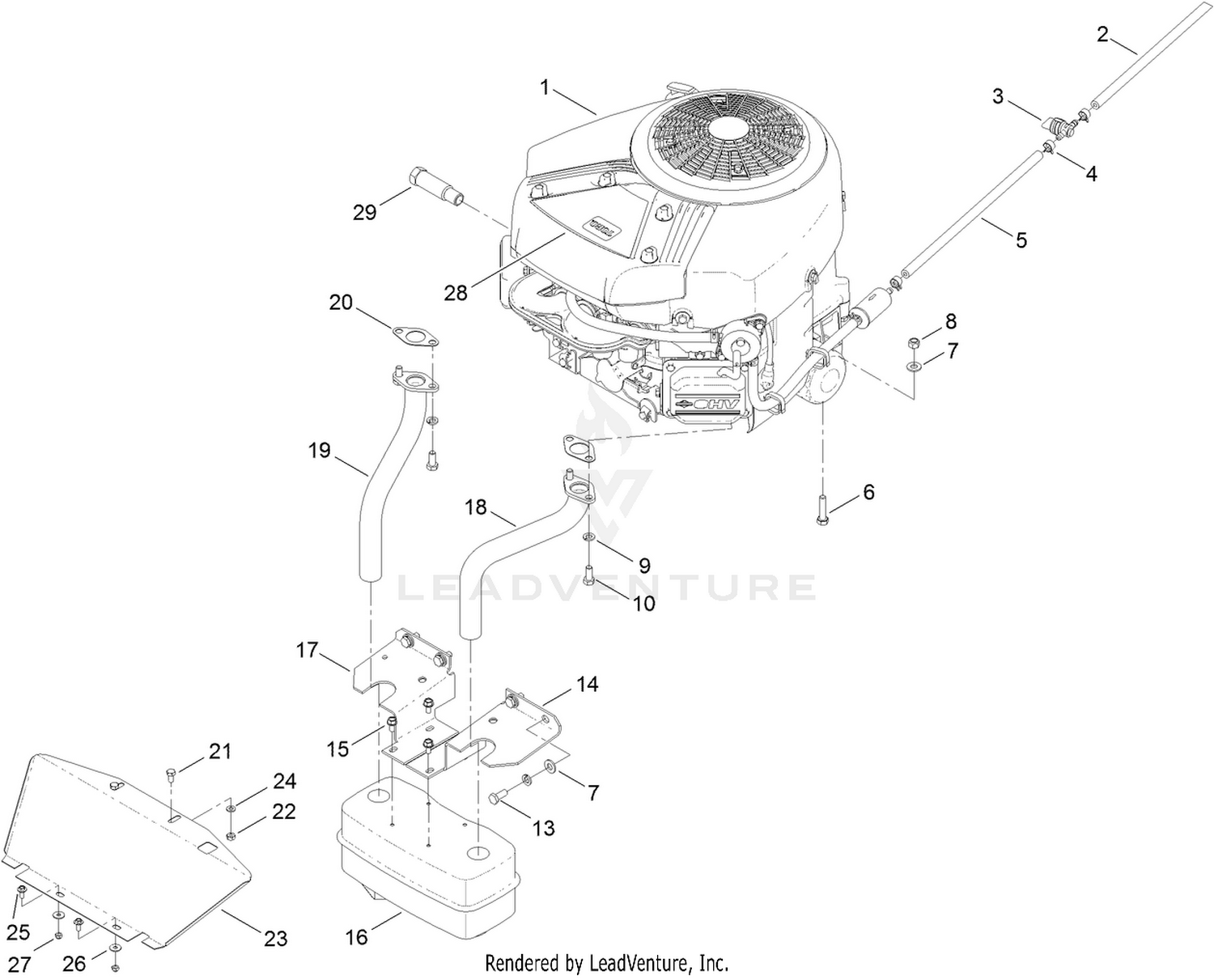

Engine and Muffler Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 110-8692 | LINE-FUEL Price: Call Us |
| 3 | 104-3224 | VALVE-TANK, FUEL Price: Call Us |
| 4 | 104-3212 | CLAMP-LINE, FUEL Price: Call Us |
| 5 | 110-8696 | USE 106-0890 Price: Call Us |
| 6 | 33114-035 | SCREW-HH Price: $3.77 |
| 7 | 33094-00 | WASHER-PLAIN Price: $0.25 |
| 8 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 9 | 104-2927 | WASHER-SPRING Price: Call Us |
| 10 | 322-3 | SCREW-HH Price: $0.79 |
| 13 | 33114-020 | SCREW-HH Price: $0.28 |
| 14 | 104-3214 | GUARD-MUFFLER, LH Price: Call Us |
| 15 | 106-5763 | Screw Price: Call Us |
| 16 | 104-3225 | MUFFLER Price: Call Us |
| 17 | 104-3215 | GUARD-MUFFLER, RH Price: Call Us |
| 18 | 104-3216 | TUBE-EXHAUST, LH Price: Call Us |
| 19 | 104-3217 | TUBE-EXHAUST, RH Price: Call Us |
| 20 | 104-3226 | GASKET-EXHAUST Price: $6.51 |
| 21 | 33113-012 | SCREW-HH Price: $0.71 |
| 22 | 33023-00 | NUT-LOCK Price: $0.25 |
| 23 | 104-3219 | SHIELD-HEAT Price: Call Us |
| 24 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 25 | 104-2980 | SCREW Price: Call Us |
| 26 | 104-2943 | WASHER-FLAT Price: Call Us |
| 27 | 87-5140 | NUT-LOCK Price: $0.25 |
| 28 | 117-7820 | DECAL-ENGINE Price: Call Us |
