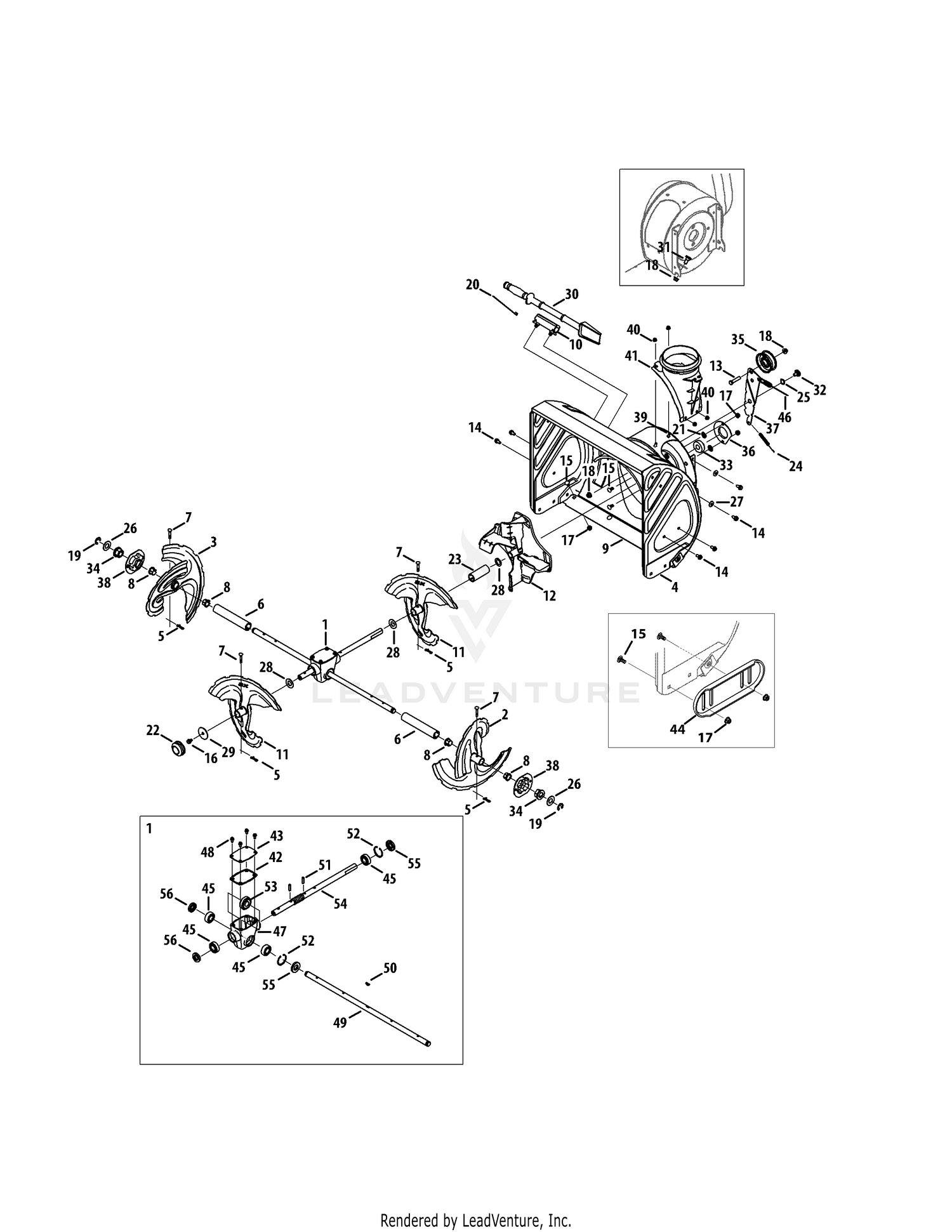

| Ref | Part Number | Description |
|---|
| 1 |
918-07027 |
GEARBOX ASSEMBLY 24" 3X HD Price: $314.87 |
| 2 |
684-05065-0638 |
SPIRAL ASSEMBLY (LH) (MTD RED) Price: $74.51 |
| 3 |
684-05064-0637 |
SPIRAL ASSEMBLY (RH) This part replaces 684-05064-0638. Price: $67.70 |
| 5 |
714-04040 |
Bow Tie Cotter Pin Price: $1.28 |
| 6 |
731-10282 |
SPACER Price: $7.44 |
| 7 |
738-04124A |
Shear Pin Price: $1.56 |
| 8 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 9 |
790-00120-0637 |
Shave Plate, 24" This part replaces 790-00120-0638. Price: $32.31 |
| 10 |
731-11421 |
Clean-out Tool Mtg. Bracket Price: $9.83 |
| 11 |
684-05015C-0637 |
ACCELERATOR AUGER W/BUSHNG (POWDER BLACK) This part replaces 684-05015B-0662. Price: $65.18 |
| 12 |
684-05030-0637 |
Impeller Assembly This part replaces 684-05030-0638. Price: $69.85 |
| 13 |
710-0347 |
Hex Bolt, 3/8-16 x 1.75 Price: $4.39 |
| 14 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 15 |
710-0451 |
Carriage Bolt, 5/16-18 x .750 Price: $3.53 |
| 16 |
710-0607 |
Hex Washer Screw, 5/16-18 x .500 Price: $6.06 |
| 17 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 18 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 19 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 20 |
725-0157 |
Cable Tie Price: $3.46 |
| 21 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 22 |
731-08637A |
CAP Price: $4.69 |
| 23 |
750-06274A |
Spacer, 1.35 OD x .76 ID x 2.705 Price: $15.80 |
| 24 |
732-04460 |
Extension Spring, .38 OD x 4.59 Price: $4.69 |
| 25 |
736-0174 |
Wave Washer, .625 x .885 x .0175 Price: $5.94 |
| 26 |
736-0188 |
Flat Washer, .76 x 1.49 x .06 Price: $3.75 |
| 27 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 28 |
736-0287 |
Washer, Flat, .793 x 1.24 x .060 This part replaces 936-0287. Price: $3.93 |
| 29 |
736-3040 |
Flat Washer, .406 x 1.92 x .060 Price: $5.52 |
| 30 |
931-2643 |
Clean-Out Tool Price: $16.68 |
| 31 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 32 |
738-0281 |
Screw, Shoulder, .625 x .17, 3/8-16 This part replaces 938-0281. Price: $9.16 |
| 33 |
941-0309 |
Flange Ball Bearing, .75 x 1.85 Price: $69.59 |
| 34 |
741-05041 |
Hex Flange Bearing, .75 ID Price: $8.37 |
| 35 |
756-04224 |
Flat Idler Pulley Price: $24.80 |
| 36 |
790-00075B |
BEARING HOUSING 1.85 ID This part replaces 790-00075. Price: $5.66 |
| 37 |
790-00080D |
AUGER IDLER BRACKET This part replaces 790-00080C-0637. Price: $25.44 |
| 38 |
790-00534-0637 |
Bearing Housing Price: $11.83 |
| 39 |
710-0703 |
Carriage Screw, 1/4-20 x 0.75 Price: $3.66 |
| 40 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 41 |
731-07525 |
Chute Adapter Price: $15.92 |
| 42 |
921-04614A |
Gearbox Gasket Price: $4.64 |
| 43 |
783-08281 |
Gearbox Cover Price: $7.44 |
| 44 |
790-00091-0637 |
Skid Shoe, Deluxe This part replaces 790-00091-0638. Price: $26.92 |
| 45 |
941-05042 |
Ball Bearing, .75 x 40 x 12 Price: $10.24 |
| 46 |
946-04230B |
AUGER DRIVE CABLE 47.48" This part replaces 946-04230A. Price: $21.53 |
| 47 |
919-05029 |
Auger Housing Price: $74.51 |
| 48 |
710-0642 |
Screw, 1/4-20 x 0.75 Price: $4.05 |
| 49 |
711-06266 |
Axle, Auger, 24" Price: $62.38 |
| 50 |
914-0161 |
Hi-Pro Key Price: $3.82 |
| 51 |
715-04034 |
Pin, Roll, .25 x 1.0 Price: $6.01 |
| 52 |
716-05001 |
Retainer Ring Price: $2.77 |
| 53 |
917-04861 |
Worm Gear, 20T Price: $37.82 |
| 54 |
917-05112A |
Worm Shaft Price: $91.32 |
| 55 |
721-04612 |
Seal, .75 x 40mm x .25 Price: $4.56 |
