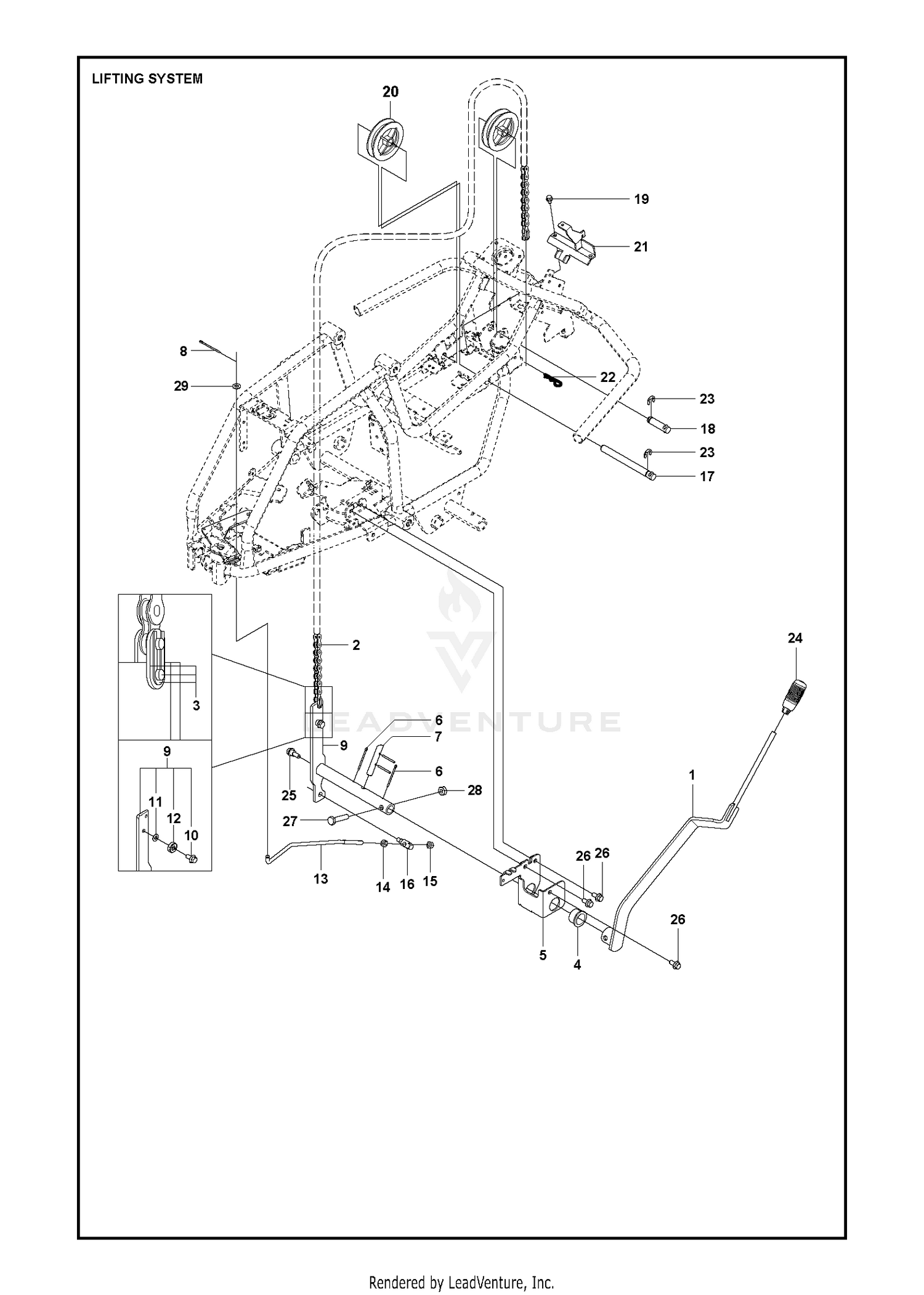

MOWER LIFT / DECK LIFT
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 580389001 | LEVER ASSY Price: $44.99 |
| 2 | 506554606 | ROLLER CHAIN Price: $27.97 |
| 3 | 506554701 | LINK Price: $4.99 |
| 5 | 525404701 | BRACKET ASSY Price: $22.99 |
| 6 | 721618701 | COTTER PIN Price: $3.99 |
| 7 | 525406601 | PIN Price: $7.99 |
| 8 | 721618301 | Split Pin Price: $1.99 |
| 9 | 581545801 | LEVER ASSY Price: $54.99 |
| 10 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 10 | 98-9685 | PAN-OIL Price: $337.48 |
| 11 | 596204101 | WASHER 11/32 X 11/16 X 14 GA T This part replaces 734116301. Price: $2.99 |
| 12 | 738219804 | BALL BEARING Price: $8.99 |
| 13 | 522560101 | ROD Price: $8.99 |
| 14 | 731231801 | NUT Price: $3.99 |
| 15 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 16 | 525491301 | JOINT Price: $6.99 |
| 17 | 525404401 | SHAFT Price: $8.99 |
| 18 | 525404501 | SHAFT Price: $4.99 |
| 19 | 725236461 | SCREW Price: $2.99 |
| 20 | 506905601 | PULLEY Price: $14.99 |
| 21 | 574315801 | BRACKET Price: $7.99 |
| 22 | 721680251 | R-CLIP Price: $4.99 |
| 23 | 735311820 | Lock Ring Price: $1.99 |
| 24 | 588164101 | Handles Price: $11.99 |
| 25 | 506597401 | BOLT Price: $5.99 |
| 26 | 506570103 | BOLT Price: $3.99 |
| 27 | 725250071 | SCREW This part replaces 725250051. Price: $2.99 |
| 28 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 29 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 30 | 98-9351 | BOLT Price: $0.98 |
| 35 | 98-9351 | BOLT Price: $0.98 |
| 40 | 114-8151 | PLUG-DRAIN Price: $9.99 |
| 50 | 98-7524 | GASKET Price: $5.09 |
| 60 | 108-1401 | BASE-FILTER Price: $71.88 |
| 70 | 98-7526 | BOLT Price: $0.80 |
| 80 | 105-3776 | O-RING Price: $5.77 |
| 90 | 98-9670 | GAUGE-OIL Price: $50.49 |
| 100 | 98-9672 | OIL GAUGE GUIDE ASM Price: $60.03 |
| 110 | 98-9722 | O-RING Price: $2.07 |
| 120 | 100-9195 | BOLT Price: $0.72 |
