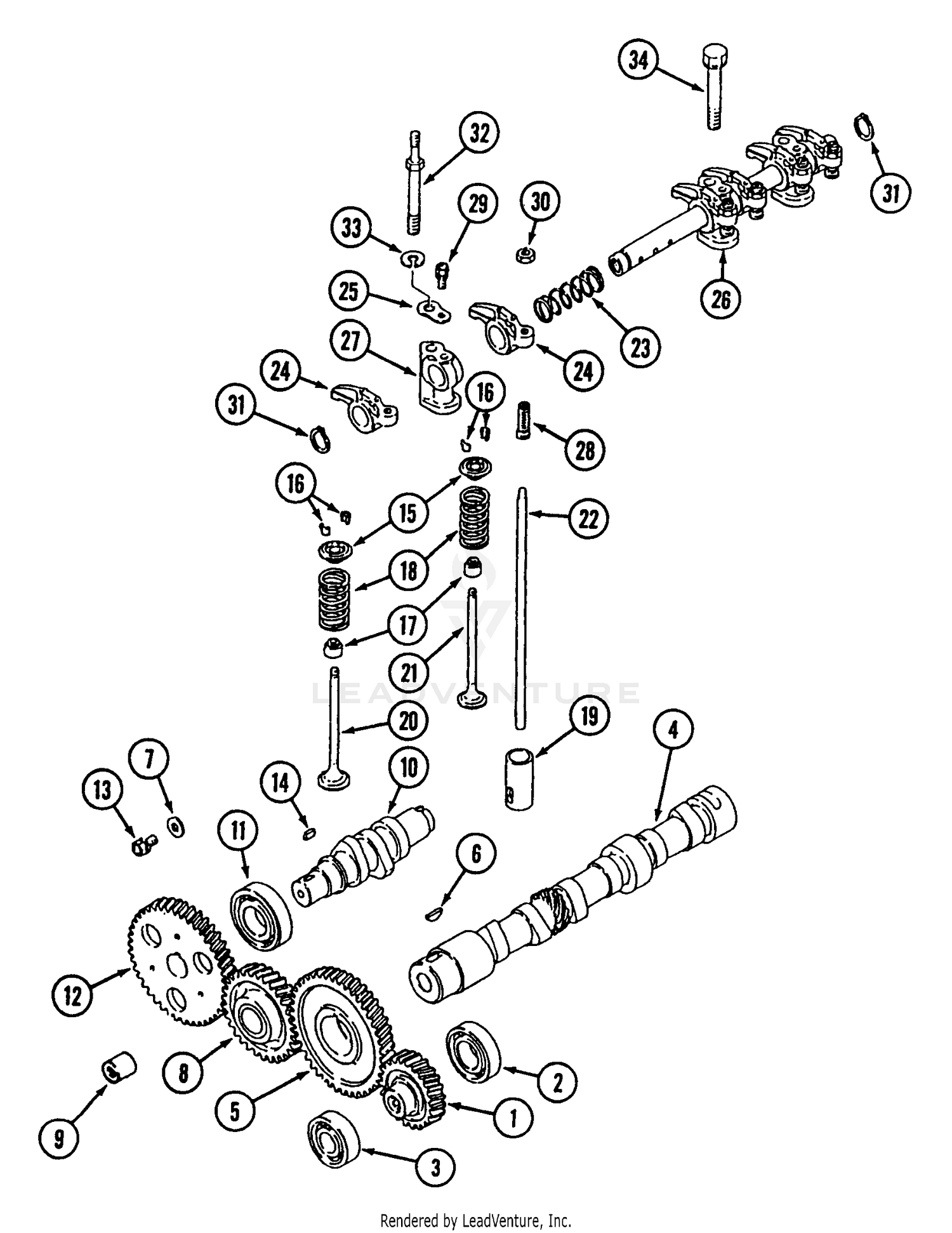

Timing Parts
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MA-30A26-00500 | GEAR,OIL PUMP Not Available Price: |
| 2 | MA-30A26-00200 | BEARING.NTN 6205LU Not Available Price: |
| 3 | MA-MD712517 | BEARING NTN 6205C3 Not Available Price: |
| 4 | MA-MM434615 | CAMSHAFT Not Available Price: |
| 5 | MA-MM406722 | GEAR,CAMSHAFT Not Available Price: |
| 6 | MA-MF476215 | KEY Not Available Price: |
| 7 | MA-MD000425 | WASHER Not Available Price: |
| 8 | MA-MM408908 | GEAR Not Available Price: |
| 9 | None | Bushing, Idler Gear |
| 10 | 93-9152 | DISCONTINUED Price: Call Us |
| 10 | MA-MM431415 | CAMSHAFT, INJ. PUMP Not Available Price: |
| 11 | 98-9997 | SEAL KIT Price: $153.65 |
| 11 | MA-MD703856 | BEARING NSK62/128 Not Available Price: |
| 12 | MA-MM406685 | GEAR-INJ PUMP CAM Not Available Price: |
| 14 | MA-MF476018 | KEY Not Available Price: |
| 15 | MA-MD016482 | RETAINER Not Available Price: |
| 16 | MA-MD016483 | LOCK Not Available Price: |
| 17 | MA-MD115472 | Seal, Valve Stem Price: $11.43 |
| 18 | MA-MM402381 | SPRING Not Available Price: |
| 19 | MA-31A05-00300 | TAPPET Not Available This part replaces MA-MM402737. Price: |
| 20 | MA-30A04-04200 | VALVE,INTAKE Not Available This part replaces MA-MM433590. Price: |
| 21 | MA-MM433591 | EXHAUST VALVE Not Available Price: |
| 22 | MA-MM408920 | ROD Not Available Price: |
| 23 | MA-MD000963 | SPRING Not Available Price: |
| 24 | MA-MM406732 | ARM ROCKER Not Available Price: |
| 25 | MA-MM406745 | WASHER Not Available Price: |
| 26 | MA-MM408935 | SHAFT Not Available Price: |
| 27 | MA-MM314770 | STAY Not Available Price: |
| 28 | MA-K7231220 | SCREW Not Available Price: |
| 30 | MA-A3030110003 | NUT Not Available This part replaces MA-MF430726. Price: |
| 31 | MA-07400001900 | SNAP RING Not Available This part replaces MA-MF522010. Price: |
| 32 | MA-MM408950 | BOLT Not Available Price: |
| 33 | MA-A3600101002 | WASHER,SPRING Not Available This part replaces MA-MF450406. Price: |
| 502172003 | 502172004 | STARTER HOUSING This part replaces 502172003. Price: $39.99 |
| 502172101 | 502172101 | Air Conducttor Price: $9.76 |
| 502172301 | 502282001 | DECAL This part replaces 502172301. Price: $3.99 |
| 502172802 | 502172802 | SPRING Price: $19.99 |
| 502263001 | 502172209 | STARTER ASSY. This part replaces 502263001. Price: $84.99 |
| 502272001 | 502272001 | Nut Price: $2.28 |
| 502273801 | 502273801 | Price: Call Us |
| 503200210 | 503200710 | SCREW M5 X 10 This part replaces 503200210. Price: $4.99 |
| 503200216 | 503200216 | SCREW Price: $3.99 |
| 503543901 | 503543901 | STARTER HANDLE Price: $9.99 |
| 505305125 | 505305125 | STARTER ROPE Price: $7.99 |
| 729222301 | 729222301 | SCREW CSK B4X8 Price: $1.99 |
