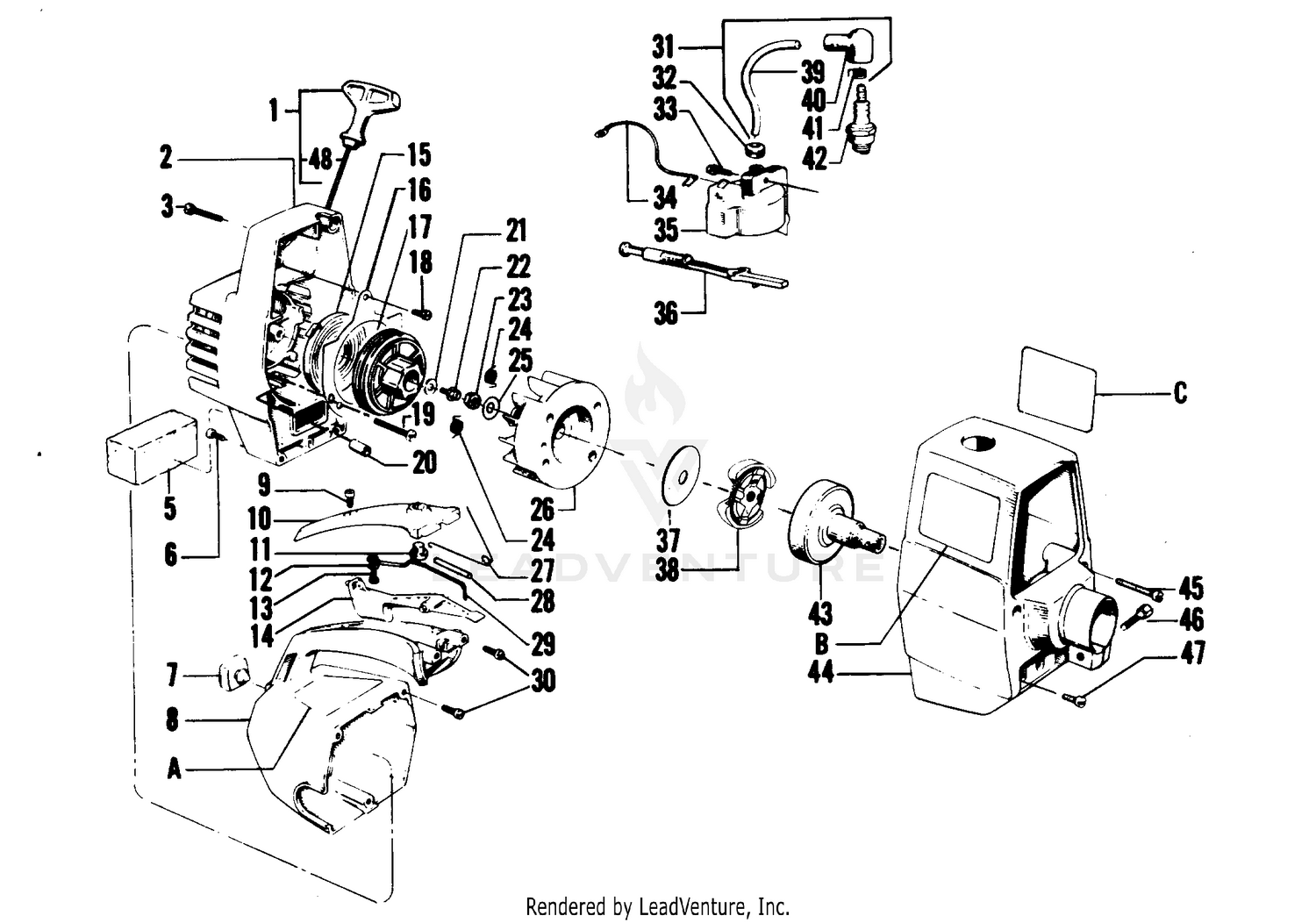

| Ref | Part Number | Description |
|---|
| A |
530025256 |
Decal - Starting Instructions Price: $3.33 |
| B |
530025159 |
Decal - Shroud (Right) (Not a serviceable part) Price: $3.33 |
| 1 |
18-0630 |
DISCONTINUED Price: Call Us |
| 2 |
3272-9 |
PIN-COTTER Price: $0.20 |
| 2 |
530069178 |
Fan Housing Kit (Inc. 16, 18, 19, 20, 28) - See Service Ref. 6 Price: $39.99 |
| 3 |
18-0760 |
DISCONTINUED Price: Call Us |
| 3 |
530015583 |
Screw - 10 - 24 x 1-1/2 - Sems - Fan Hsg. - Top Price: $1.99 |
| 4 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
530024371 |
Air Filter Price: $2.99 |
| 6 |
18-1270 |
DISCONTINUED Price: Call Us |
| 6 |
530015582 |
Screw - 10 - 24 x 5/8 - Fan Hsg. - Bottom Price: $1.99 |
| 7 |
32140-32 |
SCREW-HH Price: $1.19 |
| 7 |
530024436 |
Bumper -Fuel Tank Housing Price: $1.99 |
| 8 |
18-0750 |
DISCONTINUED Price: Call Us |
| 8 |
530024656 |
Handle & Fuel Tank Housing Price: $3.33 |
| 9 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 9 |
530015247 |
Screw - 8 - 16 x 3/4 - Pan Hd. - Handle Cover Price: $1.99 |
| 10 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 10 |
530024661 |
Handle Cover Price: $3.33 |
| 11 |
18-0560 |
DISCONTINUED Price: Call Us |
| 11 |
530026679 |
Button - Kill Switch Price: $3.33 |
| 12 |
18-0770 |
DISCONTINUED Price: Call Us |
| 12 |
530015412 |
Washer - Kill Switch Price: $3.33 |
| 13 |
322-2 |
SCREW-HH Price: $0.69 |
| 13 |
530015407 |
Screw - 8 - 16 x 3/8 - Pan Hd. - Kill Switch Price: $0.56 |
| 14 |
322-1 |
SCREW-HH Price: $0.22 |
| 14 |
530024365 |
Trigger - Throttle Price: $3.33 |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
18-3230 |
DISCONTINUED Price: Call Us |
| 16 |
530026035 |
Air Baffle - See Service Ref. 6 Price: $2.99 |
| 17 |
66-6140 |
DECAL This part replaces 18-2180. Price: $25.48 |
| 18 |
19-6060 |
DISCONTINUED Price: Call Us |
| 18 |
530015373 |
Screw - #10 x 1/4 - Fil. Hd. - Air Baffle - See Service Ref. 6. Price: $0.04 |
| 19 |
19-2970 |
DISCONTINUED Price: Call Us |
| 19 |
530015305 |
Screw - 10 - 24 x 1-3/16 Fil. Hd. - Air Baffle See Service Ref. 6. Price: $1.99 |
| 20 |
18-1290 |
DISCONTINUED Price: Call Us |
| 20 |
530026122 |
Spacer Price: $1.99 |
| 21 |
3218-1 |
NUT-JAM Price: $1.29 |
| 21 |
530015123 |
Washer - Starter Pulley Price: $1.99 |
| 22 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 22 |
530015479 |
Screw - #10 - 3/4 - Hex Washer Hd. - Starter Pulley Price: $3.99 |
| 23 |
530626605 |
Nut - Flywheel - 5/16 x 24 Price: $1.99 |
| 24 |
530023817 |
Spring-Starter Dog This part replaces 530042059. Price: $1.99 |
| 25 |
530015127 |
Washer - Flywheel Price: $1.99 |
| 26 |
530039114 |
Flywheel Assembly (Inc. #24) Price: Call Us |
| 27 |
530024461 |
Trigger Spring Price: $2.99 |
| 28 |
530021036 |
Insulation - Switch Spring Price: $3.33 |
| 29 |
530024407 |
Spring - Kill Switch Price: $1.99 |
| 30 |
530015814 |
Screw-Line Limiter This part replaces 530015367. Price: $1.99 |
| 31 |
502039103 |
High Tension - Lead Assembly (Incl. #17, 18 & 19) Price: $219.99 |
| 32 |
530024435 |
Grommet - Plug Wire Price: $1.99 |
| 33 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 34 |
530024158 |
Lead Wire Switch Price: $4.99 |
| 35 |
530069181 |
Kit - Ignition Module Price: $3.33 |
| 36 |
530024303 |
Knob - Choke Price: $5.99 |
| 37 |
530069196 |
Kit - Clutch - Washer - See Service Ref. 5 Price: $3.33 |
| 39 |
530039082 |
High Tension Lead Wire Price: Call Us |
| 40 |
530003934 |
Boot - Spark Plug Price: Call Us |
| 41 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 42 |
530030077 |
Spark Plug Price: $2.27 |
| 43 |
530010797 |
Coupling and Bearing Assembly Price: $3.33 |
| 44 |
530011778 |
Shroud Price: $3.33 |
| 45 |
530015376 |
Screw - 10 - 24 x 1-1/3 Fil. Hd. - Shroud (Top) Price: $3.33 |
| 46 |
530093802 |
Bolt - Pinch Clamp Price: $3.13 |
| 47 |
530015168 |
Screw - 10 - 24 x 5/8 - Fil. Hd. - Shroud (Bottom) Price: $1.46 |
| 48 |
530022290 |
Rope (3.5 ft.) Price: $0.28 |
| 530039103 |
HIGH |
TENSION LEAD NLA Price: Call Us 530039103 |
