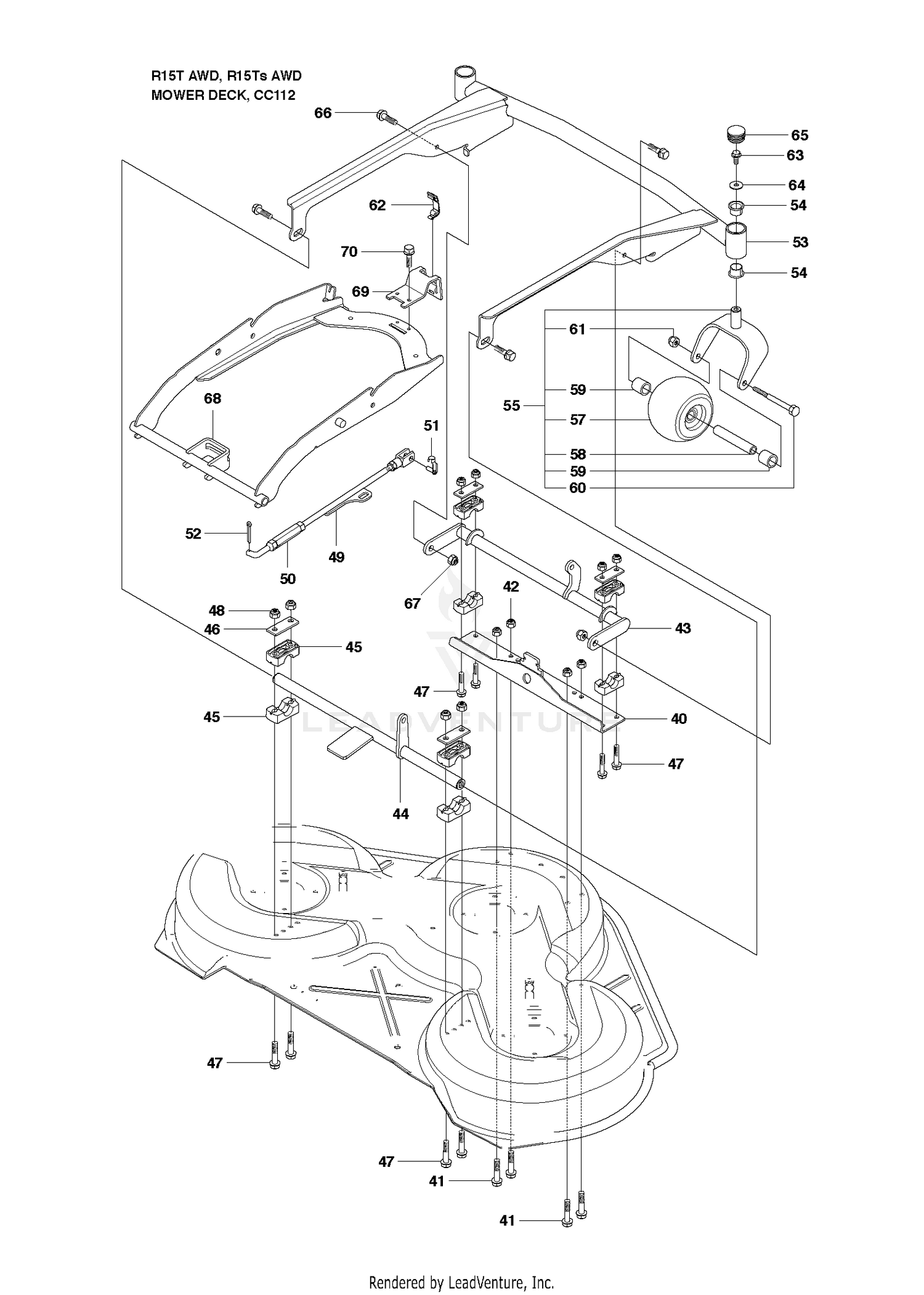

MOWER DECK / CUTTING DECK
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 40 | 523095301 | BRACKET Price: $64.99 |
| 41 | 725245171 | SCREW Price: $2.08 |
| 42 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 44 | 523094503 | CROSS BAR Price: $59.99 |
| 45 | 506869601 | BEARING Price: $8.99 |
| 46 | 506813801 | PLATE Price: $5.99 |
| 47 | 725246151 | BOLT Price: $4.99 |
| 48 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 49 | 523114201 | PARALLELL ROD ASSY Price: $49.99 |
| 50 | 502642301 | PARALLEL ROD Price: $12.99 |
| 51 | 506839802 | JOINT CPL This part replaces 506839801. Price: $19.99 |
| 52 | 721618301 | Split Pin Price: $1.99 |
| 53 | 523086507 | DECK FRAME WELDING ASSY This part replaces 523086503. Price: $169.99 |
| 54 | 574561901 | BEARING Price: $5.99 |
| 55 | 596316403 | PIVOT WHEEL ASSY BEARING SLEEV This part replaces 574210101. Price: $64.99 |
| 57 | 506963001 | DECK ROLLER, FRONT Price: $54.99 |
| 58 | 506810802 | PIPE Price: $7.99 |
| 59 | 506874102 | SPACER Price: $5.99 |
| 60 | 725251951 | BOLT Price: $9.99 |
| 61 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 62 | 503894703 | CLIP GRAY Price: $9.99 |
| 63 | 506570104 | BOLT Price: $4.99 |
| 64 | 734116441 | SPACER Price: $3.99 |
| 65 | 574034801 | PLUG Price: $3.99 |
| 66 | 506597401 | BOLT Price: $5.99 |
| 67 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 68 | 523087501 | DECK ATTACHMENT Price: $119.99 |
| 69 | 523114601 | LOCK Price: $9.99 |
| 70 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
