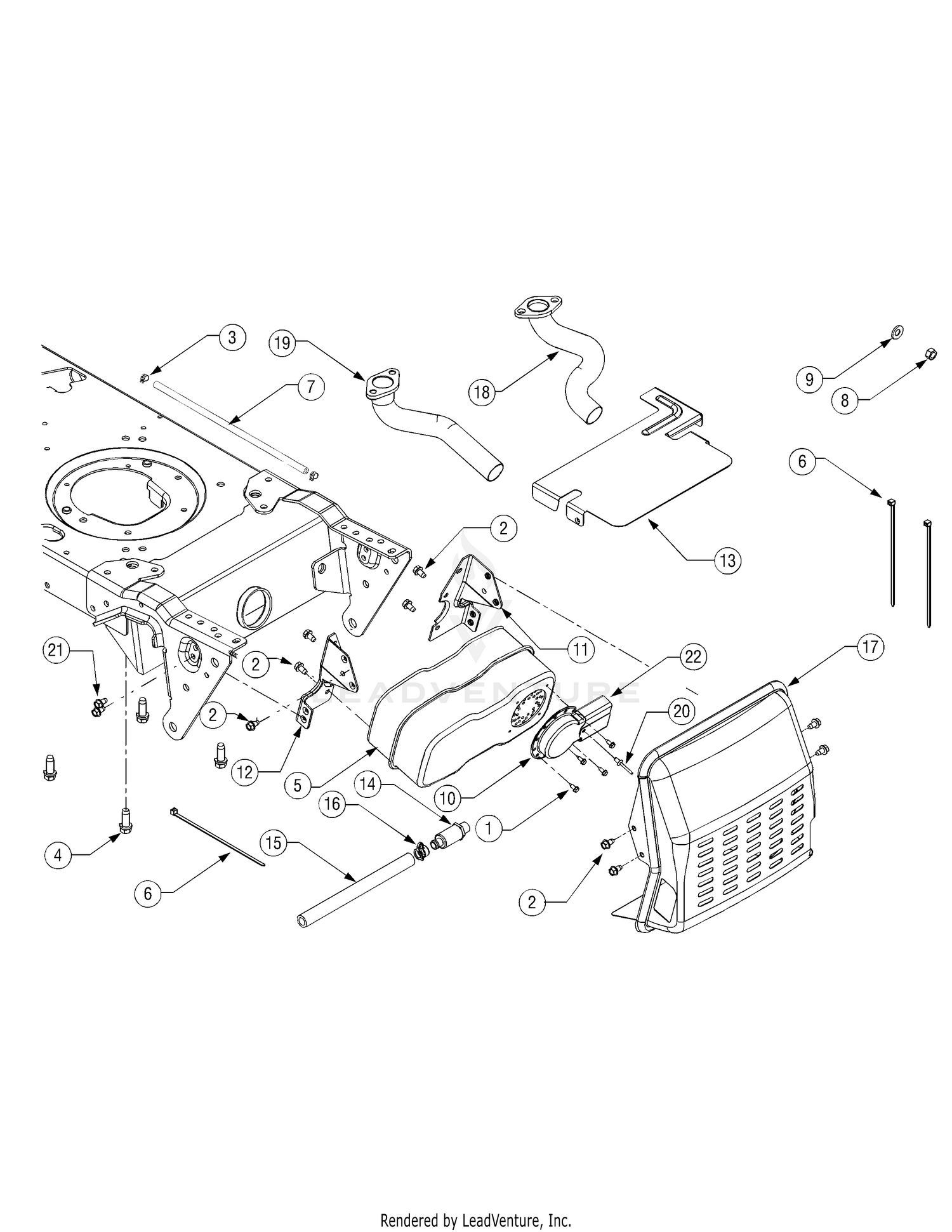

| Ref | Part Number | Description |
|---|
| 1 |
710-0227 |
Screw, #8-18, 0.500 Price: $3.90 |
| 2 |
710-0599 |
Screw, Hex, 1/4-20, 0.500 Price: $3.86 |
| 3 |
726-0205 |
Clamp Price: $3.71 |
| 4 |
710-0654A |
Screw, Hex, 3/8-16 x 1.00 Price: $3.75 |
| 5 |
951-10161 |
MUFFLER (DUAL INLET) This part replaces 751-10161. Price: $75.84 |
| 6 |
725-0157 |
Cable, Tie, 3/16 x.05 x 7.4 Price: $3.46 |
| 7 |
751-10349 |
Fuel Hose, Low Permeation Price: $8.11 |
| 8 |
712-3005 |
Hex Flange Nut, 3/8-16 Price: $5.99 |
| 9 |
736-0300 |
Lock Washer,.406 x.875 x.059 Price: $3.93 |
| 10 |
751-0564B |
Deflector, Muffler Price: $12.14 |
| 11 |
783-04573 |
Muffler Bracket, LH Not Available Price: |
| 12 |
783-04574 |
MUFFLER BRACKET(RH) Not Available Price: |
| 13 |
783-04783A |
HEAT SHIELD Not Available This part replaces 783-04783. Price: |
| 14 |
951-10517A |
Oil Drain This part replaces 751-3140. Price: $22.67 |
| 15 |
751-3141-14 |
Oil Drain, Extension Hose This part replaces 751-3141. Price: $10.40 |
| 16 |
751-3142 |
Cap, Oil Drain Price: $3.81 |
| 17 |
683-04256-0637 |
Muffler Shield This part replaces 683-04256. Price: $51.71 |
| 18 |
751-10007 |
Pipe, Exhaust, LH Price: $195.86 |
| 19 |
751-10006 |
Pipe, Exhaust, RH Price: $134.29 |
| 20 |
728-04000 |
Rivet, Pop,.188 x.325 Price: $5.99 |
| 21 |
710-0642 |
Screw, Hex, 1/4-20, 0.750 Price: $4.05 |
